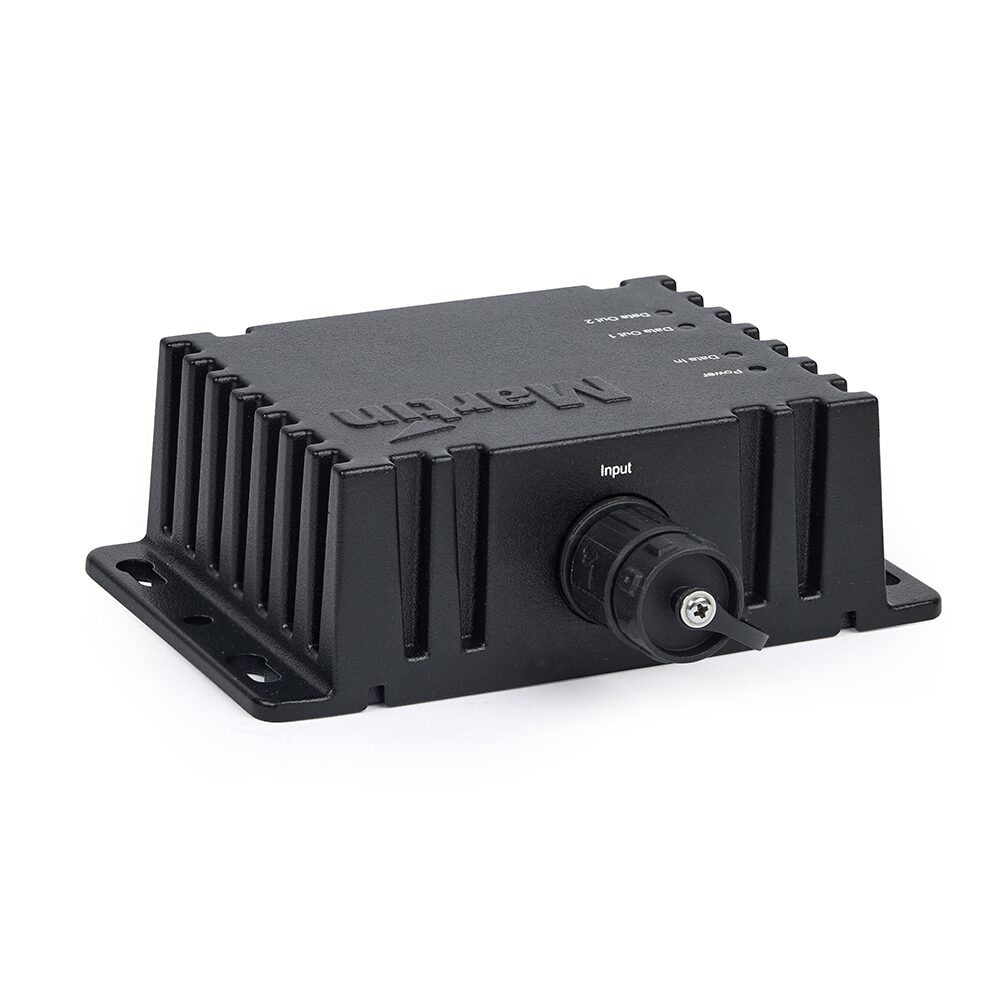

The Martin DCE DataSplitterBooster IP is an indoor/outdoor power+data splitter for Martin Creative LED fixtures that is ideal for rental and install applications. It can be used to split a power+data chain, which started at a P3 PowerPort, in two branches to facilitate easier cabling. Additionally, it can be used to extend the range of a power+data chain, allowing fixtures to be placed further away from the P3 PowerPort. The DCE DataSplitterBooster IP is powered by the P3 PowerPort and hence, does not require separate power input. It is fitted with DCE connectors for easy deployment and can be wall- or truss-mounted.

Features

  • Indoor/outdoor power+data splitter unit for Martin Creative LED fixtures
  • Suitable for rental and install applications
  • Can be used to split DCE power+data chain in two branches
  • Can be used to extend range of power+data chain (fixtures further away from P3 PowerPort)
  • Powered via DCE input from P3 PowerPort
  • Fitted with DCE connectors for easy deployment
  • Can be truss or wall-mounted
  • IP66 rated

Additional information

Physical

Width: 124.0 mm (4.9 in.)
Height: 40.0 mm (1.6 in.)
Depth: 124.0 mm (4.9 in.)
Weight: 0.5 kg (1.1 lbs.)
Data Interfaces

Control Protocols: P3, sACN, Art-Net and RDM over Art-Net
Protocol Detection: Automatic
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2018
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver IN: 100Mbit
Ethernet Transceiver OUT 1-2: 100Mbit
Firmware Update: not applicable
Data Splitting & Boosting Functionality

Split: Split a DCE line in two branches
Boost: Extend maximum cable length between two devices from 90 m to 2x 90 m
Power Splitting & Boosting Functionality

Split: Passive split of DCE 48 VDC input in two branches
Boost: None, system power limitations still apply
Control/User Interface External

Power Status: 1x Green LED
Ethernet In Status: 1x Amber LED
Ethernet Out Status 1-2: 2x Amber LED
Construction

Color: Matte Black
Housing Material: Aluminium

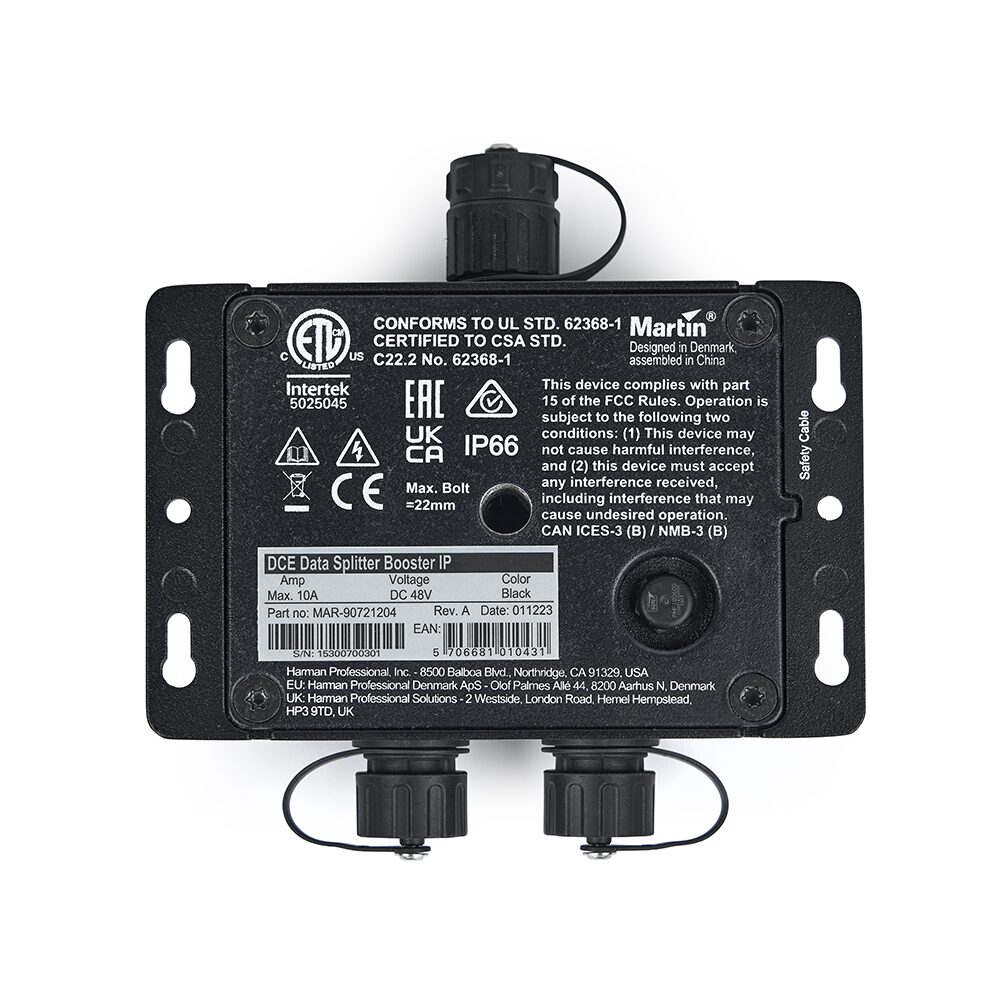

Protection Rating: IP 66
NEMA Enclosure Rating: Type 3
Impact Resistance: IK 08
Corrosion Resistance: ISO 12944-6: 2018; C5 High, Test regime ISO 9227, 1440h
Vibration resistance: 1.0g Sinusoidal (IEC 60068-2-6) and 0.7g RMS Random (IEC 60068-2-64)
Installation

Orientation: Any
Wallmount: Flanges for installation on flat surface

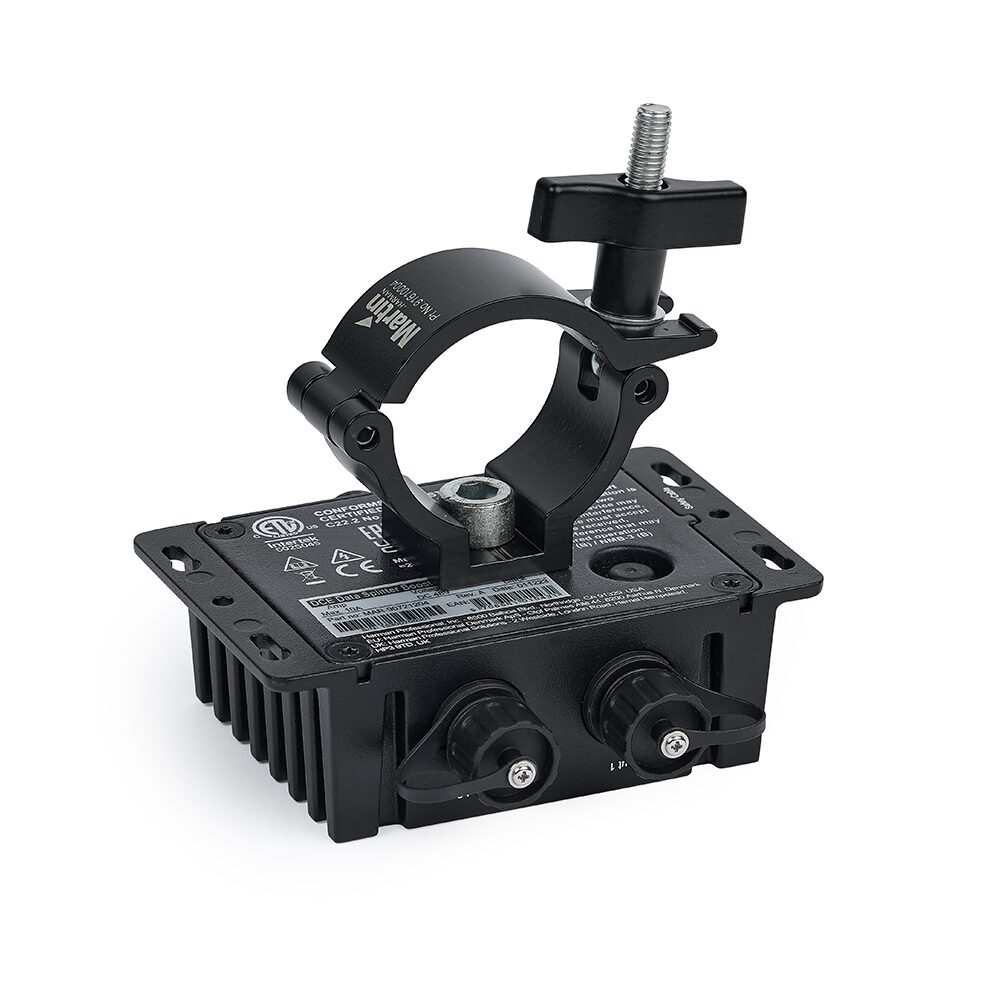

Trussmount: Using half-coupler clamp in M10 threaded hole, max. bolt length 20 mm
Location: indoor or permanent outdoor
Connections

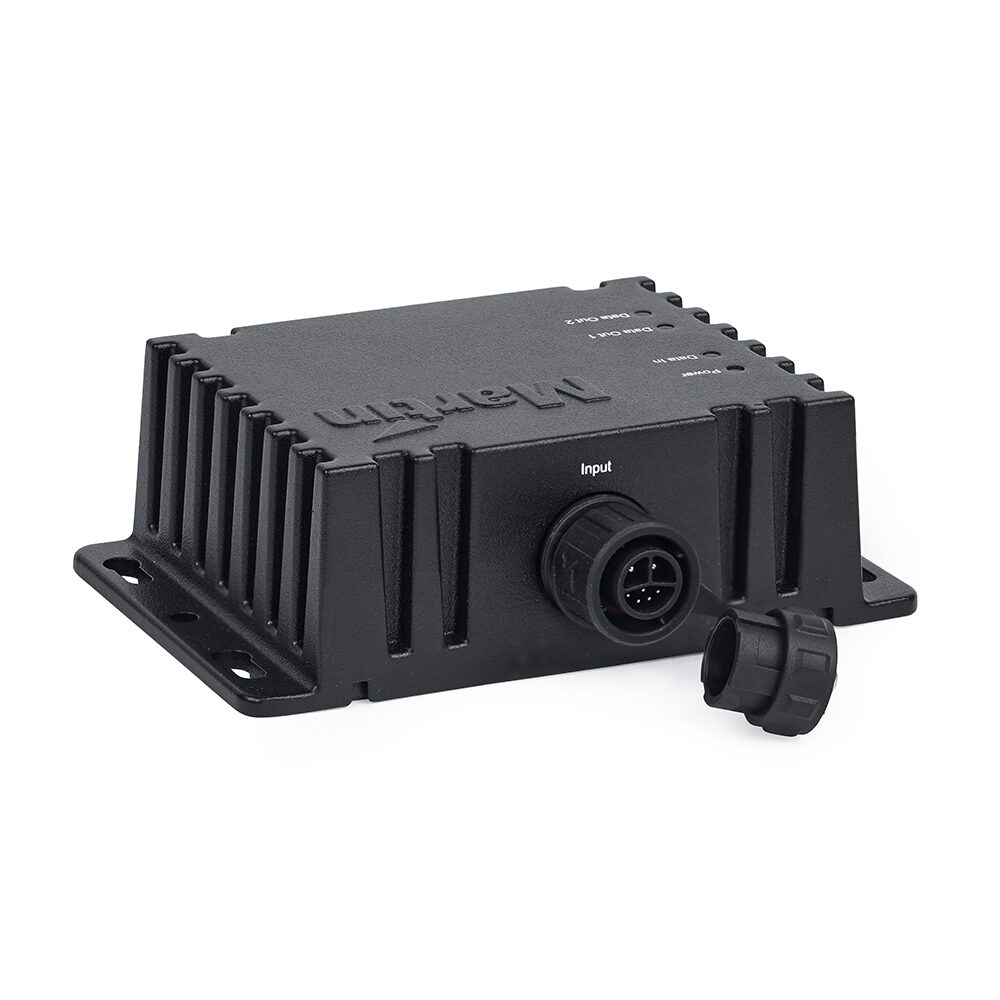

DC Power and Network input: 1x chassis-mount DCE hybrid connector (7pin)
DC Power and Network output: 2x chassis-mount DCE hybrid connector (7pin)
Max. distance between source (P3 PowerPort) or previous fixture and DCE DataSplitterBooster IP: 90 m
Max. distance between DCE DataSplitterBooster IP and following fixture or next DCE DataSplitterBooster IP: 90 m
Max. number of units in a daisy-chain: Unlimited, unless limited by power consumption
Surge protection: 4 KV
All connections hot plugging compatible
Electrical

Nominal Input Voltage: 48 VDC +/- 10%
Power Supply Options: Martin P3 PowerPort 2000, Martin P3 PowerPort 500 IP Rental, Martin P3 PowerPort 500 IP Install, Martin DCE PSU 240 IP or generic 48 VDC PSU
Power Consumption
Typical: 0.5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Thermal

Cooling: Convection
Maximum Ambient Temperature (Ta max): 55° C (131° F)
Minimum Ambient Temperature (Ta min): -30° C (-22° F)
Maximum Surface Temperature, steady state, at 40° C ambient: 55° C (131° F)
Typical Heat Dissipation (calculated, +/- 10%): 2 BTU/hr.
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inlay and outer packaging
Approvals

Global CB Certification/IECEE: IEC 62368-1
EU safety: EN 62368-1
EU EMC: EN 55032, EN55035, EN 61000-3-2, EN 61000-3-3
US safety: UL 62368-1
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 62368-1
Canadian EMC: ICES-003 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Compatible Fixtures

Exterior Dot-1 Pro (via Exterior DC-Feeder)
Exterior Dot-4 Pro (via Exterior DC-Feeder)
Exterior Dot-9 Pro (via Exterior DC-Feeder)
Exterior Dot-HP Pro
Included Items

1x Multi-Language Safety & Installation Manual
