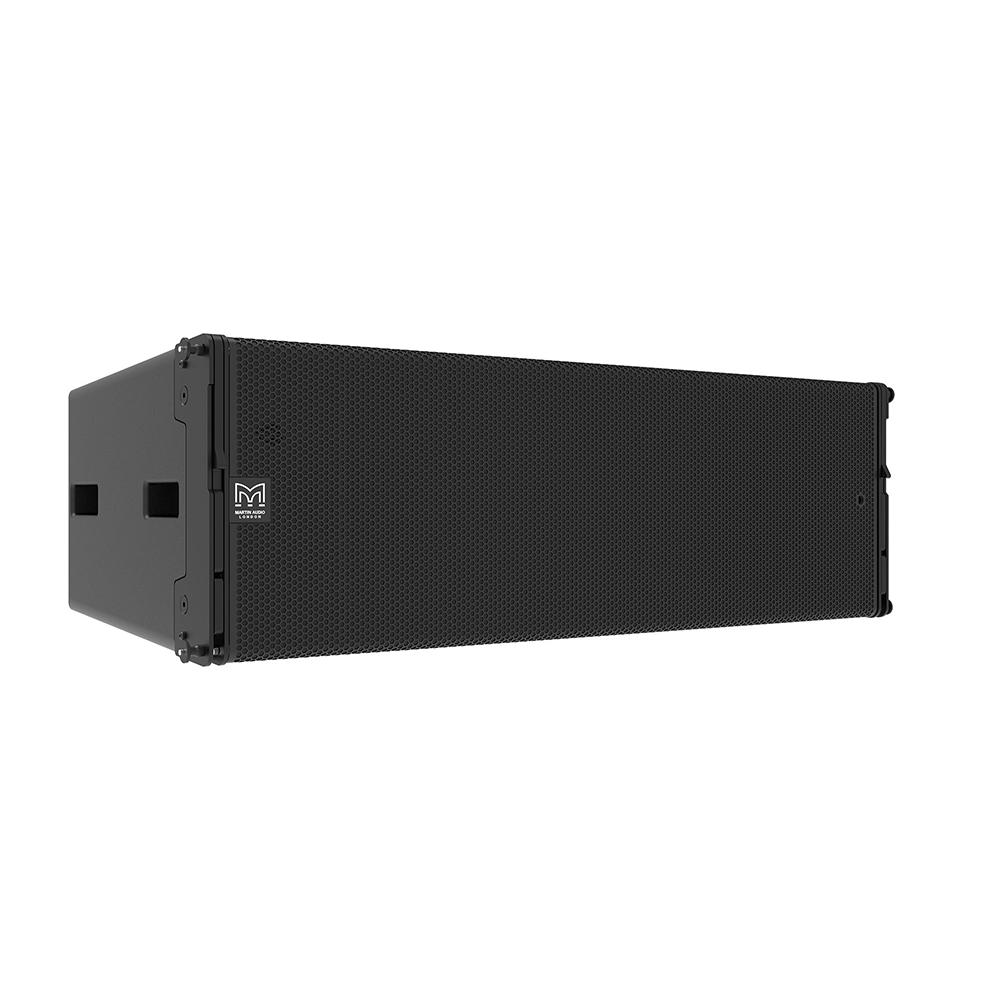

Martin-Audio-WPL-Front-RightMartin-Audio-WPL-Front-Right

Martin Audio – WPL

Martin Audio

2 x 12″ Bi-amp Three-way Line Array

  • 3-way bi-amp, 2 x 12” large format line array
  • All-horn, maximum-efficiency design
  • Exceptional signature sonic performance
  • Exemplary 90° horizontal constant directivity pattern control
  • External, dedicated, multi-channel Class D amplification
  • Scalable resolution for flexible optimisation of coverage, consistency and control
  • Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
  • Fast, integral 3-point rigging for up to 24 enclosures
  • Compact and light weight design with discreet side handles for ease of handling
SKU: MARWPL Categories: , , ,

Description

WPL is a 3-way, bi-amped, large-format line array with dual 12” LF, scalable resolution optimisation, and the ability to deliver stadium-level and large festival output with extraordinary control.

At just 64kg [116lbs] its power output to weight relationship provides additional efficiency in trucking space and speed of deployment.

WPL systems are designed to withstand tougher environmental conditions, feature LED circuit visibility, and from Q3 2026, will enjoy blazing-fast DISPLAY 3 optimisation software with enhanced LF control.

If fidelity, precision and ROI matters, this is the moment to choose WPL.

Benefits

  • Consistent coverage achieved ‘straight-out-of-the-box’
  • DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
  • Improved audience coverage with reduced sound-spill

Applications

  • Touring sound reinforcement for festivals, stadiums and arenas
  • Sports stadium and arena installations
  • Concert hall and HoW installations

Additional information

Type

Three-way, bi-amp line array element
Frequency Response

52Hz-18kHz ± 3dB

Measured on-axis in open (4pi) space at 2 metres, then referred to 1 metre.
Drivers

LF: 2 x 12” (300mm)/3” (75mm) voice coil, ultra-long excursion, neodymium magnet drivers, Hybrid® bass horn loaded
MF: 2 x 6.5” (165mm)/2” (50mm) coil, neodymium magnet drivers, horn loaded
HF: 3 x 1” (25mm) exit neodymium magnet compression drivers, horn loaded
System Amplifier

iKON iK42
System Resolution

1 or 2 enclosures per pair of amplifier channels (Bi-amp)
Rated Power

LF: 800 W AES, 3200 W peak MF/HF: 500 W AES, 2000 W peak

ES Standard ANSI S4.26-1984.
Maximum SPL

LF: 800 W AES, 3200 W peak MF/HF: 500 W AES, 2000 W peak

Calculated at 1 metre with 6dB crest factor.
Nominal Impedance

LF: 8 ohms, MF + HF: 8 ohms
Dispersion

90º horizontal (-6dB), 120º horizontal (-10dB)
Crossover

320Hz active, 4kHz internal passive
Enclosure

Vertical trapezoid with 3.75º wall angle, multi-laminate birch and poplar-ply construction
Finish

Black or white hardwearing paint
Protective Grille

Black or white HEX-perforated steel grille with LED
Environmental Testing

IP 54
MIL-STD-810H
ISO 4892-2 Solar Radiation
ISO 12944-6 Category C3 Corrosion resistance

https://martin-audio.com/environmentaltesting
Connectors

2 x NL4 type
Fittings

3-point rigging system 4 x side pocket handles
Flown Array Maximum

24 enclosures in single array
Dimensions (Ex. Pins)

(W) 1136mm x (H) 371mm x (D) 526mm
(W) 44.7in x (H) 14.6in x (D) 20.7in
Weight

64kg (141lbs)
Accessories

Touring flying frame
Install flying frame
Dolly for 4 enclosures
Ground stack outrigger
Flying Pin
