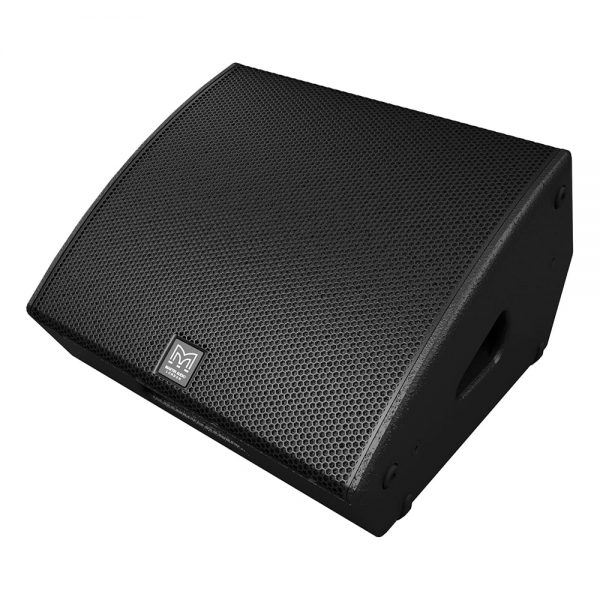

Martin Audio - LE200 Stage Monitors Front leftMartin Audio - LE200 Stage Monitors Front left

Martin Audio – LE200

Martin Audio

15″ Passive Coaxial Differential Dispersion Stage Monitor

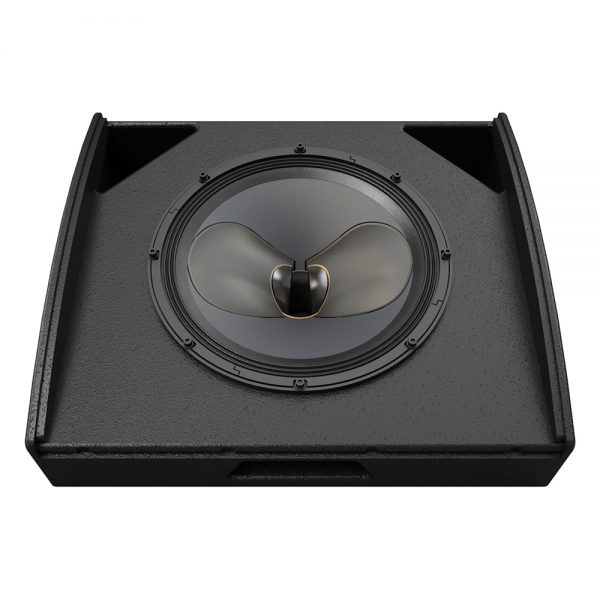

Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.

Features

  • Compact, two-way stage monitor
  • Coaxial ‘point-source’ performance
  • Differential Dispersion™ technology for consistent coverage
  • Defined, near-rectangular coverage plane at head-height
  • Switchable active/passive operation
  • Low-profile plywood enclosure
  • M8 rigging inserts
  • Multiple connectors for flexible deployment
SKU: MARLE200 Categories: , , ,

Description

Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage plane at head-height.

The LE200 enclosure is constructed from durable plywood, features integral ergonomic handles, and is finished with a hard-wearing, black textured paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet prevent movement onstage and protect against scratches to the base of the monitor.

Switchable between bi-amp and passive operation, the LE200 incorporates an internal 1.6kHz passive crossover and four NL4 connectors located to suit a variety of user requirements. Compact and easy to manoeuvre, its exceptional performance, high output and consistent coverage makes the LE200 the definitive, affordable professional monitor for a wide range of applications.

Additional information

Weight 26 kg
Type

Two-way, bi-amp/passive Coaxial Differential Dispersion

Frequency Response

68Hz-18kHz ± 3dB,
-10dB @ 50Hz

Measured in half (2pi) space at 2 metres with 1 watt input, using band limited pink noise, then referred to 1 metre.

Drivers

LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver

Rated Power

400W AES, 1600W peak

AES Standard ANSI S4.26-1984.

Sensitivity

LF: 100dB, HF: 103dB
Passive: 100dB

Measured in half (2pi) space at 2 metres using band limited pink noise, then referred to 1 metre.

Maximum SPL

133dB peak

Calculated at 1 metre.

Nominal Impedance

LF/FR: 8Ω
HF: 8Ω

Dispersion (-6db)

100°-60° horizontal, 60° vertical

Crossover

1.2kHz active/passive (switchable)

Enclosure

Birch/poplar ply

Finish

Black textured paint

Protective Grille

Black perforated steel with scrim cloth backing

Baffle Angle

30˚

Connectors

4 x NL4 type

Pin Connections

LF/FR: 1+/-
HF: 2+/-

Fittings

2 x pocket handles
Protective rubber feet on base and sides
4 x M8 inserts

Dimensions

(W) 610mm x (H) 364mm x (D) 562mm
(W) 24.0ins x (H) 14.3ins x (D) 22.1ins

Dimensions Incl Feet

(W) 616mm x (H) 367mm x (D) 562mm
(W) 24.2ins x (H) 14.4ins x (D) 22.1ins

Weight

26kg (57.3lbs)
