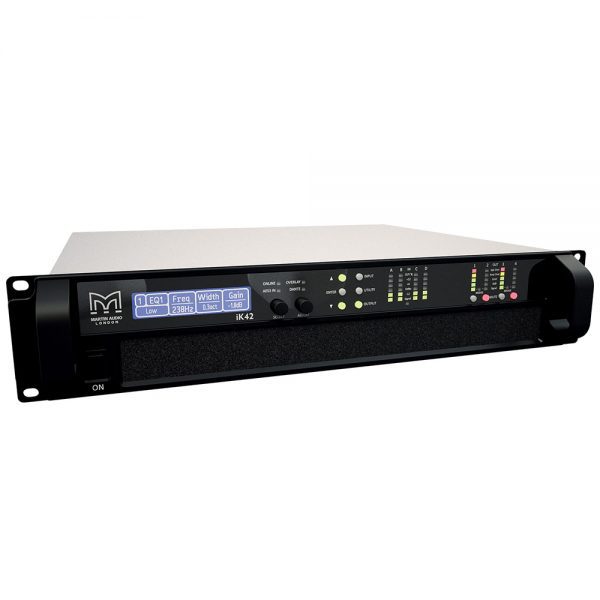

Martin Audio - iKON iK42 4 Channel Amplifier Front face dispalyMartin Audio - iKON iK42 4 Channel Amplifier Front face dispaly

Martin Audio – iKON iK42

Martin Audio

Four-channel 20,000W Class D Power Amplifier

The iKON iK42 is an advanced 4-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for Martin Audio Wavefront Precision line arrays and XE Series stage monitors, the iK42 can also provide multi-channel amplification across the Martin Audio loudspeaker range.

Features

  • Four channels of efficient Class D amplification
  • Very high power density in 2U rack height
  • Up to 20,000 Watts total power output, depending on load impedance
  • High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
  • Switch mode power supply
  • Global mains operation, 85V to 240V auto-sensing
  • Intuitive, user-friendly, front panel interface
  • Analogue, AES3 and Dante™ (AES67 compatible) digital audio network inputs
  • Ethernet network for system operation, control and monitoring via Martin Audio VU-NET™ software
  • Comprehensive protection and monitoring functions
SKU: IK42-DANTE Categories: , ,

Description

The iK42 can deliver a full 5000 watts per channel into 2Ω with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.

Martin Audio iKON iK42 | High Power, Four-Channel Class D Amplifier
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.

Powerful DSP is fully integrated into the iK42 to provide a multitude of features that ensure maximum performance of performance for XE monitors, TORUS and FlexPoint systems. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in Wavefront Precision line array systems.

The iK42 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.

Additional information

General

Type:Four-channel Class D amplifier

Power Output (*):
5000W into 2Ω
3000W into 4Ω
1500W into 8Ω
750W into 16Ω
10000W bridged per channel pair, 4Ω
6000W bridged per channel pair, 8Ω

CV Line Output (*):
1250W, 25V line
3500W, 70V line
5000W, 100V line

Digital Signal Processing: 96kHz/48kHz DSP on all inputs and outputs

Cooling: Dual vari-speed fans, front-to-back airflow

Maximum Ambient Temperature: 40°C (104°F)

*RMS output power per channel, all channels driven with continuous program material and a nominal ambient temperature of 40degC /105degF.
Audio Inputs/Outputs

Analogue In/Link (4 channels):
4 x female
4 x male Neutrik™ XLR

Analogue Input Impedance: 20kΩ balanced to ground

Maximum Analogue Input Level: +20dBu

AES3 In/Link (2 channels): 1 x female, 1 x male Neutrik™ XLR, balanced

Dante™ (4 channels): 2 x shielded RJ45, primary and secondary

Amplifier Outputs: 4 x Neutrik Speakon™ NL4
Audio Performance

Dynamic Range:
>113dBA, analogue input
>114dBA AES/Dante™ input

Frequency Response: 7Hz-30kHz (‐2.5dB points, 4Ω load)

Total Harmonic Distortion: <0.05% typical @ 1kHz, 4Ω load

Slew Rate: >60V per microsecond

Damping Factor: >800 at amplifier output, ref 8Ω
Control and Monitoring Network

Protocol: Ethernet
Control Application: Martin Audio VU-NET™
Digital Signal Processing

Sample Rate: 96kHz (48kHz for FIR filter implementation)

Physical Inputs:
4 x analogue
2 x AES
4 x Dante™ inputs routable to four DSP drive modules

Drive Module Input DSP:
Input signal routing, delay, gain, HPF, Phase, Mute

EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters

Drive Module Output DSP:
Source, delay, gain, Phase, Mute, crossover filters, limiters
EQ: low shelf, 8 x PEQ / band pass and shelving filters
Power Supply

Type: High performance Series Resonant

AC Input Operating Range: 85 – 240V ~ AC, 47 – 63Hz

Mains Inrush Current: 6A at 115V, 12A at 230V (max for <10ms)

Mains Connector: Neutrik 32A Powercon™
Dimensions

Dimensions:
(W) 482 x (H) 2U/88mm x (D) 441mm
(W) 18.98in x (H) 2U/3.46in x (D) 17.35in
(incl handles and optional rear support)

Weight: 12.5kg (27.5lbs)
