MA Lighting – grandMA3 extension

MA Lighting

The grandMA3 extension offers 60 customizable playbacks, motorized faders, and remote connectivity, making it ideal for follow spots, media control, or system expansion.

SKU: MAL4010504 Categories: , , ,

Description

The grandMA3 extension is the perfect solution for remote playbacks on a small footprint and will be remote connected to the grandMA3 full-size, light or replay unit models. The grandMA3 extension can be used for follow spot caller, keylighting board operator, remote media server live calls or just as extension for the grandMA3 full-size, light and replay unit.

It comes with the letterbox screen built-in and will be remote connected via Ethernet for a highly flexible solution. 60 freely configurable playbacks including 15 motorized and RGB backlit faders and 30 RGB backlit rotary encoder plus additional encoders and level wheels add to the flexibility of the grandMA3 system.

Feature Quick View

  • 1 internal letterbox multi-touch screen
  • 2 multipurpose level wheels
  • 2 multipurpose single encoder
  • 30 rotary RGB backlit encoder
  • 15 backlit motorized 60 mm faders
  • 60 separate playbacks
  • 1 etherCON connector
  • Individually backlit and dimmable silent (clickless) keys

Additional information

Weight 11 kg
Parameters

none

Parameters Mode2

not applicable (no Mode2)

Operating voltage/ Supply voltage

AC 100 – 240 V; 50/60 Hz

Power

max. 75VA

Operating Temperature

0 °C up to 40 °C / 32 °F up to 104 °F

Dimensions

409 x 537 x 169 mm / 17 x 22 x 7 in
(width x depth x height)

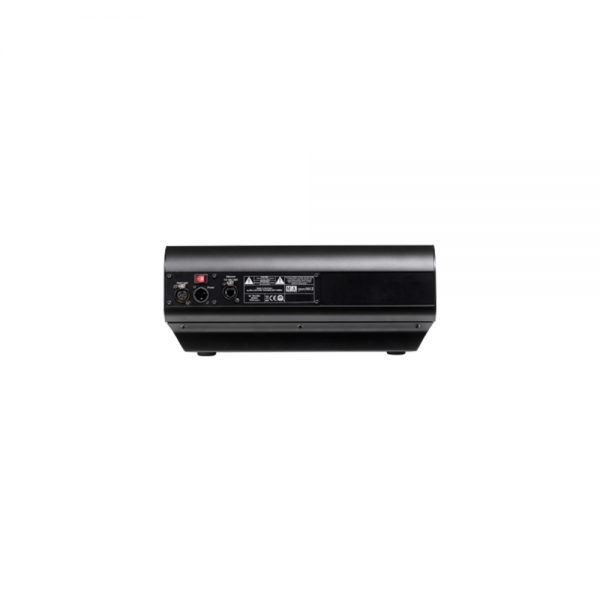

Connectors

1 x powerCON TRUE1
1 x etherCON/RJ45
1 x LED desk light (4pin XLR female)

Downloads

Data Sheet Download
