Description

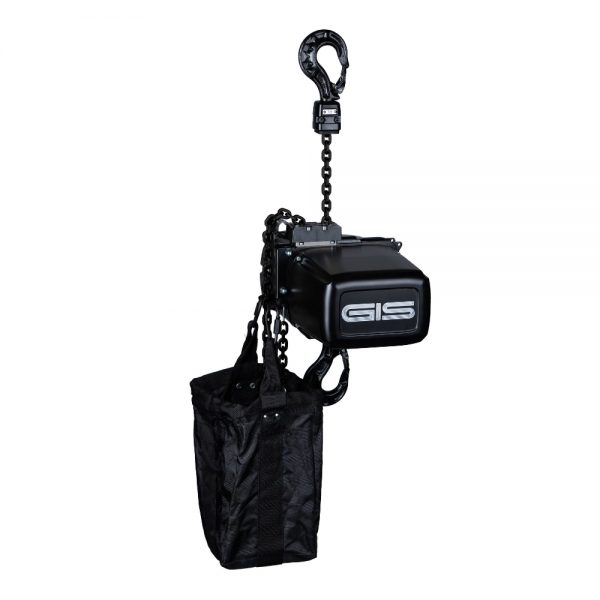

The new LPML250 and LPL500 Series chain hoists are the lightest self weight chain hoists for capacity in there class, making these hoists ideal for production touring and mobile use applications.
The LPML250 has a capacity of 500kg at D8 and has a self weight of just 12kg (plus chain) and the LPL500 ha a capacity of 1000kg at D8 and has a self weight of just 23kg (plus chain). The hoists are also compact in size, with the LPML250 being able to fit into a 300mm square truss and a LPL500 being able to fit into a 400mm square truss.
Maintenance of the hoists is quick and easy, with components easily accessible and quick to change, keeping the hoists in use and keeping the productions on schedule,
GENERAL FEATURES
- Modern, quiet, reliable and proven design, manufacture and assembly mean long life and competitive pricing
- Lightweight
- Maximum Lifting capacities as standard 500kg (LPML250) & 1000kg. (LPL500) can be set for lower capacities if required.
- Standard Chain Lengths 10m, 18m & 24m. Other lengths on request
- Direct control or low voltage control with upper/lower geared electrical limit switches
- Clutch overload device mounted outside the drive train; In the event of clutch problems, the load is not compromised
- Can be used upright- motor up or climbing – motor down applications
- Hook body suspension as standard. Eye body suspension & lower locking chain hooks suspension on request
- Available for 400V, 3Ph 50Hz, or 220V, 3Ph 50Hz power, others on Request
- NEW Profile (square) steel lifting chain carries heavier loads with lower wear, black phosphate protection with high corrosion resistance and better dry running
- IP65 protection class- ideal for outside use, the moisture sensitive components are housed separately
- Polygon connections on shafts and hubs – easier maintenance
- 5 pocket load chain wheel gives smooth running and quieter operation
- Aluminium body – the body is black electrophoretic coated
- Simple, reliable, easy to use and maintain
OPTIONS
- Secondry Brake
- Load Cell for Load Monitoring (LPL500)
- Encoder for position Monitoring (LPL500)
- Different voltages
- 4 Position Geared Limit switch
- Control and Accessories Options, see other products on website under Controls for these options
