Description
THE REGULATIONS
High integrity Hoists prepared for incorporation into BGV C1 hoisting systems. This refers to a German safety regulation for moving loads above people without using a secondary safety component
These hoists allow the following
(when people are present below the load):
Assembly/ disassembly in set up
Load holding when loads are static i.e. when the load is in a fixed position}
Staging processes involving movement
BGV C1 REQUIRES
- Factor of Safety – 10:1. The lifting capacity is de-rated
- 2 separate brakes
- 4 position limit switches – limit switches & emergency limit switches
- Shutdown at 120% of rated load (using loadcell)
- Underload monitoring – (using loadcell)
- Hoists to this regulation are tested and approved by TUV offices in Germany and relevant certifcation issued.
- BGV C1 systems have to be approved on site by an approved theatrical engineer when integration tests are carried out.

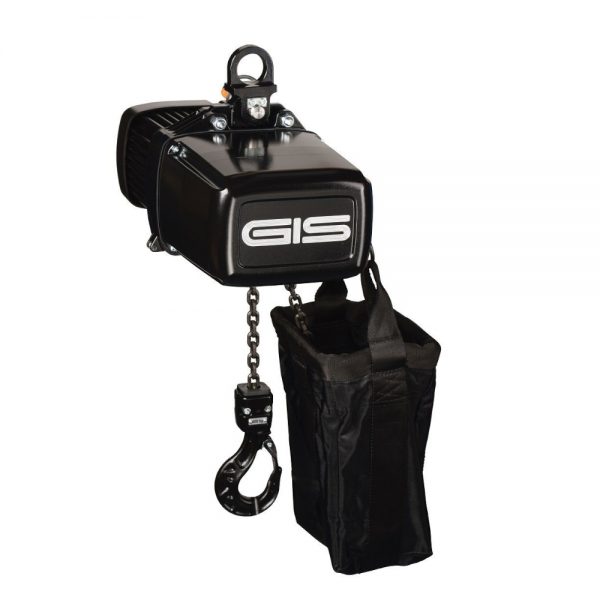

BGV C1 HOISTS FEATURE:
- Modern, quiet, reliable and proven design, manufacture and assembly mean long life and competitive pricing
- Lifting capacities from 400 to 1000kg on one chain fall
- Upper/lower geared electrical limit switches plus emergency switches
- Hoists can be used upright – motor up or climbing – motor down applications
- The hoist is black, chain is black or zinc plated
- Eye or hook suspension with load sensor, output signal 0-10V
- Integration of PLC controller possible, control systems monitor the special features and in the event of any of the safety features being breached- overload, slack chain or emergency limit the entire lifting system shuts down
- Control systems operate with single or variable speeds, using encoders which can monitor the position of hoists and load
FEATURES – NEW LP/LPM HOIST RANGE
- Designed for a higher lifting capacity, this also gives higher duty and longer lifetime hours
- NEW Profle (square) steel lifting chain carries heavier loads with low wear and black phosphate protection
- IP65 Protection class
- Polygon connections on shafts and hubs – easier maintenance
- Aluminium body – black electrophoretic coated
- Simple, reliable, easy to use and maintain
OPTIONAL EXTRAS
- Incremental or absolute encoder on the chain wheel for path measurement
- Temperature monitoring
- Locking hooks
Note – We can build hoists with features to your requirements and to
operate with your control system.
