Description
THE REGULATIONS
Standard hoists that meet current international regulations for rigging hoists to D8 and FEM 9.751 standards.
GENERAL FEATURES
- Modern, quiet, reliable and proven design, manufacture and assembly mean long life and competitive pricing
- Lightweight
- Lifting capacities from 125kg to 5000kg
- Direct control or low voltage control – with upper/lower geared electrical limit switches
- Contactor control – (no electronics)
- Clutch overload device mounted outside the drive train; In the event of clutch problems, the load is not compromised
- Can be used upright- motor up or climbing – motor down
- applications
- Aluminium body – black electrophoretic coated with zinc plated or black chain
- Eye body suspension, hook suspension and locking chain hooks on request
- Available for 400V, 3Ph, or 220V, 1Ph power, others on Request

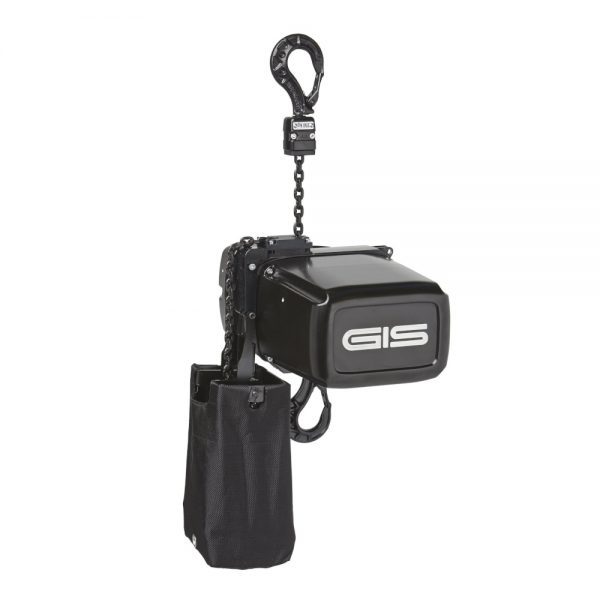

FEATURES – NEW LP/LPM HOIST
- A new hoist from LTM
- Designed for a longer life with heavier duty operation, this can give either a higher lifting capacity (LP500= 800kg) or a normal lifting capacity (LP500= 500kg) for higher duty and longer lifetime hours
- NEW Profle (square) steel lifting chain carries heavier loads with lower wear, black phosphate protection with high corrosion resistance and better dry running
- IP65 protection class- ideal for outside use, the moisture sensitive components are housed separately
- Polygon connections on shafts and hubs – easier maintenance
- 5 pocket load chain wheel gives smooth running and quieter operation
- Aluminium body – the body is black electrophoretic coated
- Opening eye suspension- ideal for installations
- Simple, reliable, easy to use and maintain
OPTIONS
- Extra features allow the hoist to conform to higher safety standards when ordered or later modifed
- These options include second brake, standard and ultimate limit switches, load sensing suspensions and encoders for positional feedback
- Hoists for single phase power
- Locking hooks
- Special paint fnishes
- Flight cases
