Description

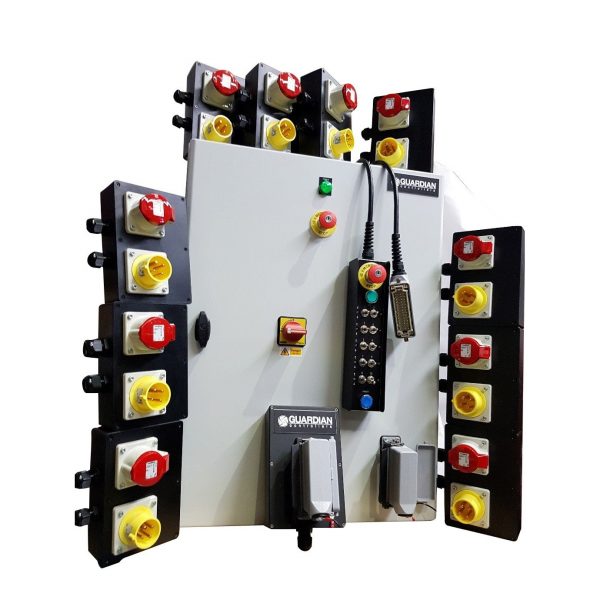

The Guardian Controller Range is a robust automation series of controllers, designed for installation environments. The controllers are constructed in an industrial enclosure, with easy termination points for hoist connections and a hand held pendant for easy operation.
This Guardian Wall mounted Controllers starts at 2 channels up to 16 channels and have options for both low voltage and direct control hoists,
Customised controllers (for example with channels up to 36 ways, PLC control) are also commonly manufactured. With our expert team of control specialists, a variety of solutions can be tailored for chain hoists, winches, stage elevators and any other theatrical machinery element used in today’s modern theatrical performance. Contact our sales team [email protected] for more information
FEATURES
- Power 400V-3Ph-50Hz
- Low Voltage or Direct Control
- Pendant Lead length 10.0m
- Highly robust enclosure protection class IP66
- Pendant connection point on front of panel with robust ILME connector to avoid damage
- Acrylic Stove Black Finish
- Wago push terminal connections for quick and easy termination of cables into main panel
- Front Mounted Isolator and E-stop for easy access if required.
- Quality and robust components from Schneider and Wago for a quality and long lasting control system
- Schneider Safety Relay Fitted as Standard with SIL 3 capability
- CE certifed
