Look Solutions – Viper deLuxe

Look Solutions

The Viper deLuxe combines a powerful fog machine and a fan in a robust flight case. It can be equipped with both the Viper NT and the Viper 2.6. It can be used everywhere where large amounts of fog are needed in the shortest time.

Veiw shop WL products

Consumable, Tools & Extras

Fluid available at Shop WL

Visit Now

SKU: N/A Categories: , , ,
Clear

Description

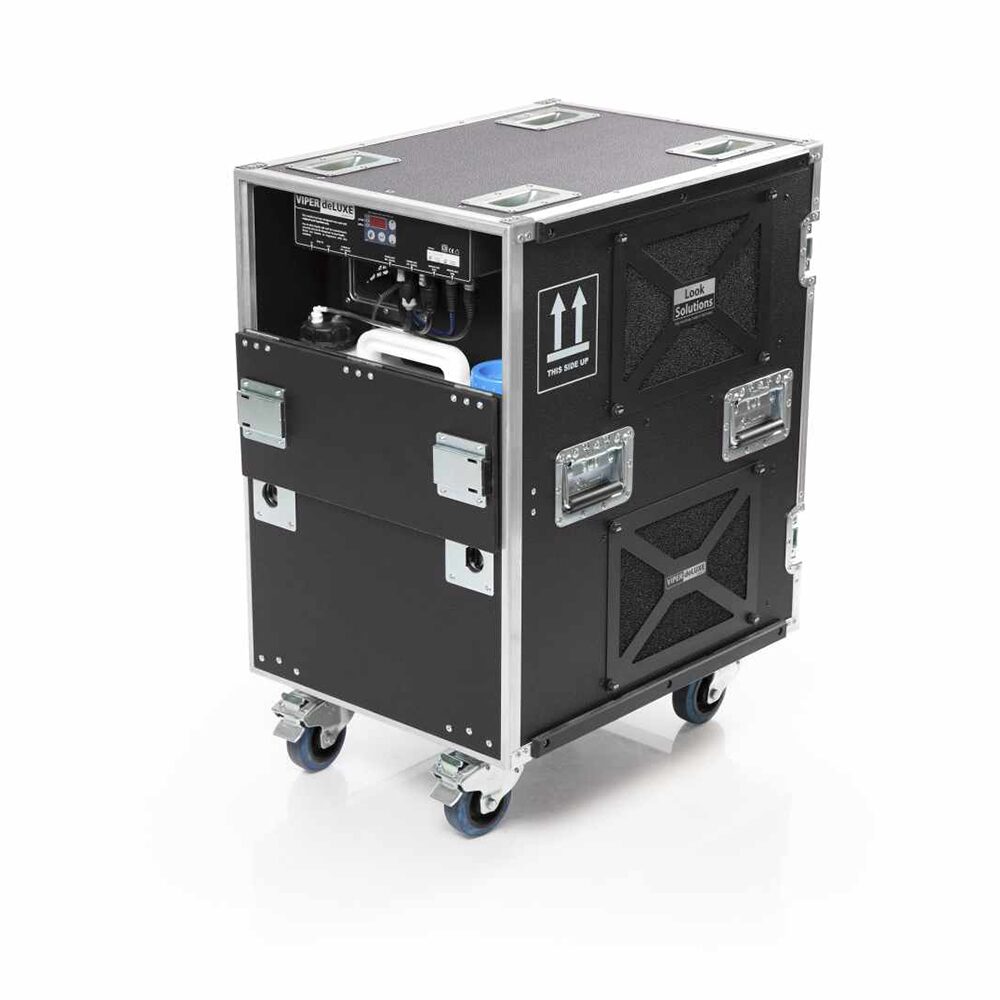

The Viper deLuxe combines a powerful fog machine and a fan in a robust flight case. It can be equipped with both the Viper NT and the Viper 2.6. It can be used everywhere where large amounts of fog are needed in the shortest time. Due to the wide fog output, even larger clubs and halls can be filled with fog.

Thus, the Viper deLuxe is the perfect machine for events, concerts, special effects, theme parcs, for fire fighter and catastrophy trainings and much more. The connected powerful fan increases the output range even more. The airflow can be deflected vertically by an air baffle. To prevent dirt or confetti from entering, the flight case is completely closed. The side filters can be quickly cleaned or changed.

Features

  • Finest adjustments of the output
  • DMX 512 as standard
  • Control panel
  • RDM
  • 20L flat tank
  • Stacking moulds
  • Automatic wheels

Additional information

Weight N/A
Procedure

Vaporizing fog generator
Power requirement

Viper NT: 1300 W Viper, 2.6: 2600 W
Voltage

230 V / 50 Hz
Warm up time

approx. 7 min. (NT) / 12 min., (2.6)
Fluid consumption

NT: 120 ml/min. (max. Output) 35 ml/min. (cont. Output)
2.6: 240 ml/min. (max. Output) 70 ml/min. (cont. Output)
Fluid tank capacity

20 liter
Fog output

adjustable in 99 steps (1% steps)
Output projection

approx. 25 m
Fogging time

approx. 40 sec. at max. output, at < 50% continuous output
Temperature control

Microprocessor controlled
Overheating protection

Heater block/thermostat, Pump/Thermal switch
Control

DMX 512, Stand alone
Dimensions (L x W x H)

77 x 49.5 x 83.5 cm
Weight

empty: NT: 65 kg / 2.6: 67 kg
filled: NT: 87 kg / 2.6: 89 kg
Technical data fan

Procedure: Radial blower
Voltage: 230V/50/60Hz
Power: 450 Watt
Volume flow 1605 m3/h
Power consumption: 2.8 A

Downloads

Data Sheet Download
User Guide Download
