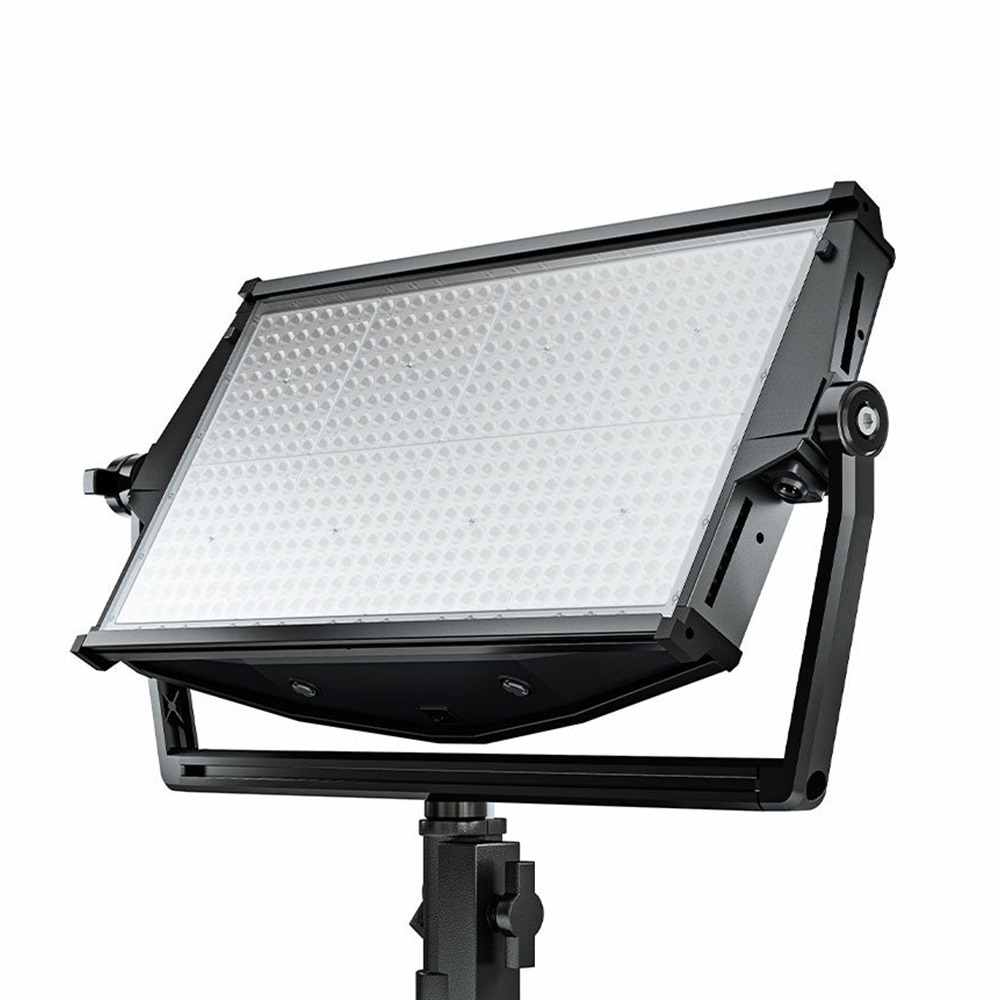

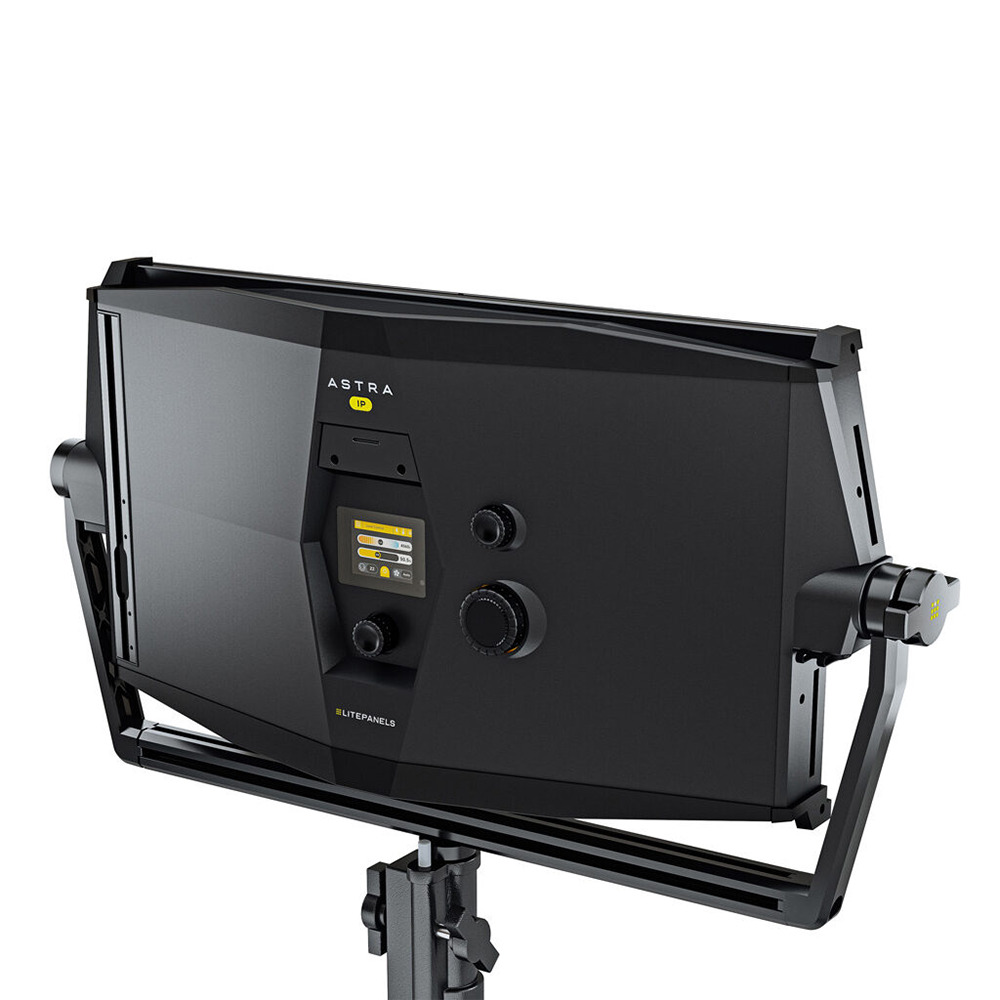

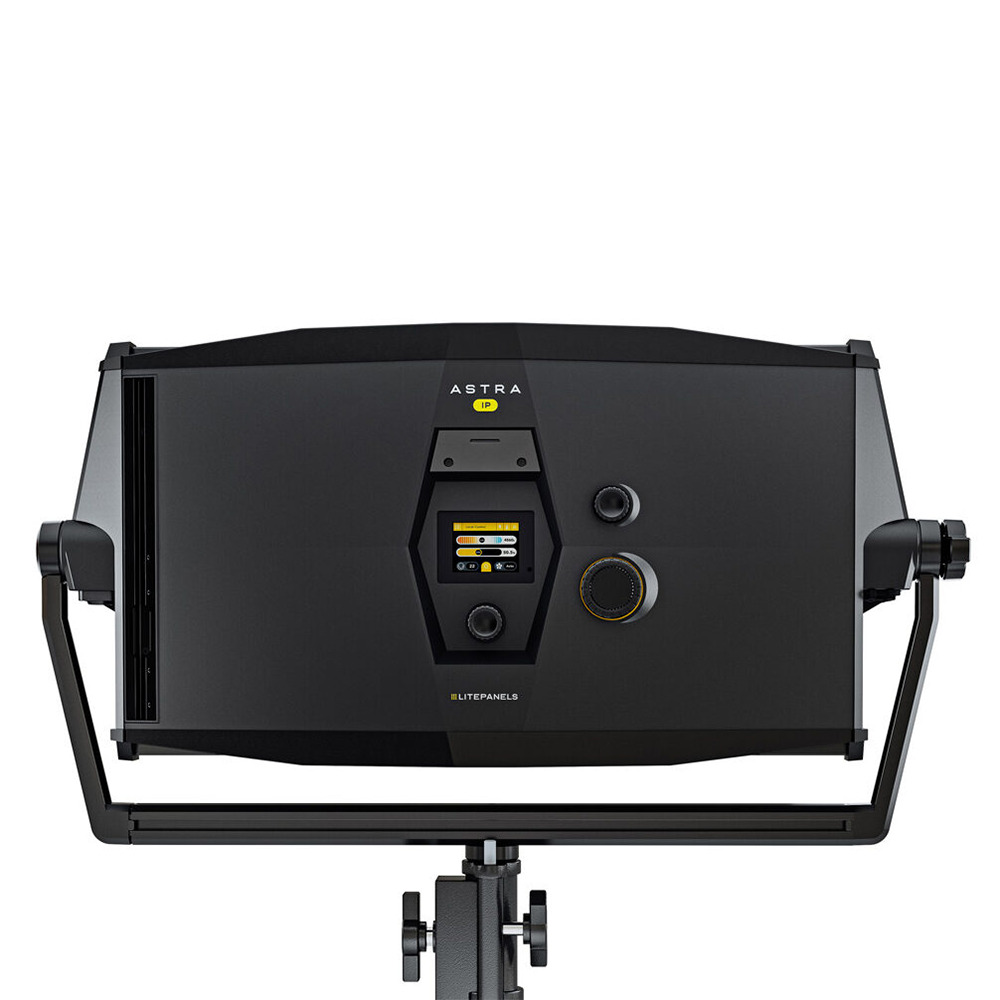

Lite Panels – Astra IP 2×1 (Standard Yoke, UK Power Cable)

Litepanels

Ready for the studio or the street, IP Rated large LED panel with a powerful flicker free output and wireless control via app or DMX.

  • Bi-Color 2×1 LED panel (2,700K to 6,500K)
  • IP65 weatherproof rating
  • High output of 5,500 lux at 10ft/3m with 30˚ beam angle
  • Diffusion panel included
  • CRI/TLCI average 95
  • Lightweight at just 17.2lb/7.8kg
  • Compatible with a wide range of mobile power options
  • Integrated Bluetooth with optional DMX module
  • Range of optional modifiers and other accessories
Categories: , , ,

Description

The industry’s best-selling Bi-Color LED panel has evolved. Astra IP is tough and water-resistant, delivering intense output in lightweight 1×1, half-size and 2×1 fixtures with fast set up for high-performance broadcast lighting in demanding environments.

Power & Punch

Lighting for even the brightest location. With ultra-efficient LEDs and a tight beam angle, Astra IP produces output with impact. Command powerful, flattering, and accurate white light at any intensity, with or without diffusion. Adjust from 2,700K to 6,500K with instant confirmation on the clear LCD screen to match multiple fixtures with confidence.

Ready for Action

From the studio to the street, Astra IP always performs. Rated IP65, Astra IP defies rain, dust, or snow, for seamless operation, whatever the weather. Built tough with an integrated power supply, and optional Gold Mount, V-Mount and BP-U battery plates, Astra IP is the fast fixture that never backs down in any conditions.

Astra IP 2×1

Astra IP 2×1 delivers practical and high-quality white light for indoor and outdoor productions. The powerful 5,500 lux output of Astra IP 2×1 at 10ft/3m provides flexibility for diffusion or positioning at a distance. The optional Astra IP DMX module allows for precise control in a grid, while its IP65 rating and low 250W power draw allow use in tough outdoor conditions.

Features

  • Built tough: IP65-rated Bi-Color panel with 3-year warranty.
  • Powerful performance: High-output, intense beam.
  • True to life: Accurate color, with no shift at any intensity.
  • Control with confidence: Dual-dial system with LCD screen information.
  • Quick setup: Lightweight, designed for mounted or handheld operation.
  • Off-grid ready: Optional weatherproof battery brackets.
  • Control options: Integrated Bluetooth for app control. Optional Astra IP DMX module.
  • Customizable: Diffusion panel included with optional accessories.

Video

NAB 2024 – Astra IP

A huge thanks to all the visitors to our booth at NAB Show. It was amazing to reconnect with familiar faces and forge new partnerships within the industry.

Additional information

Ambient Temp Operation

-20 °C to 45 °C
CRI Daylight

95
CRI Tungsten

95
Color Temperature

2,700° – 6500°K
Comparative Output

Daylight (Lux at 10ft/3m): 5500
Depth

12.3 cm
Depth (Without Yoke)

12.3 cm
Dimming Control

Constant Current 0-100% Continuous (flicker free)
Estimated LED lifetime

50000+ hrs
Fan Control

Yes
Height

42.6 cm
Height (Without Yoke)

31.3 cm
Lighting Control Modes

CCT/FX single dial with LCD menu control
Max Power Draw

250W
Mounting Method

Junior Pin
Optics

30° custom TIR lens
Range

2 X 1, Astra IP
Remote Control

Bluetooth (integrated), DMX, RDM (requires separate module)
USB Updates

Yes
Weight

7.8 kg
Width

68.7 cm
Width (Without Yoke)

63.2 cm
