Description
6-Way: Each of the 6 channels can be fired individually with 50 metres of cable and up to 8 effects wired in series (48 effects). Or up to 16 effects if only one channel is to be used. It also has an additional channel for connecting to the Air Interface when using an Electric Air Cannon.

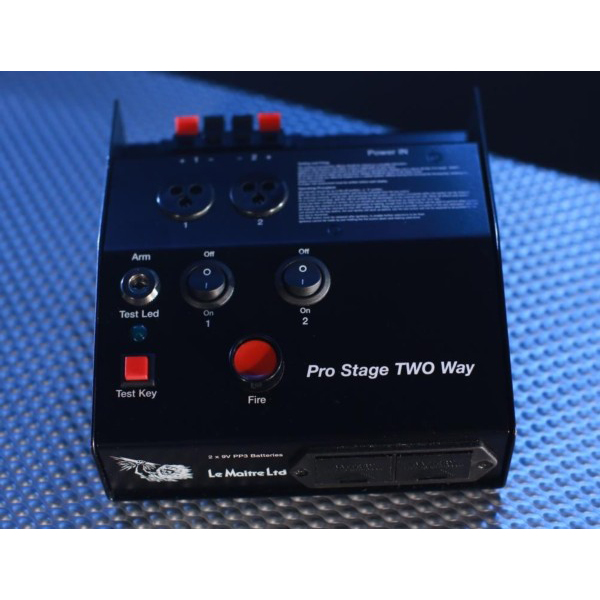

2-Way: Each of the 2 channels can be fired individually and up to 8 effects wired in series (16 effects). Or up to 16 effects if only one channel is to be used.
Features
- Has both bulgin and turret connections, so is suitable for Pyroflash and wired effects
- Can be used with a mains power supply. Optional extra
- New test facility is available when armed AND unarmed
Key switch for complete safety Intelligent monitoring means that any fault or damage to the system is shown instantly, allowing the system to be disabled before firing
Integrated test facility for assured firing status Each of the 6 channels, if selected independently, is capable of firing up to 10 effects, wired in series over a maximum distance of 50 metres Used in conjunction with standard pods, variable angle pods, twin pods and splitter boxes Up to 240 effects can be fired from one system. Using the channel selector switch and a splitter box on each channel enables the firer to select any one of 24 channels. Each of these channels can take up to 10 effects in series. Each channel must be fired individually All 6 channels can be fired simultaneously with up to 5 effects wired in series on each channel Supplied with 3-pin Bulgin connections.
NOT supplied with a Flash Pod.
NB: The key switch system used on all our firing systems has become obsolete so we will be changing to a new system. This will not affect any systems already supplied, and we will still be able to provide replacement keys, just not the switches. As normal, a key will be supplied with all new controllers.
