JBL-SRX918S-18-inch-Powered-Subwoofer-Front-FaceJBL-SRX918S-18-inch-Powered-Subwoofer-Front-Face

JBL – SRX918S

JBL

18-inch Powered Subwoofer

Features

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
  • Built-in, passively cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Supports HARMAN HControl Ethernet
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

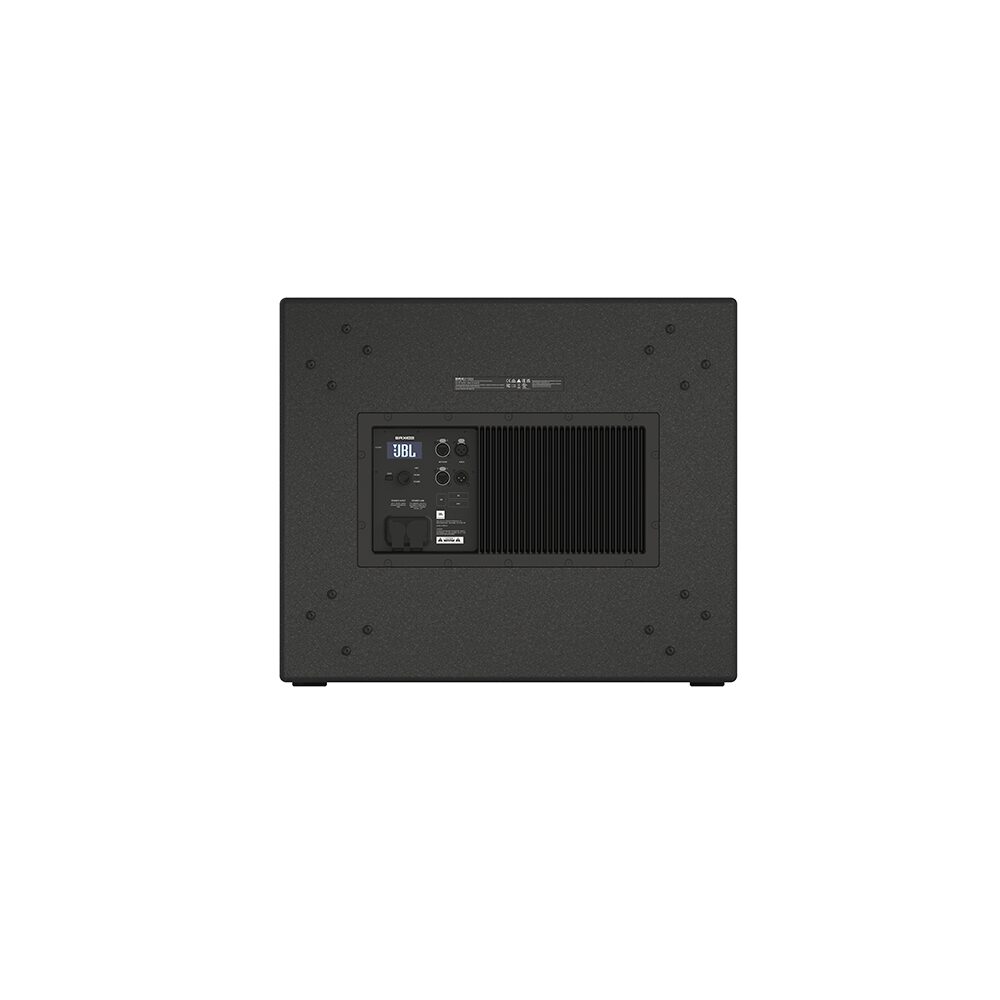

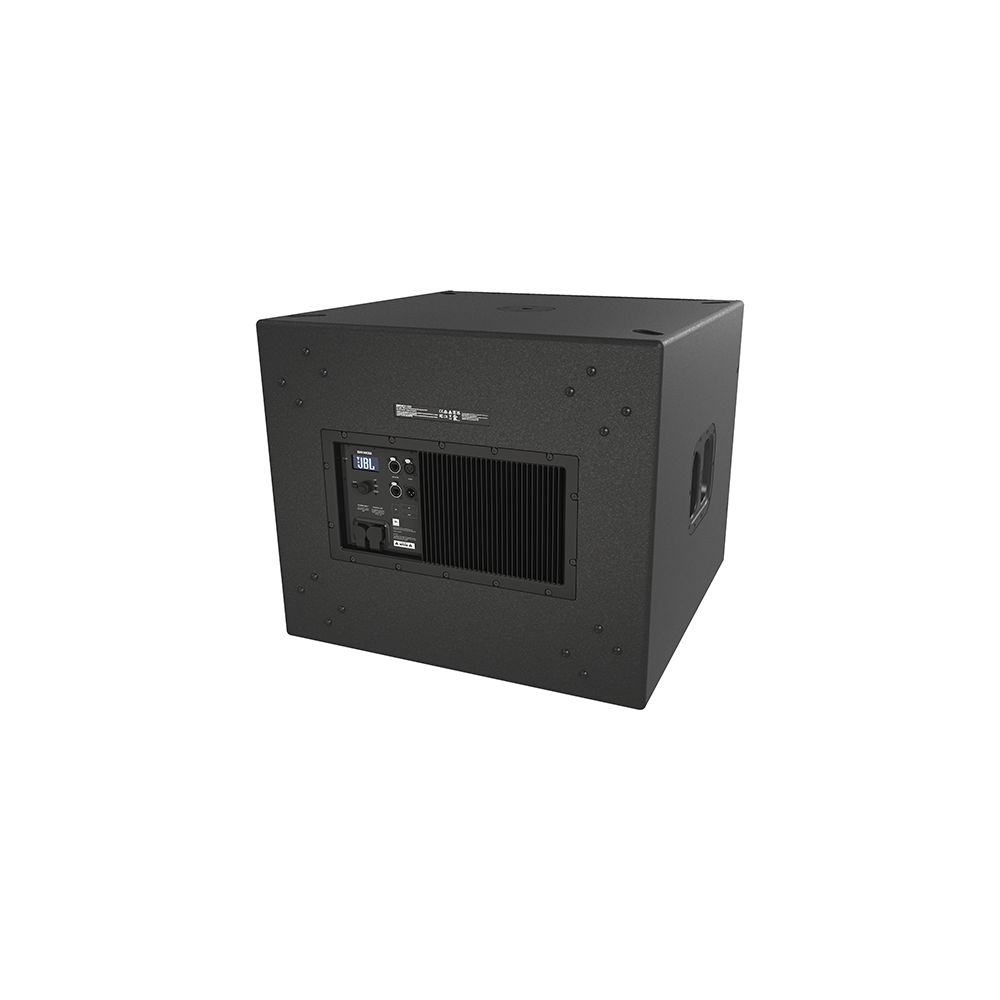

  • Rear-panel LCD provides complete access to control features
  • Reinforced 18mm plywood enclosures
Categories: , , ,

Description

The SRX900 Series embodies the advanced performance principles that drive JBL’s development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

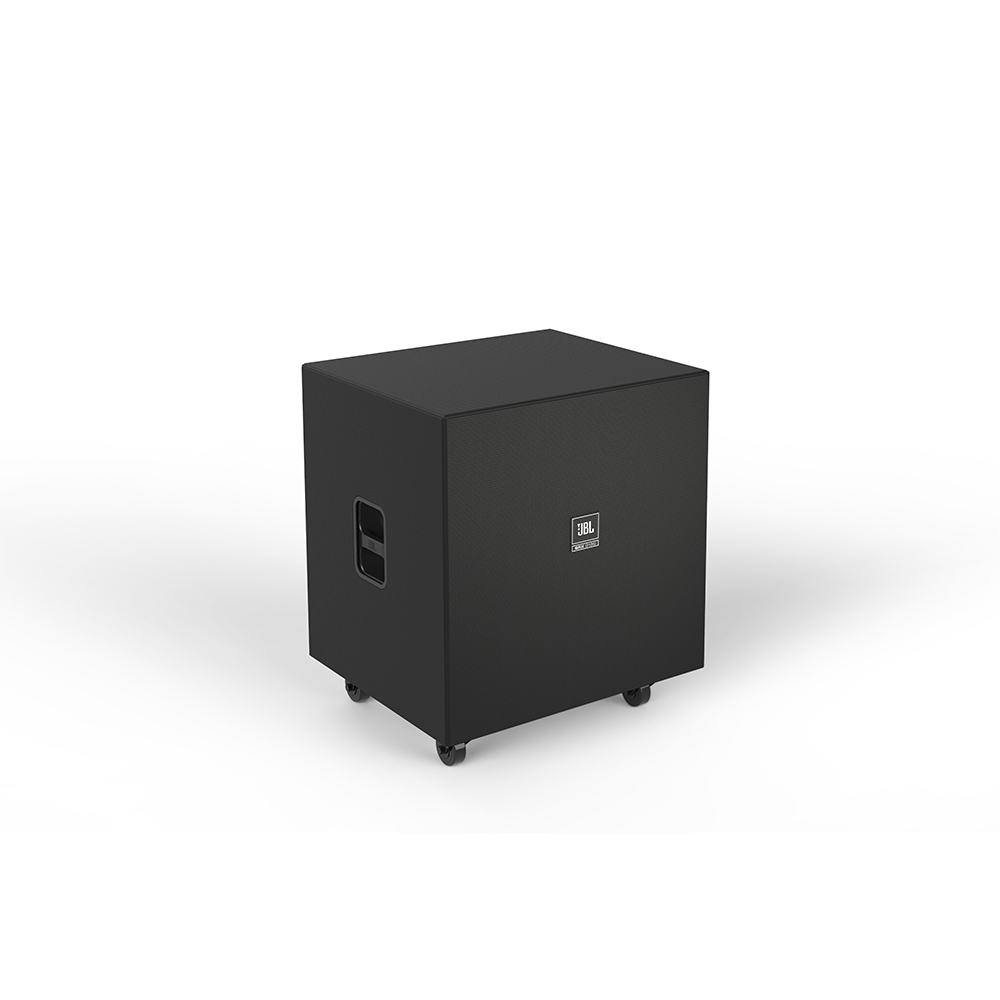

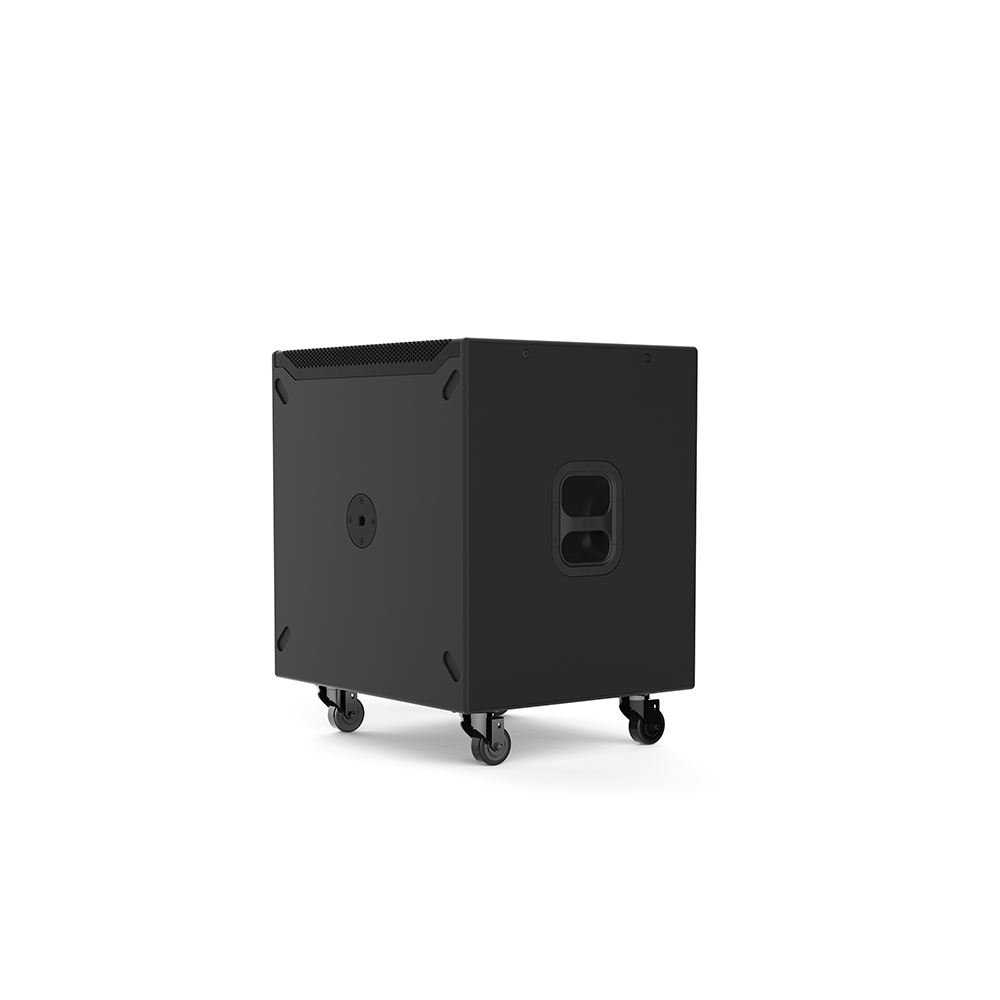

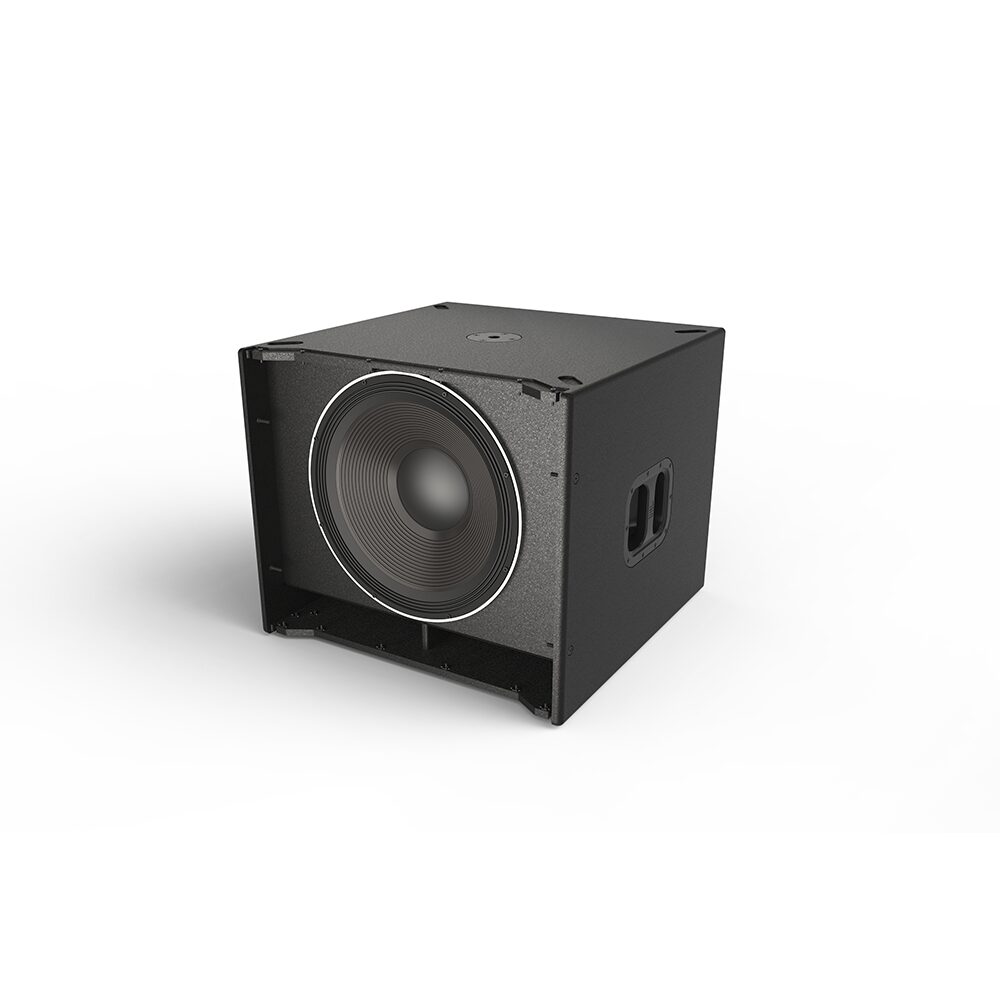

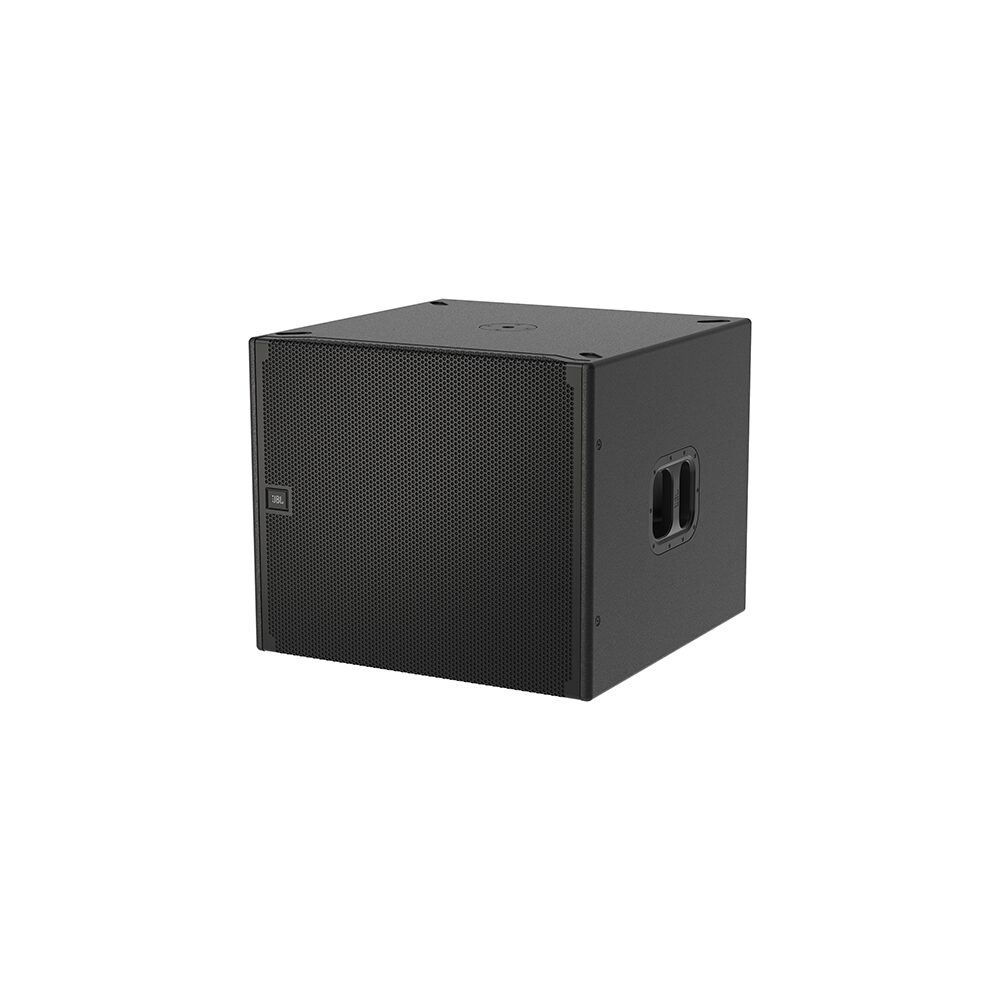

The SRX918S is a single 18-inch active subwoofer designed to complement SRX900 Series full-range sound reinforcement systems. The subwoofer houses a JBL 2279-1 18-inch woofer featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs.

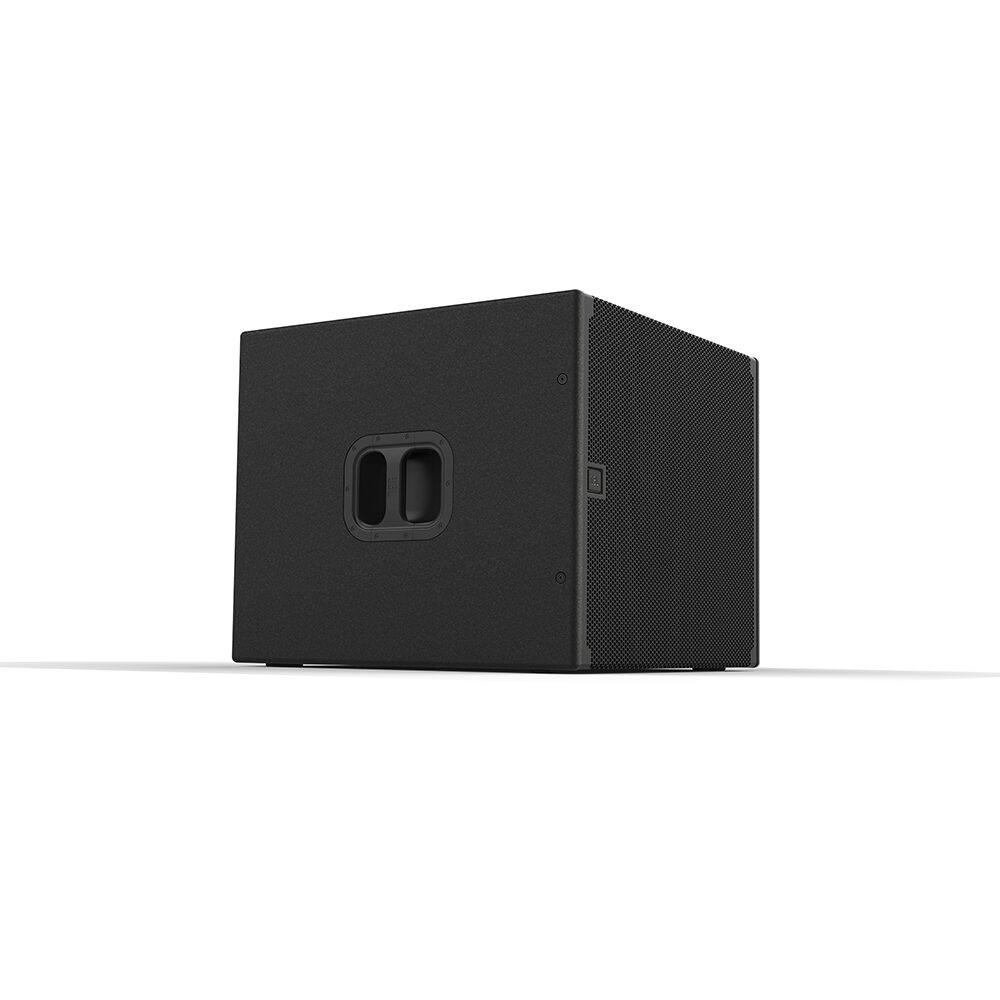

Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world. The SRX918S incorporates a large low frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

Video

JBL SRX900 Series (2025 Update)

In this Technical Overview, we explore the JBL SRX900 Series powered scalable solution that combines exceptional sound quality, built-in amplification and DSP, and a complete ecosystem of rigging and transport accessories and supporting software.

Additional information

Frequency Range (-10dB)

35 Hz-90 Hz

Coverage Pattern

Omnidirectional or Cardioid

Maximum SPL

134 dB

System Type

Active Subwoofer

Amplifier Design

Class-D

Continous Power Rating

1,100 Watts

LF Driver

(1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®

Enclosure

Plywood, Black DuraFlex finish, two integral recessed handles

Dimensions (H x W x D)

575 mm x 684 mm x 683 mm
(22.6 in x 26.9 in x 26.9 in)

Net Weight (each)

44.5 kg (98 lbs)
