JB-Lighting-Sparx-9-Front-RightJB-Lighting-Sparx-9-Front-Right

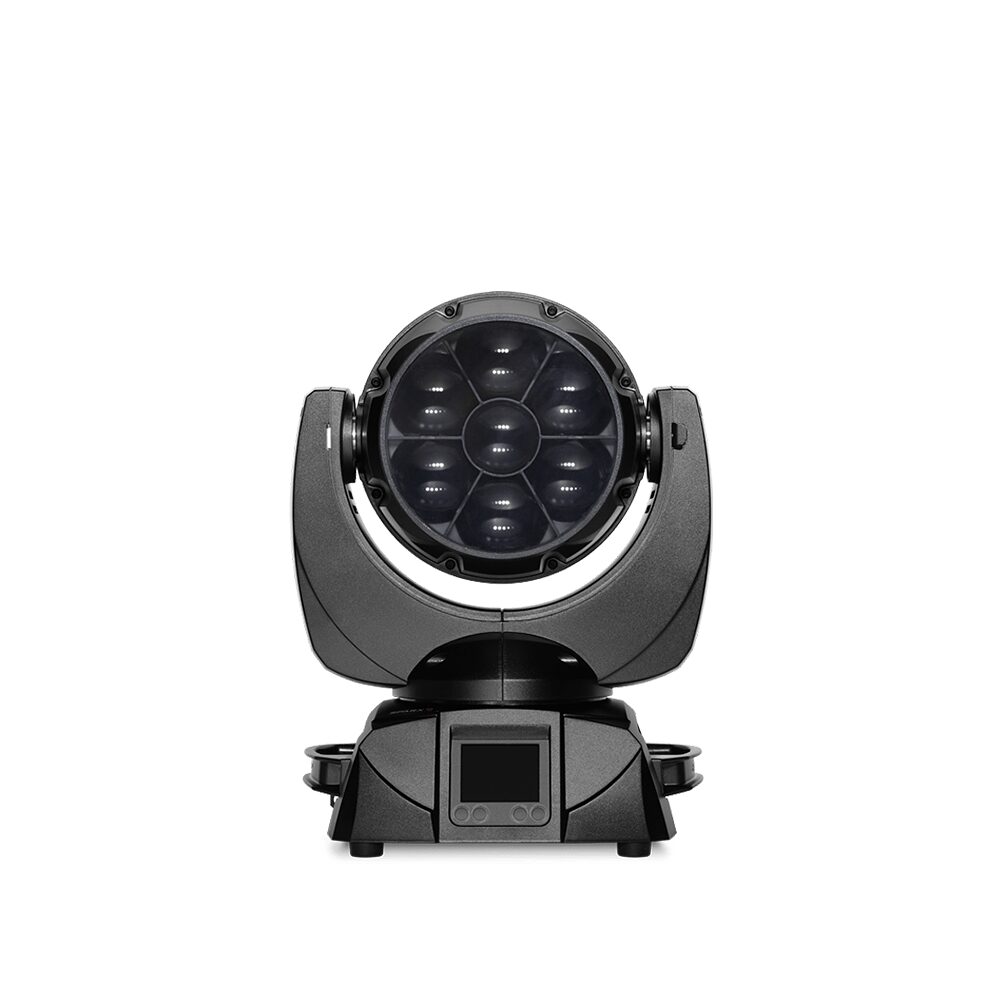

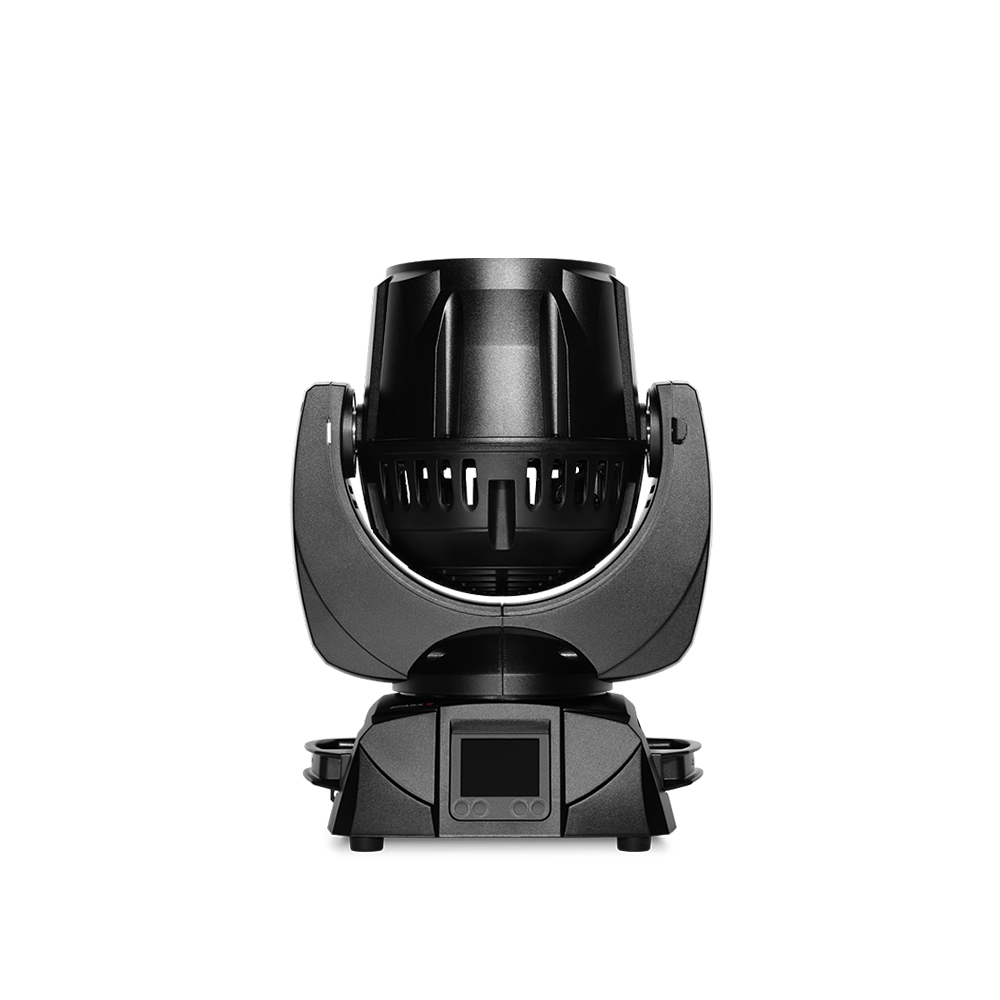

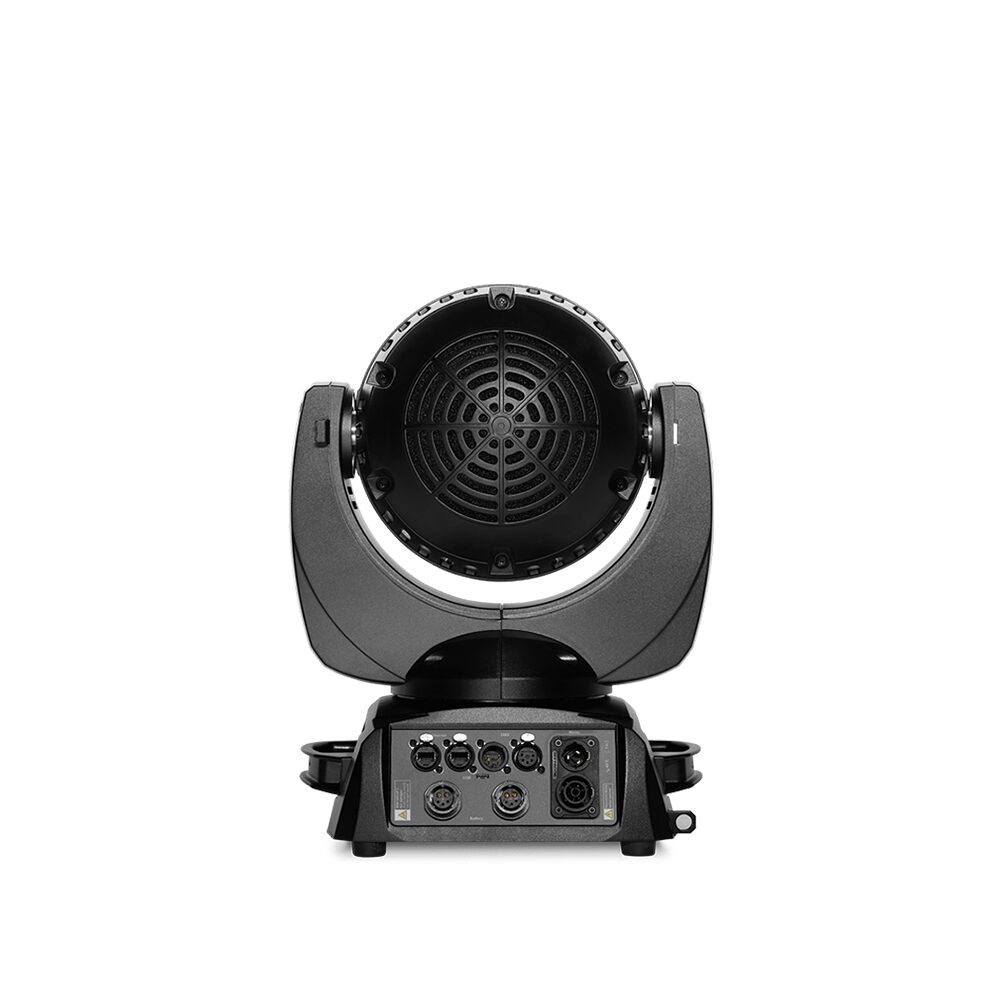

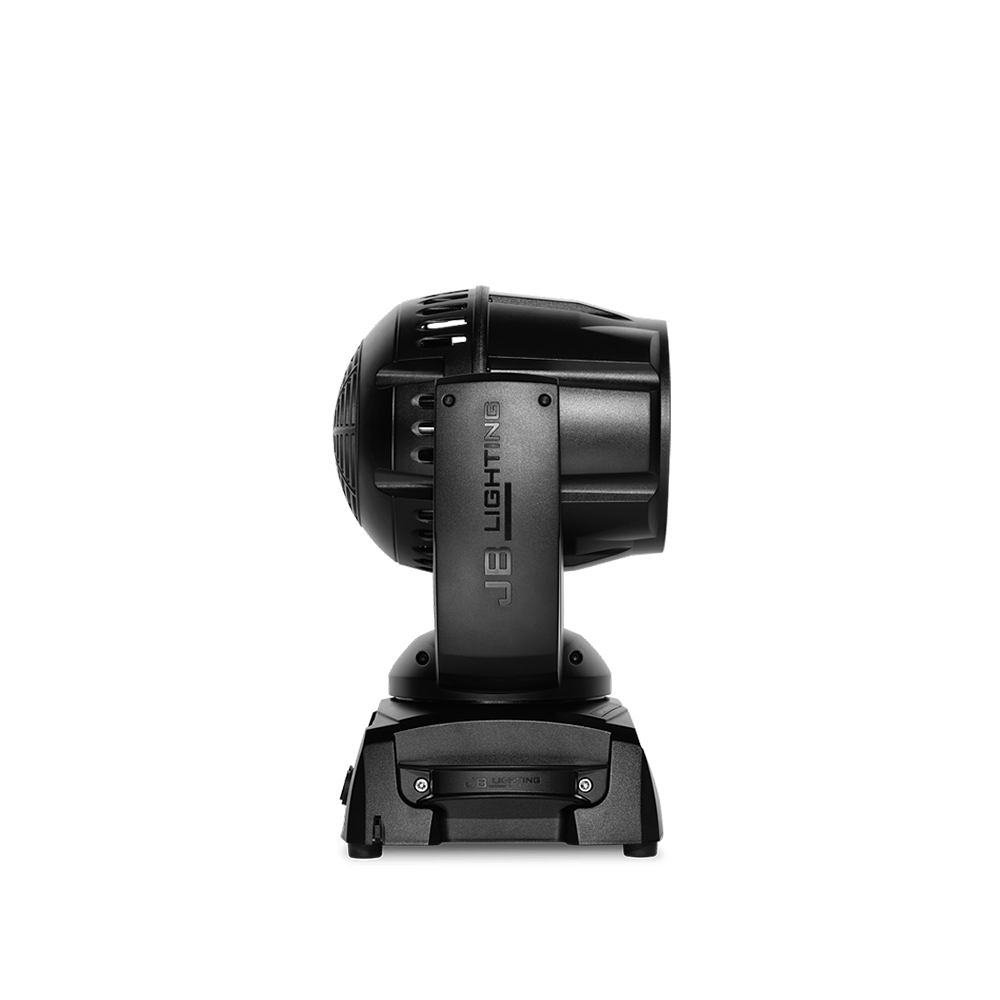

JB Lighting – Sparx 9

JB Lighting

The Sparx 9 is a very compact, 9.8 kg light pixel washer featuring newly developed optics and great beam characteristics. Its pan-tilt moves are extremely fast and as precise as its zoom.

Categories: , , ,

Description

The Sparx 9 is a very compact, 9.8 kg light pixel washer featuring newly developed optics and great beam characteristics. Its pan-tilt moves are extremely fast and as precise as its zoom. Its robust and sophisticated design makes it the perfect effect spotlight for low-maintenance and cost-saving operation in the rental industry.

Its 7x 40 W, outstanding color mixing and beam quality as well as its extremely quiet operation also make it ideal for fixed installations in concert halls, theatres or TV.

Features

  • Zoom range from 2.3°– 55° (1:23.9), zoom change (min|max): approx. 0.5 sec.
  • Perfect color mixing characteristics as well as scattered light-optimised, homogeneous beams
  • High-resolution, stepless and color-accurate dimming from 0 –100%
  • Overlay of multiple layers with independent patterns
  • Electronic strobe with pulse and random effects
  • Individual LED single pixel control
  • Sparkle channel for dynamic effectse
  • Flicker-free operation, camera mode up to 600 Hz
  • Separate CTC channel
  • Ultra-quiet 29 dB(A)

Additional information

Optics and light source

7 RGBW high-performance LEDs of 40 W each, up to 3,500 lm output
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120 and 600 Hz
Zoom range 2.3° – 55° (1:23.9), 2,3° – 33° at ½ peak; 4,4° – 55° at 1/10 peak
Highly efficient optics for perfect color mixing
Minimal scattered light
Encapsulated optical system
Effects

Individual LED control – Single pixel control
Sparkle channel for dynamic effects
Multiple layers with independent patterns can be stacked on top of each other
Countless color and pattern combinations
Separate CTC channel
Color temperature accuracy +/- Green shift (Black Body Shift)
High-resolution, steplessly variable dimmer 0–100%
Color-accurate dimming
Electronic strobe with pulse and random effects
Basic color temperature of the spotlight infinitely variable: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K or 8000 K as well as variable from 2000 K to 12000 K
Movement

3 phase extra strong stepping motors
Precise, very fast and silent movement
Quick, quiet zoom (maximum angle change 2.3° – 55° in 0.5 s)
540° pan / 234° tilt
Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net, sACN and Kling-Net
Wireless DMX / RDM Lumen Radio CRMX TiMo
Bluetooth, Wifi
Mini USB for software update
LCD display with function keys and battery buffer, electronically rotatable
Stand-alone mode, master/slave function
Built-in DMX analyser
Construction

Robust, roadworthy design
Individually changeable LEDs
Fan control for almost noiseless operation, 29 dB(A)
Neutrik 5pin XLR IN/OUT
RJ45 IN/OUT network socket
Power IN/OUT
5pin IN/OUT socket (prepared for battery operation)
Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options
Optional: Diagonal omega bracket for two additional mounting possibilities
Electrical & thermal specification

Max. power consumption 300 VA
Input voltage range 100 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 1,024 BTU/hr
Mechanical specification

Dimensions: B 331 x D 243 x H 445 mm
Weight: 9,8 kg
Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets
Accessories

CASE46 Amptown double flight case
CASE47 Amptown 4-compartment flight case
CASE48 Amptown 6-compartment flight case
BLOB02 Omega bracket standard
BLOB03 Diagonal omega bracket

Downloads

Data Sheet Download
User Guide Download
