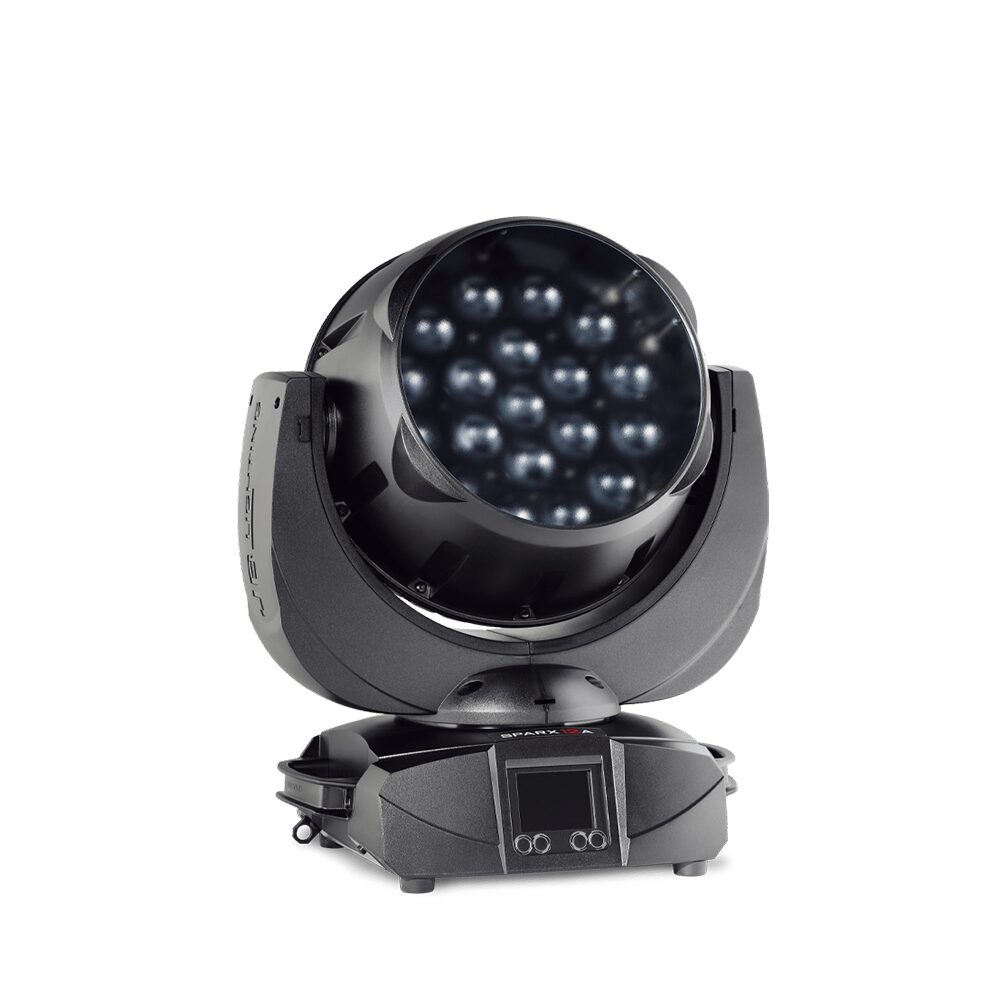

JB-Lighting-Sparx-12A-FrontJB-Lighting-Sparx-12A-Front

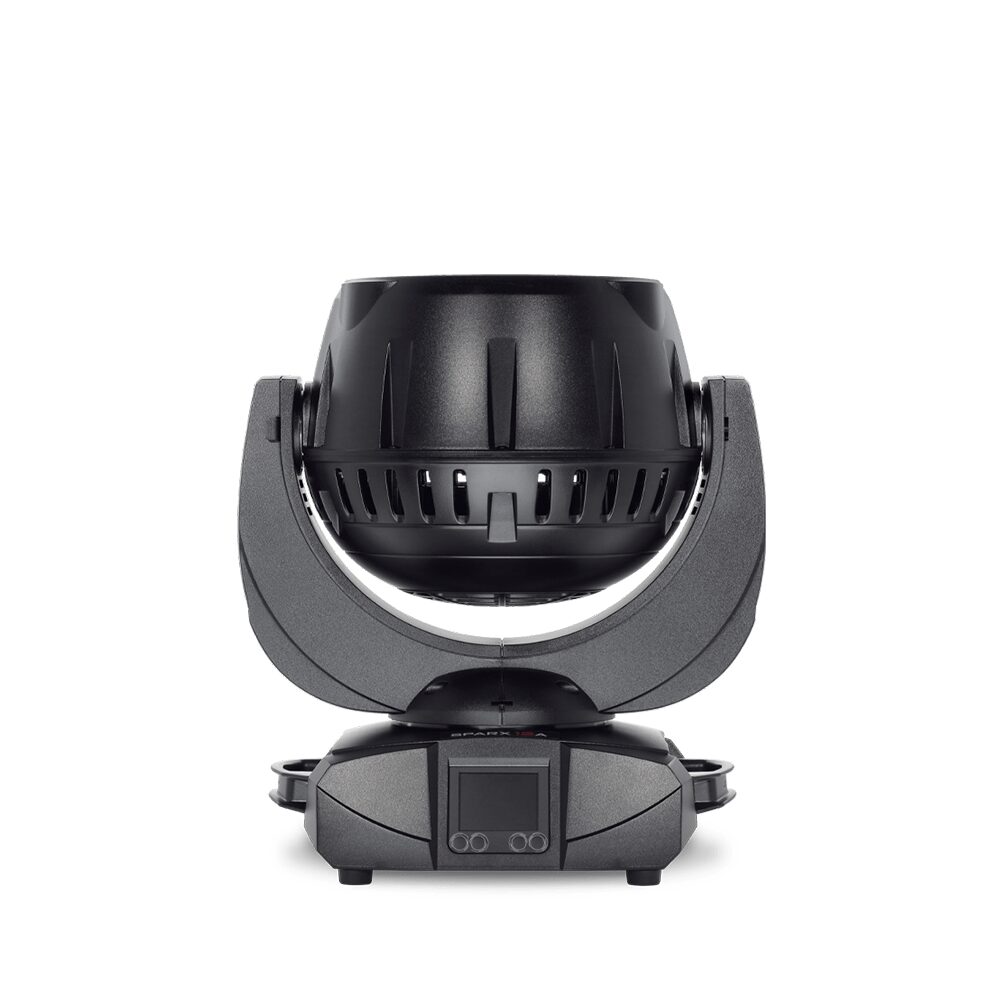

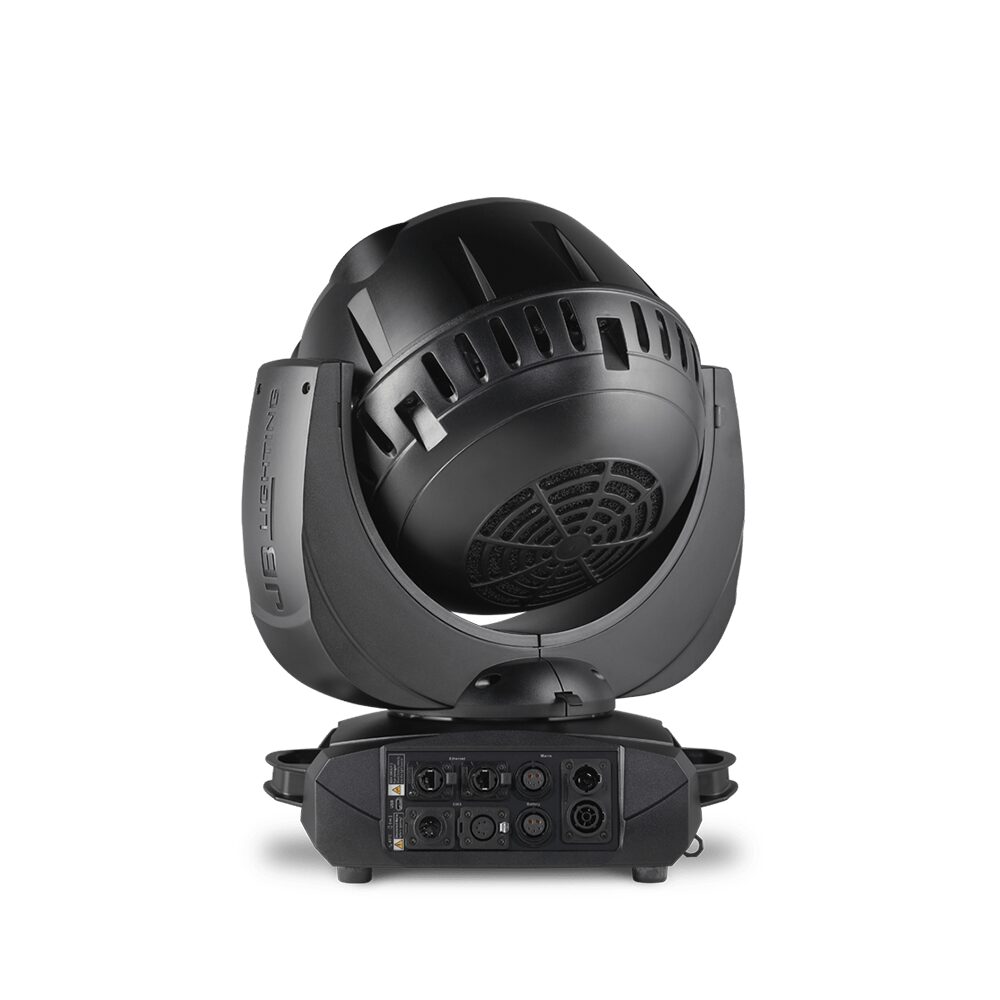

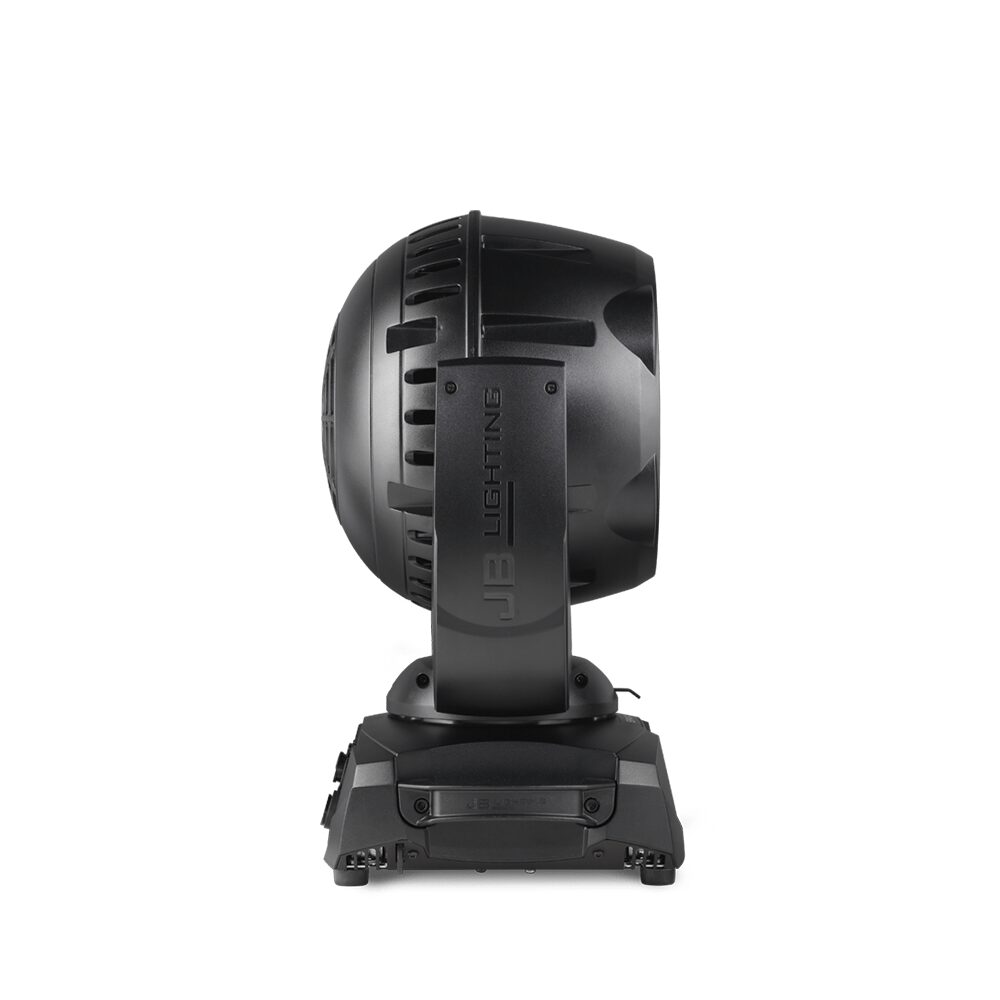

JB Lighting – Sparx 12A

JB Lighting

The Sparx 12A – based on the Sparx 12 – has been specially optimised for lighting applications. Thanks to its new optics, it is in the same league as the A12 BeamWash with its max.

Categories: , , ,

Description

The Sparx 12A – based on the Sparx 12 – has been specially optimised for lighting applications. Thanks to its new optics, it is in the same league as the A12 BeamWash with its max. luminosity of 10,500 lm and a TwinZoom of 7° – 65°. But it works much faster and quieter than its legendary predecessor.

Light distribution and color mixing in the Sparx 12A are comparable to Fresnel optics and more homogeneous than in the A12. Its low levels of scattered light are also matched by its low operating noise.

Features

  • Patented TwinZoom from 7°– 65° (1:9.3)
  • 19x 40 W LED power with max. luminosity of 10,500 lm
  • Optimised, extremely homogeneous color mixing behaviour
  • Beams optimised for scattered light without color deviations in the edge area
  • Stepless, true-color dimming from 0 –100%
  • Flicker-free operation, camera mode up to 600 Hz
  • Whisper-quiet 29 dB(A) in theatre whisper mode
  • LED single-pixel control, multi-layer effect, electronic strobe, sparkle channel, etc.
  • Prepared for operation via battery pack
  • High zoom speed
  • Separate CTC channel

Additional information

Optics and light source

19 RGBW Osram high-performance LEDs of 40 W each
Optimised for the light distribution of Fresnel optics with up to 10,500 lm Output
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120 and 600 Hz
TwinZoom system: Zoom range 7° – 65° (1:9.3)
Highly efficient optics for perfect color mixing
Minimal scattered light due to internal blades
Encapsulated optical system
Light emission diameter: Ø 240 mm
Effects

Individual LED control – Single pixel control
Sparkle channel for dynamic effects
Multiple layers with independent patterns can be stacked on top of each other
Countless color and pattern combinations
Separate CTC channel from 2000–13000 K
Optimised color mixing behaviour
Color-accurate, high-resolution and steplessly dimming 0–100%
Electronic strobe with pulse and random effects
TwinZoom effects: Multicolor beams and innovative beam shapes
Basic color temperature can be selected: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K or 8000 K
Movement

3 phase extra strong stepping motors
Precise, very fast and silent movement
540° pan / 238° tilt
Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net, sACN and Kling-Net
Wireless DMX / RDM Lumen Radio CRMX TiMo
Bluetooth, Wifi
LCD display with function keys and battery buffer, electronically rotatable
Micro USB for software update
Stand-alone mode, Master/slave function
Error analysis and DMX analysis
Construction

Robust, roadworthy design
Transport lock for pan/tilt
Individually changeable LEDs
High-tech heat pipe cooling in conjunction with calibrated silent fans for virtually noiseless operation at 29 dB(A)
Neutrik 5pin XLR IN/OUT
RJ45 IN/OUT network socket
Power IN/OUT
5pin IN/OUT socket (prepared for battery operation)
Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options
Electrical & thermal specification

Max. power consumption 750 VA
Input voltage range 100 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 2,560 BTU/hr
Ambient temperature: 0° to 45°C (note the warm-up phase)
Mechanical specification

Dimensions: B 404 x D 265 x H 491 mm
Weight: 15,5 kg
Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets
Warranty

Device: 2 years
LEDs: 4 years
Accessories

CASE42 Amptown double flight case
CASE43 Amptown 4-compartment flight case
ZU0027 Beamshape rotatable
