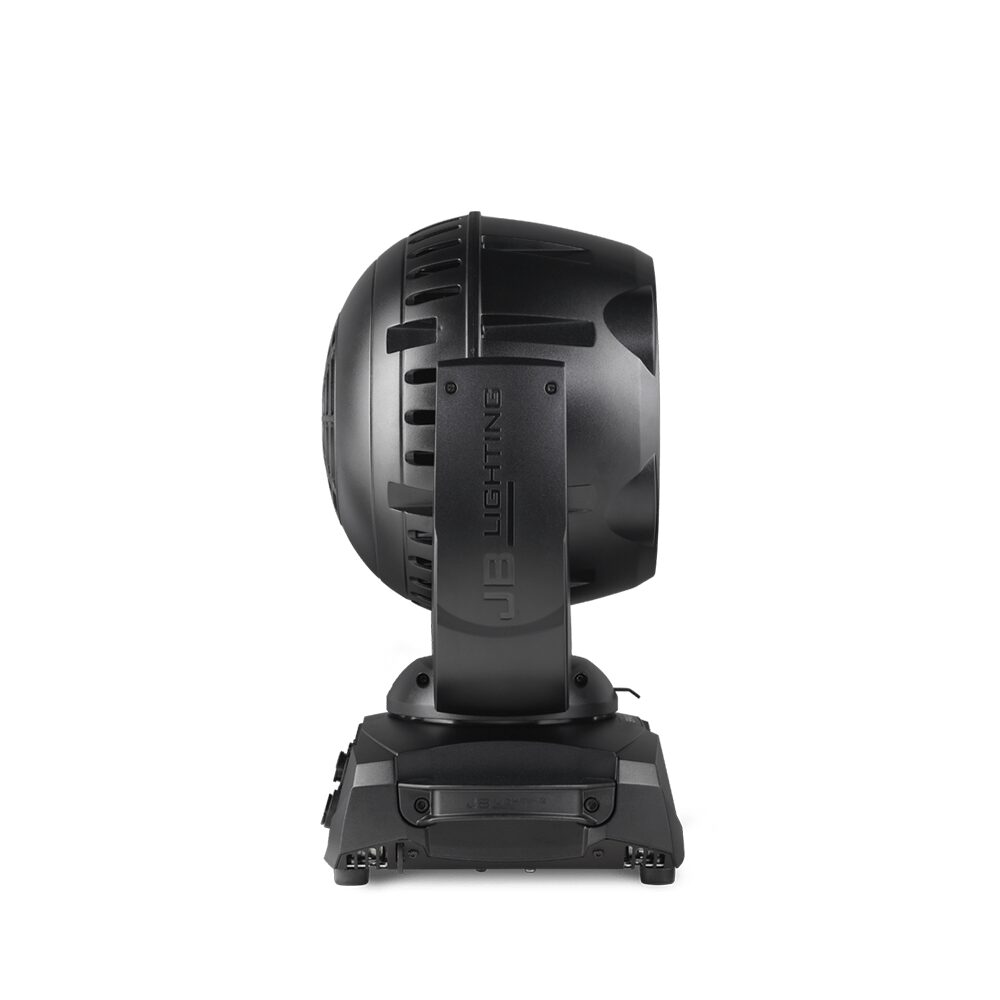

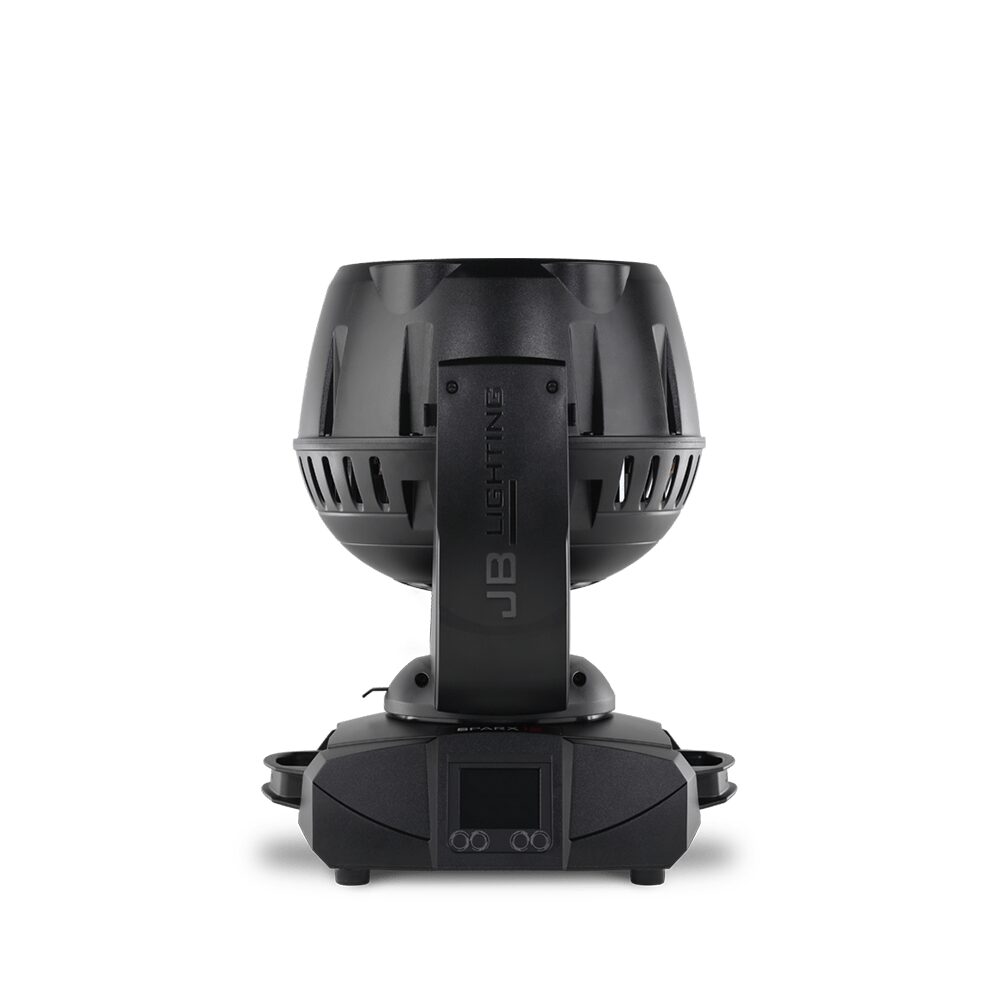

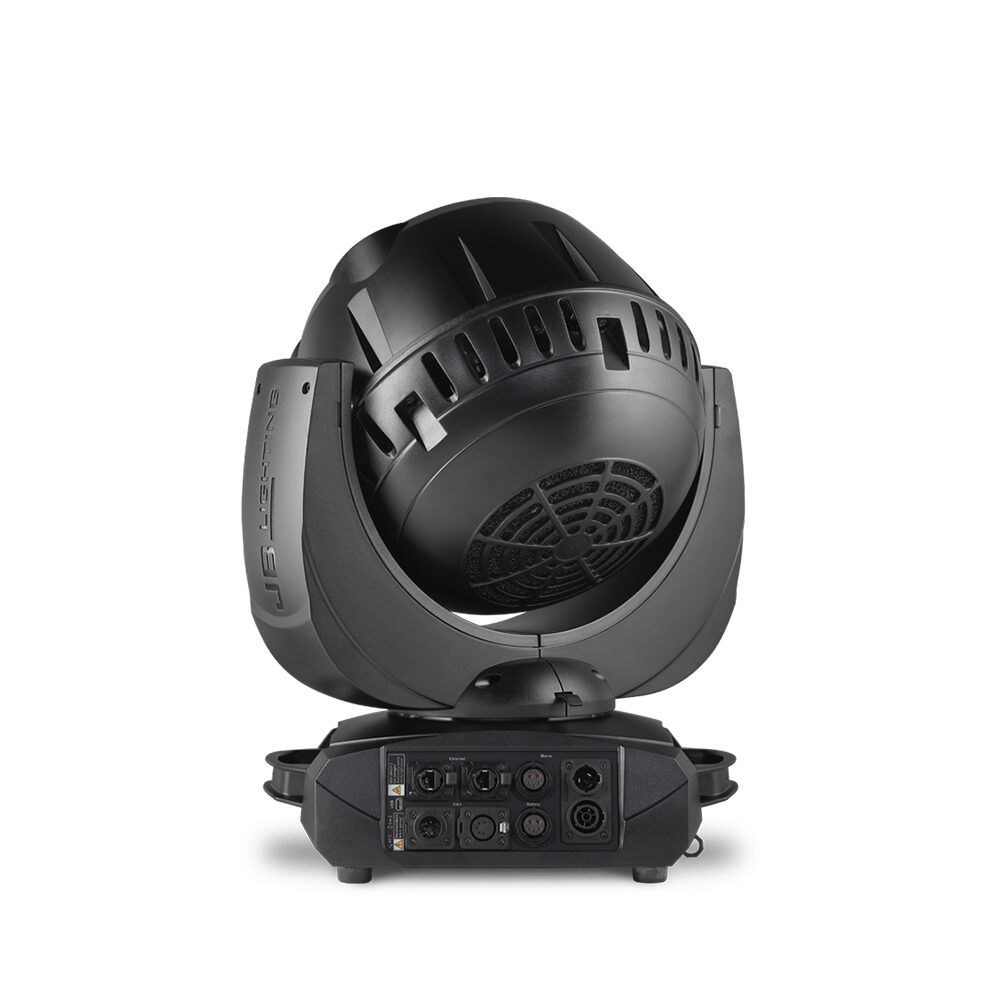

JB Lighting – Sparx 12

JB Lighting

The Sparx 12 is equally impressive as an effects unit with single pixel control and TwinZoom for backlighting applications or as an excellent wash light with perfectly homogeneous beams over the entire zoom range of 3,2° – 55°.

Categories: , , ,

Description

The Sparx 12 is equally impressive as an effects unit with single pixel control and TwinZoom for backlighting applications or as an excellent wash light with perfectly homogeneous beams over the entire zoom range of 3,2° – 55°.

The 19 by 40 W of the light 15.5 kg Sparx 12 makes conventional 2 kW spotlights look pale in comparison for color applications. It also guarantees perfectly homogeneous illumination with a level of intensity, brilliance and speed that’s sure to be fun and entertaining.

Features

  • Patented TwinZoom from 3.2°– 55° (1:17.2)
  • Scattered light-optimised, homogeneous beam
  • Individual LED single pixel control
  • Sparkle channel for dynamic effects
  • Overlay of multiple layers with independent patterns
  • Optimised color mixing behaviour
  • High-resolution, stepless and coloraccurate dimming from 0 –100%
  • Ultra-quiet 29 dB(A)
  • Flicker-free operation, camera mode up to 600 Hz
  • Electronic strobe with pulse and random effects
  • Separate CTC channel

Additional information

Optics and light source

19 RGBW high-performance LEDs of 40 W each, up to 10,500 lm Output
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120 and 600 Hz
TwinZoom system: Zoom range 3,2° – 55° (1:17,2)
Highly efficient optics for perfect color mixing
Effects

Individual LED control – Single pixel control
Sparkle channel for dynamic effects
Multiple layers with independent patterns can be stacked on top of each other
Countless color and pattern combinations
Separate CTC channel
Optimised color mixing behaviour
High-resolution, steplessly variable dimmer 0–100%
Color-accurate dimming
Electronic strobe with pulse and random effects
TwinZoom effects: Multicolor beams and innovative beam shapes
Basic color temperature can be selected: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K or 8000 K
Movement

3 phase extra strong stepping motors
Precise, very fast and silent movement
540° pan / 330° tilt
Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net, sACN and Kling-Net
Wireless DMX / RDM Lumen Radio CRMX TiMo
Bluetooth, Wifi
LCD display with function keys and battery buffer, electronically rotatable
Mini USB for software update
Stand-alone mode, master/slave function
Built-in DMX analyser
Construction

Robust, roadworthy design
Individually changeable LEDs
Fan control for almost noiseless operation, 29 dB(A)
Neutrik 5pin XLR IN/OUT
RJ45 IN/OUT network socket
Power IN/OUT
5pin IN/OUT socket (prepared for battery operation)
Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options
Electrical & thermal specification

Max. power consumption 750 VA
Input voltage range 100 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 2,560 BTU/hr
Mechanical specification

Dimensions: B 404 x D 265 x H 491 mm
Weight: 15,5 kg
Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets
Accessories

CASE42 Amptown double flight case
CASE43 Amptown 4-compartment flight case
ZU0027 Beamshape rotatable
BLOB02 Omega bracket standard

Downloads

Data Sheet Download
User Guide Download
