JB-Lighting-P5-Beamspot-Front-RightJB-Lighting-P5-Beamspot-Front-Right

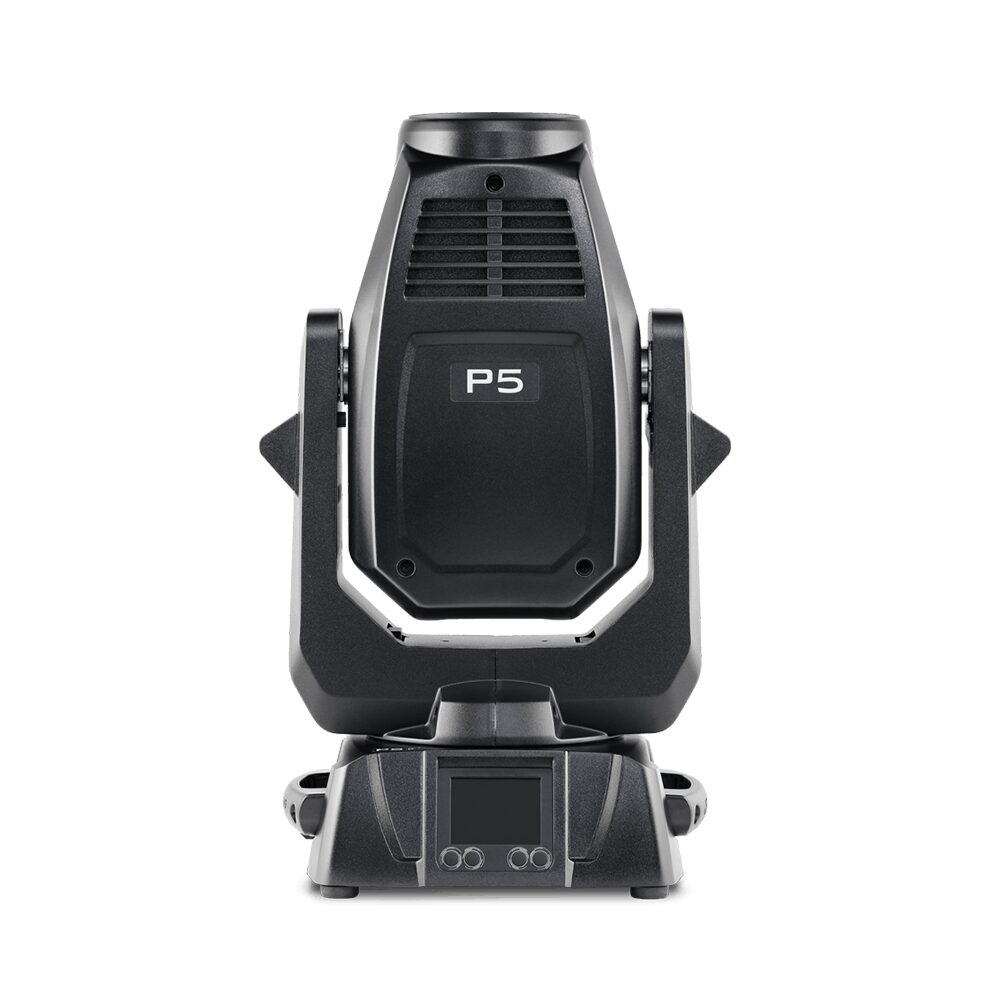

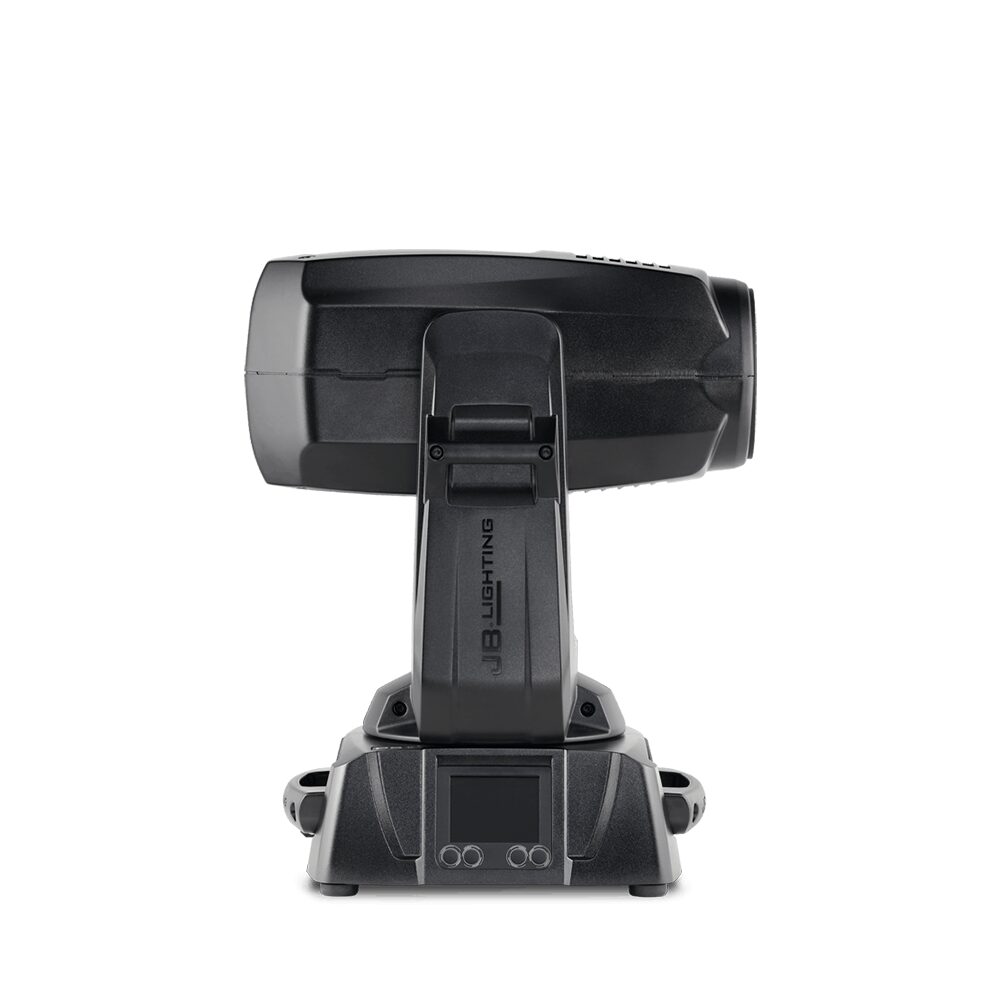

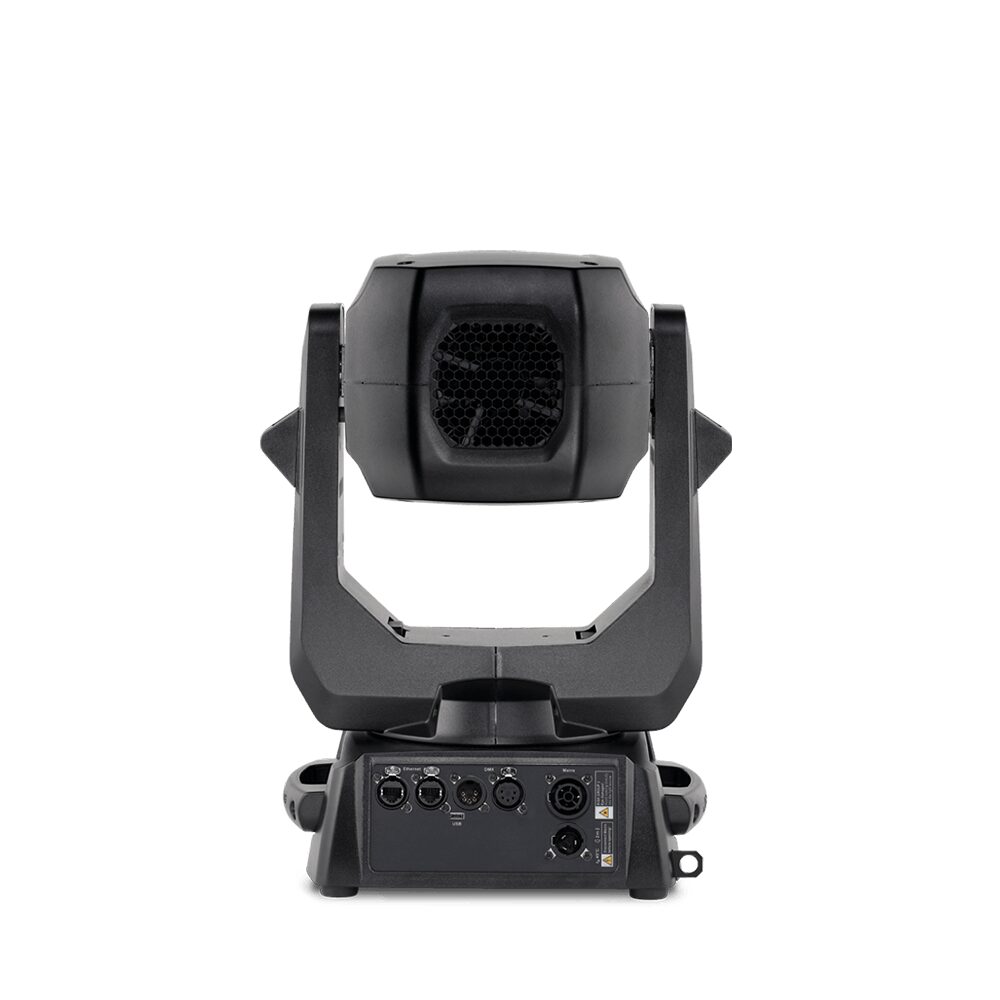

JB Lighting -P5 Beamspot

JB Lighting

The P5 is the smallest, lightest and most versatile LED spotlight in its class. It combines premium JB quality with state-of-the-art LED technology in a moving head weighing just 10.9 kg.

Categories: , , ,

Description

The P5 is the smallest, lightest and most versatile LED spotlight in its class. It combines premium JB quality with state-of-the-art LED technology in a moving head weighing just 10.9 kg. It is not only handy, but also equipped with everything that demanding users could wish for.

It offers an unrivalled zoom range of 2.4°–50°. The colour range is huge and the 9,000 lm output is enormous. In combination with the full range of effects, there are no limits to creative lighting design.

Features

  • Zoom range from 2.4°– 50° (1:20.8)
  • 1 gobo wheel with 7 rotating gobos
  • 1 gobo wheel with 11 static gobos
  • 1 color wheel with 8 colors, incl. UV filter
  • 3 correction filters: High CRI, CTO and CTB filter
  • Virtual CTC adjustment: 2000 K – 13000 K
  • Permanently installed CMY color mixing unit
  • 3-section circular prism and 5° frost filter
  • Electronic shutter with pre-programmed pulse and ramp functions
  • 4 carrying handles for easy handling
  • Large light emission lens with Ø 95 mm
  • Ultra-quiet operation: only 29 dB(A)
  • Flicker-free operation, camera mode: 100, 120, 600 Hz and high-flex mode

Additional information

Optics and light source

200 W white light LED module, 6800 K; 13,000 lm (9,000 lm Output);
CRI 74 (+/-3); TM-30 Rg = 95 (+/-3), TM-30 Rf = 70 (+/-3)
Highly efficient optical system consisting of zoom, focus, and projection lens
Light-emitting lens Ø 95 mm
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120, 600 Hz and high flex mode
Zoom range: 2.4° – 50° (1:20.8)
Effects

1 gobo wheel with 11 static gobos including a beam reducer gobo + open
1 gobo wheel with 7 rotatable, positionable and replaceable gobos, including one art glass gobo and one multi color gobo + open
1 color wheel with 8 full or half colors + High CRI filter (= TM-30 filter) + CTO filter and CTB filter + open
CMY color mixing unit for fast and perfectly homogeneous color mixing
CTB filter for automatic color temperature correction for gobo applications (can be switched off)
1 frost filter (5°), infinitely retractable – can be replaced by JB click system, other frost levels available as options: 1°, 2°, 3,5°, 10°, 20°
1 prism, 3-section circular
Electronic dimmer 0% – 100%, 3 selectable dimming curves
Electronic shutter with pre-programmed pulse and ramp functions
Virtual green/magenta correction to adapt to the surrounding light
Virtual CTC adjustment: all light colors 2000–13000 K
Movement

3 phase extra strong stepping motors
Precise, very fast and silent movement
541° pan / 281° tilt
Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net and sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
LCD display with function keys and battery buffer, electronically rotatable
Micro USB for software update
Stand-alone mode, Master/Slave function
Error analysis and DMX analysis
Ethernet in/out with bypass function switch 10/100 Mbps
Construction

Original JB-Lighting slide-in module technology
Robust, roadworthy design with 4 carrying handles
Transport lock for tilt
High-tech heat pipe cooling in conjunction with calibrated silent fans for almost noiseless operation at max. 29 dB(A)
Neutrik 5pol XLR IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT
Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options
Optional: Diagonal omega bracket for two additional mounting possibilities
Electrical & thermal specification

Maximum power consumption 350 VA
Supply voltage 200 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 1,194 BTU/h
Ambient temperature: 0 to +45° (note the warm-up phase)
Mechanical specification

Dimensions: W 314 x D 241 x H 507 mm
Weight: 10.9 kg
LWR specification: (LWR = Lumen to Weight Ratio): 826 lm/kg
Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2?m long, 3 x 1.5 mm²)
2 Omega brackets
Warranty

Device: 2 years
LEDs: 4 years
Accessories

CASE50 AMPTOWN double flight case
CASE51 AMPTOWN 4-compartment flight case
CASE52 AMPTOWN 6-compartment flight case
BLOB02 Omega bracket standard
BLOB03 Diagonal Omega bracket

Downloads

Data Sheet Download
User Guide Download
