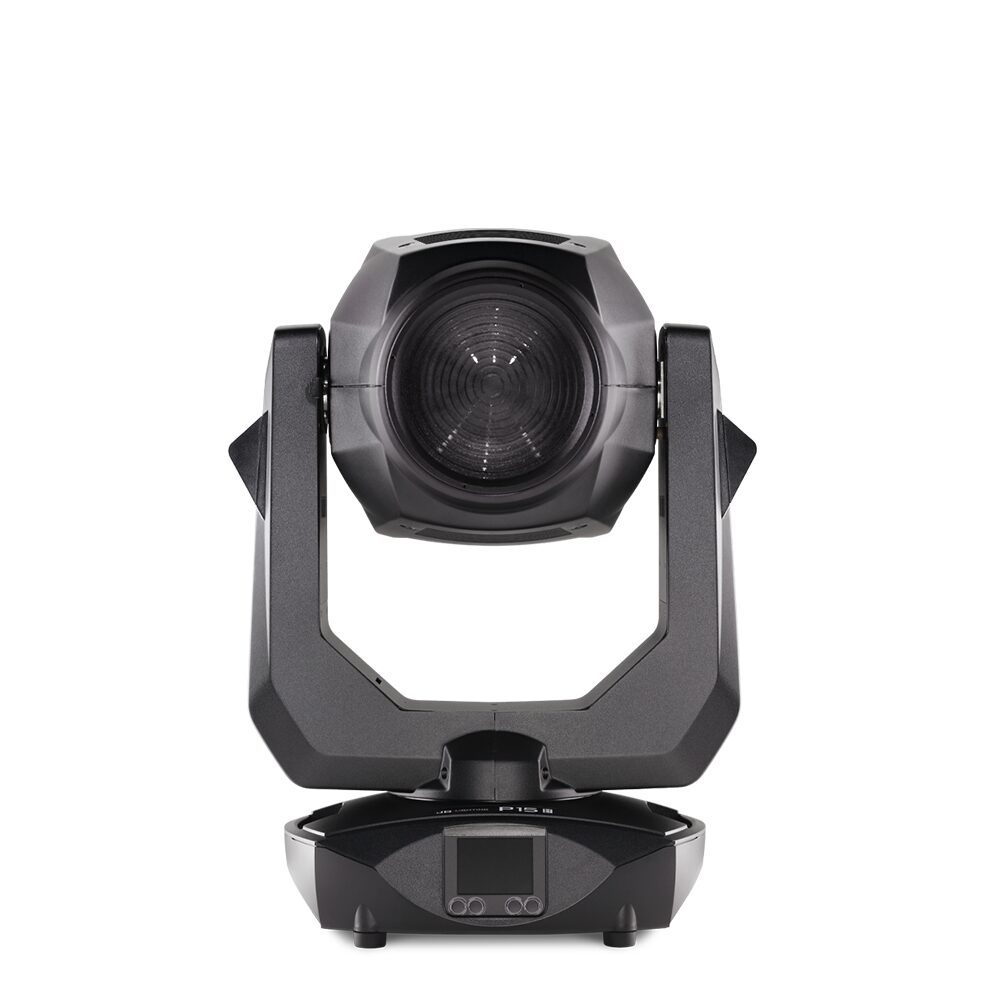

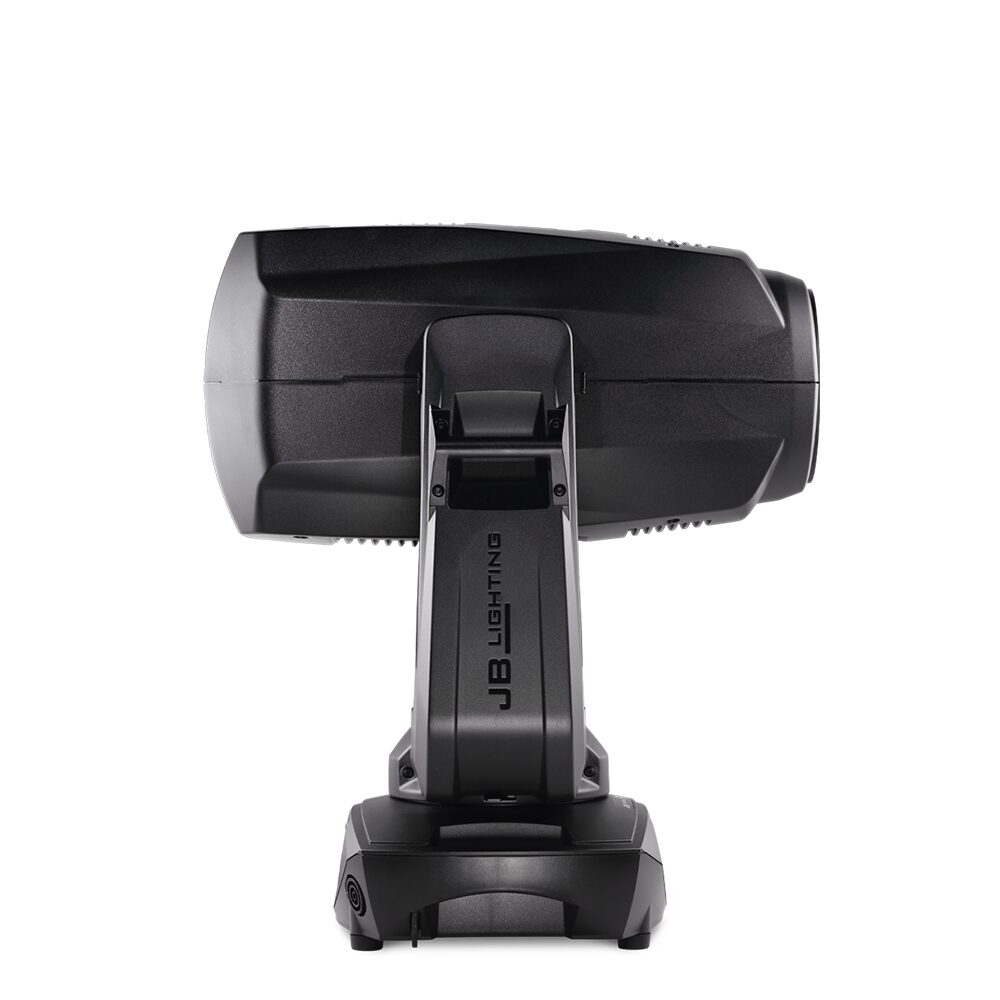

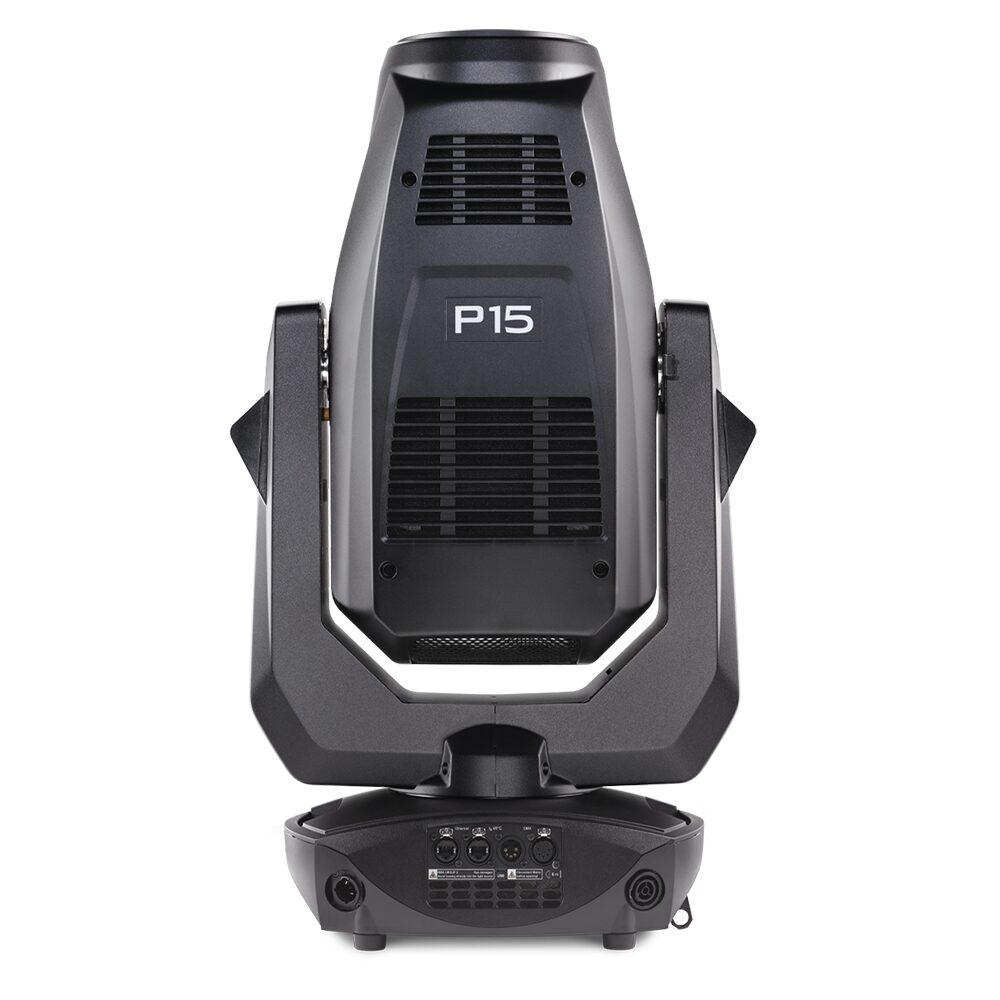

JB Lighting – P15 Wash

JB Lighting

The P15 Wash is a Fresnel washer with a 1,000W LED module and “phosphor in silicone” technology, which impressively unites and perfectly combines practical experience with the ‘who’s who’ for wide-area illumination – with top beam characteristics and the best CMY color mixing, as well as being extremely bright, precise, true to color and at 29 dB(A) as quiet as usual.

Categories: , , ,

Description

The P15 Wash is a Fresnel washer with a 1,000W LED module and “phosphor in silicone” technology, which impressively unites and perfectly combines practical experience with the ‘who’s who’ for wide-area illumination – with top beam characteristics and the best CMY color mixing, as well as being extremely bright, precise, true to color and at 29 dB(A) as quiet as usual.

This is made possible by the perfect interplay of the optical system, zoom of 9°–66° and focus as well as the CMY color mixing with color flags inserted on both sides.

Features

  • Zoomrange from 9°– 66° (1:7.3)
  • Framing module, +/-65° rotatable with 4 blades, each blade can be rotated by +/-30°
  • 1 color wheel with 6 colors + High CRI filter + CTB filter
  • Linear CTO (P15 Wash HC and P15 Wash HP), which is replaced by a linear CTB in the P15 Wash WW
  • CMY color mixing system with color flags inserted on both sides for perfectly homogeneous color mixing
  • 1 frost filter (5°), others available as an option
  • Virtual green/magenta correction
  • Virtual CTC adjustment (2000 K – 13000 K)
  • Unrivaled 29 dB(A) quiet
  • Graphic display, electronically rotatable and with a battery backup
  • Flicker-free operation, camera mode: 100 | 120 | 600 Hz and high flex mode
  • Infinitely adjustable high-speed iris with 18 fins
  • 4 carrying handles for easy handling

Additional information

Optics and light source

1,000 W white light LED module with “phosphorous in silicone” technology
P15 Wash HP (High Power):
7000 K; 75,000 lm (34,000 lm Output); CRI 73 (+/-3); TM-30 Rg = 95 (+/-3)
P15 Wash HC (High CRI):
6000 K; 54,000 lm (22,000 lm Output); CRI 92 (+/-3); TM-30 Rg = 97 (+/-3)
P15 Wash WW (Warm White):
3200 K; 44,000 lm (19,000 lm Output); CRI 93 (+/-3); TM-30 Rg= 100 (+/-3)
Highly-efficient optical system with perfect projection properties
Light-emitting lens Ø 135 mm
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120, 600 Hz and high flex mode
Zoom range: 9°–66° (1:7.3)
Effects

1 color wheel with 6 full or half colors + High CRI filter (= TM-30 filter) + CTB filter + open, color filters can be exchanged thanks to the JB click system, e.g. with a UV filter, additional color or CTO and CTB filters
Framing module with 4 blades, module can be rotated by 130° (+/-65°), each blade can be rotated individually by +/-30°
CMY color mixing system with perfectly homogeneous color mixing, even of pastel colors
Linear CTO filter for variable color temperature adjustment exactly along the black body line: HP: 7000–3200 K; HC: 6000–3200 K or WW with linear CTB filter from 3200–7700 K
Frost filter 5°, infinitely retractable – can be replaced by JB click system, other frost levels available as options: 2°, 3.5°, 10°, 20°
Motorised, infinitely adjustable high-speed iris with 18 fins
Electronic dimmer 0–100%, 3 selectable dimming curves
Electronic shutter with pre-programmed pulse and ramp functions
Animation effect / sparkle effect
Virtual green/magenta correction to adapt to the surrounding light
Virtual CTC adjustment: all light colors 2000–13000 K
Movement

3 phase extra strong stepping motors
Precise, very fast and silent movement
540° pan / 280° tilt
Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net and sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
LCD display with function keys and battery buffer, electronically rotatable
Micro USB for software update
Stand-alone mode, Master/Slave function
Error analysis and DMX analysis
Ethernet in/out with bypass function switch 10/100 Mbps
Construction

Original JB-Lighting slide-in module technology
Robust, roadworthy design with 4 carrying handles
Transport lock for pan/tilt
Prepared for mechanical path limitation for narrow installation spaces
High-tech heat pipe cooling in conjunction with calibrated silent fans for almost noiseless operation at max. 29 dB(A)
Neutrik 5pin XLR IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT
Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation, with four different fastening options
Electrical & thermal specification

Maximum power consumption 1.100 VA
Supply voltage 100V–240V, 50/60Hz
Total heat dissipation (calculated): 3.753 BTU/hr
Ambient temperature: 0 to +45° (note the warm-up phase)
Mechanical specification

Dimensions: W 421 x D 264 x H 682 mm
Weight: 23 kg
LWR specification: (LWR = Lumen to Weight Ratio)
HP: 1,478 lm/kg · HC: 957 lm/kg · WW: 826 lm/kg
Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2m long, 3×1.5 mm²)
2 Omega brackets
Warranty

Device: 2 years
LED module: 4 years
Accessories

ZU0029 Path limitation
ZU0022 Diffusor
CASE38 AMPTOWN double flight case
CASE39 AMPTOWN 4-compartment flight case
