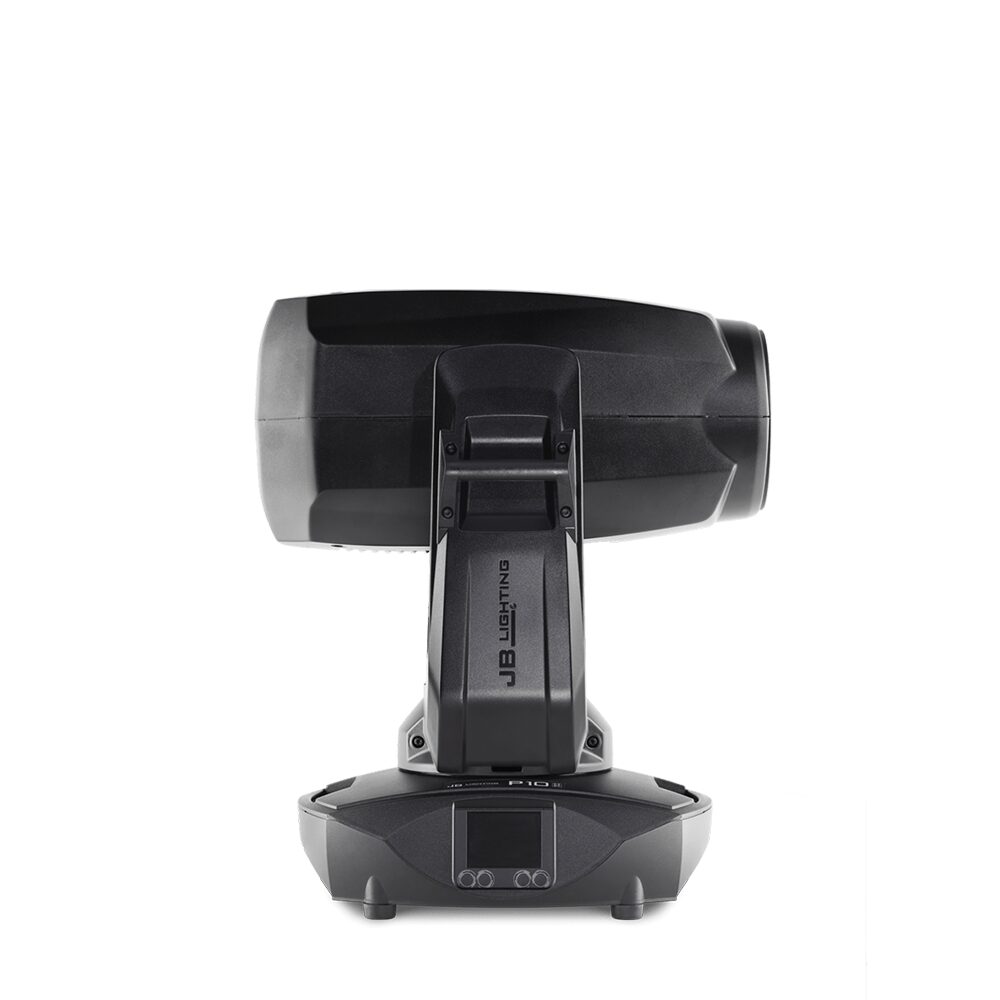

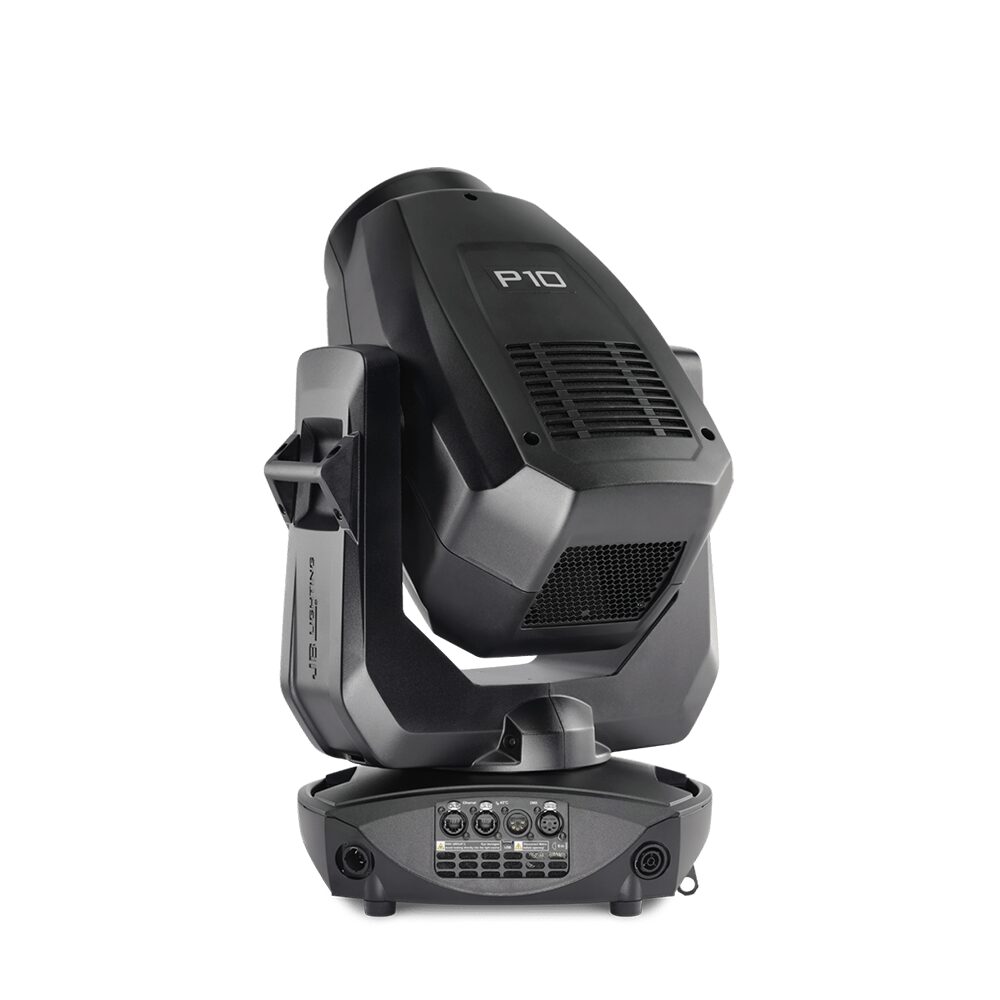

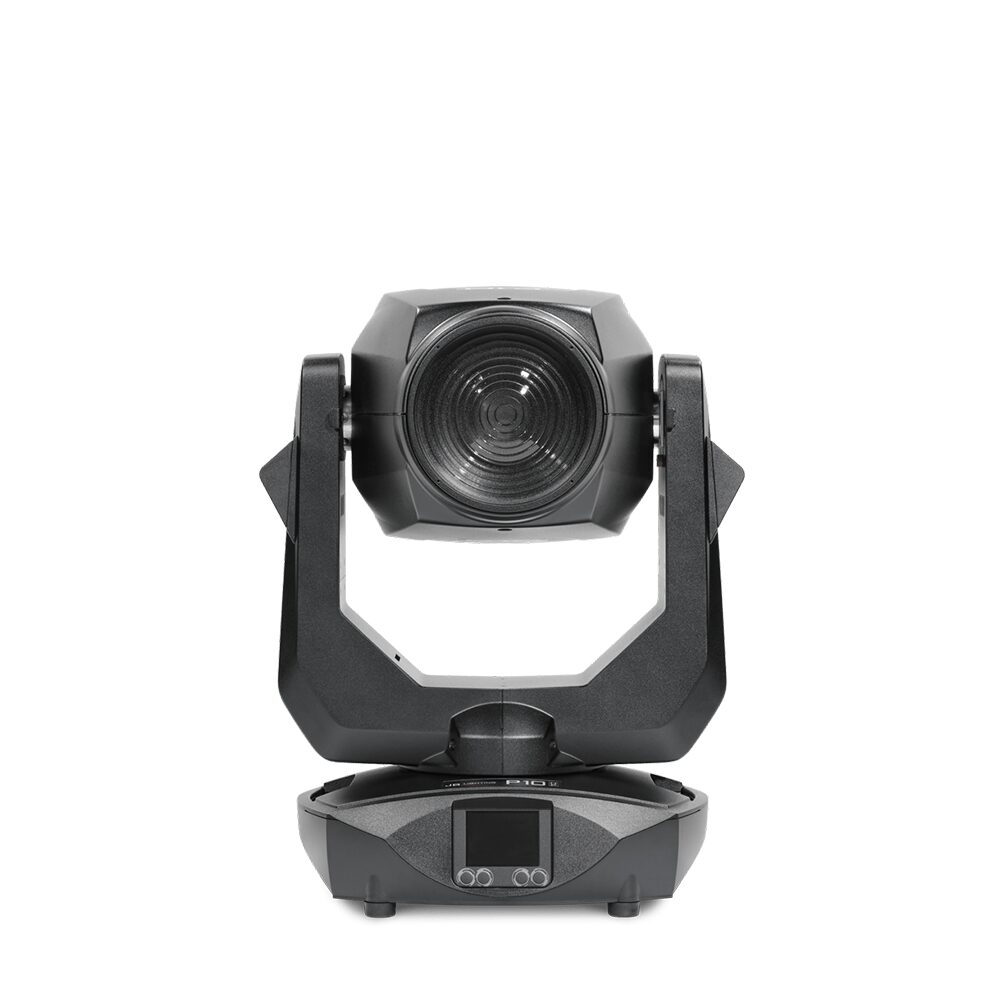

JB Lighting – P10 Wash

JB Lighting

The P10 Wash with a zoom range of 12° – 70° and its 330W LED power is the perfect size for any stage. It is available in three light colors and is also very compact, luminous and extremely quiet.

SKU: N/A Categories: , , ,
Clear

Description

The P10 Wash with a zoom range of 12° – 70° and its 330W LED power is the perfect size for any stage. It is available in three light colors and is also very compact, luminous and extremely quiet. It makes no difference which of its many features are used in the P10 Wash.

Its very low weight of just 17 kg and its compact design make it convenient for one person to install – whether at events, festivals or for installation in theatres, TVs or at trade fairs.

Features

  • Zoom range 12°– 70° (1:5.9)
  • Framing module (rotatable by +/- 65°) with 4 blades, each blade rotatable by +/- 30°
  • 1 color wheel with 7 correction filters and linear CTO
  • 1 color wheel with 5 colors + High CRI filter and linear CTB
  • 1 gobo wheel with 7 rotating gobos incl. gradient gobo to reduce hot spots at steep incidence angles
  • 2 infinitely adjustable frost filters
  • CMY color mixing
  • Infinitely adjustable high-speed iris
  • Large light-emitting lens, 135 mm
  • 4 carrying handles for easy handling
  • Ultra-quiet 29 dB(A)
  • Graphic display, electronically rotatable and with a battery backup
  • Flicker-free operation, camera mode: 100 | 120 | 600 Hz and 3 kHz
  • Prepared for mechanical path limitation

Additional information

Optics and light source

330 W white light LED module
HP (High Power): 7200 K; 25,000 lm (15,000 lm Output); CRI ≥70
HC (High CRI): 6000 K; 16,000 lm (10,000 lm Output); CRI ≥90
WW (Warm White): 3200 K; 12,000 lm (8,000 lm Output); CRI ≥92
Zoom range: 12° – 70° (1:5.9)
Large Fresnel light exit lens: Ø 135 mm
> 20,000 h service life
Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz
Effects

Framing module with 4 blades – each blade with separate motion and rotation control, the module can be rotated by 130° (+/- 65°), each blade independently by +/- 30°
1 gobo wheel with 7 rotatable, positionable and interchangeable gobos incl. multicolor gobo + open
CMY color mixing unit for for rapid, even color mixing
1 color wheel with 5 full and half colors + open and linear color selection + CTB and high CRI filter (CRI ≥90) + linear CTO
1 colour wheel with 7 correction filters (3x CTB, 3x CTO + UV) + linear CTB
2 frost filters (Soft edge, 5° and Flood frost, 10°), infinitely adjustable – optional further frost stages possible
Motorised, infinitely adjustable high-speed iris with 16 slats
Electronic dimmer 0% – 100%
Electronic shutter with pre-programmed pulse and ramp functions
Zoom range 12° – 70° (1:5.9)
Movement

High-resolution, powerful 3-phase stepper motors
Precise, extremely rapid and quiet movements
540° Pan / 280° Tilt
Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net and sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
LCD display with function keys and battery buffer, electronically rotatable
Mini-USB for software update, etc
Stand-alone mode, Master/Slave function
Error analysis and DMX analysis
Construction

Original JB-Lighting plug-in technology
Robust, roadworthy design with 4 carrying handles
Pan/Tilt transport lock
Fan control for almost silent operation, 29 dB(A)
Neutrik 5-pin XLR IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT
Prepared for mechanical path limitation
Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation, with four different fastening options
Electrical & thermal specification

Maximum power consumption 490 VA
Supply voltage 100 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 1,672 BTU/hr
Mechanical specification

Dimensions: W 398 x H 609 x D 264 mm
Weight: 17 kg
Scope of delivery

Schuko to powerCON TRUE1,
flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets
Accessories

ZU0029 Travel limitation
CASE40 Amptown double flight case
CASE41 Amptown 4-compartment flight case
BLOB02 Omega bracket standard
