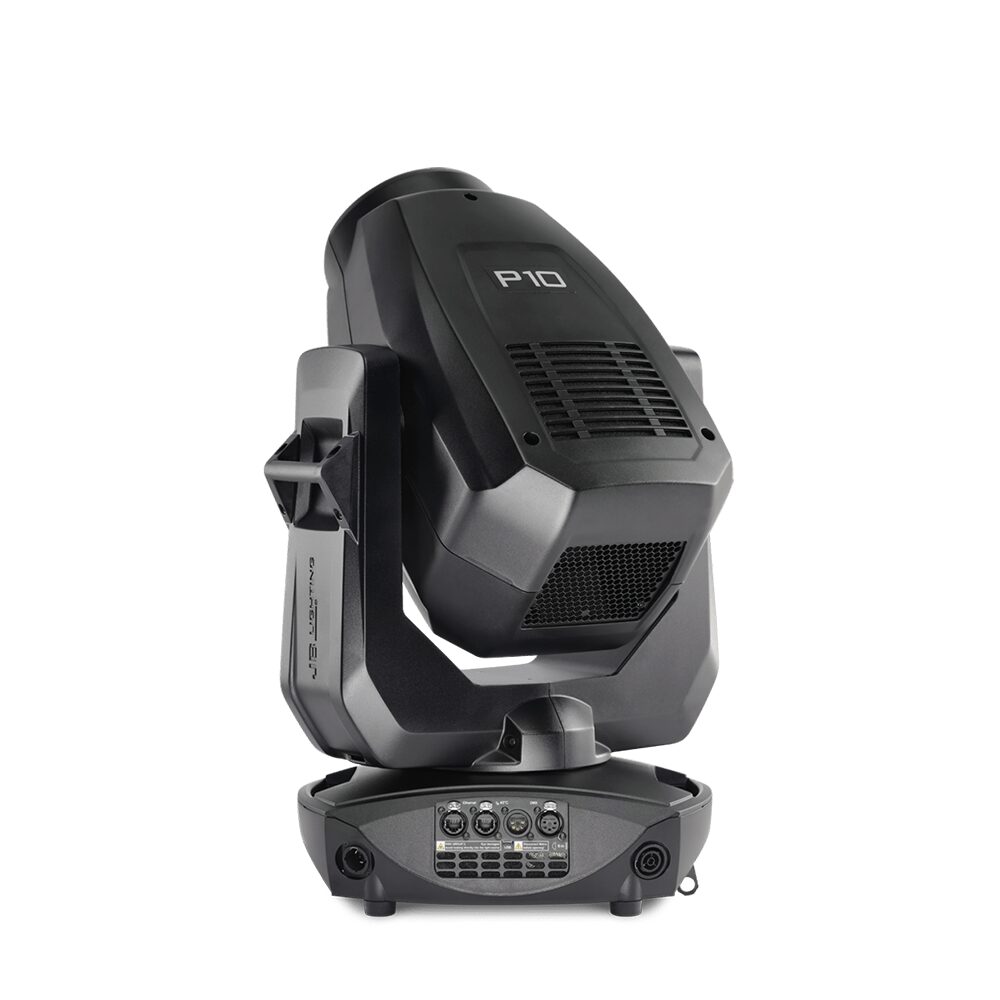

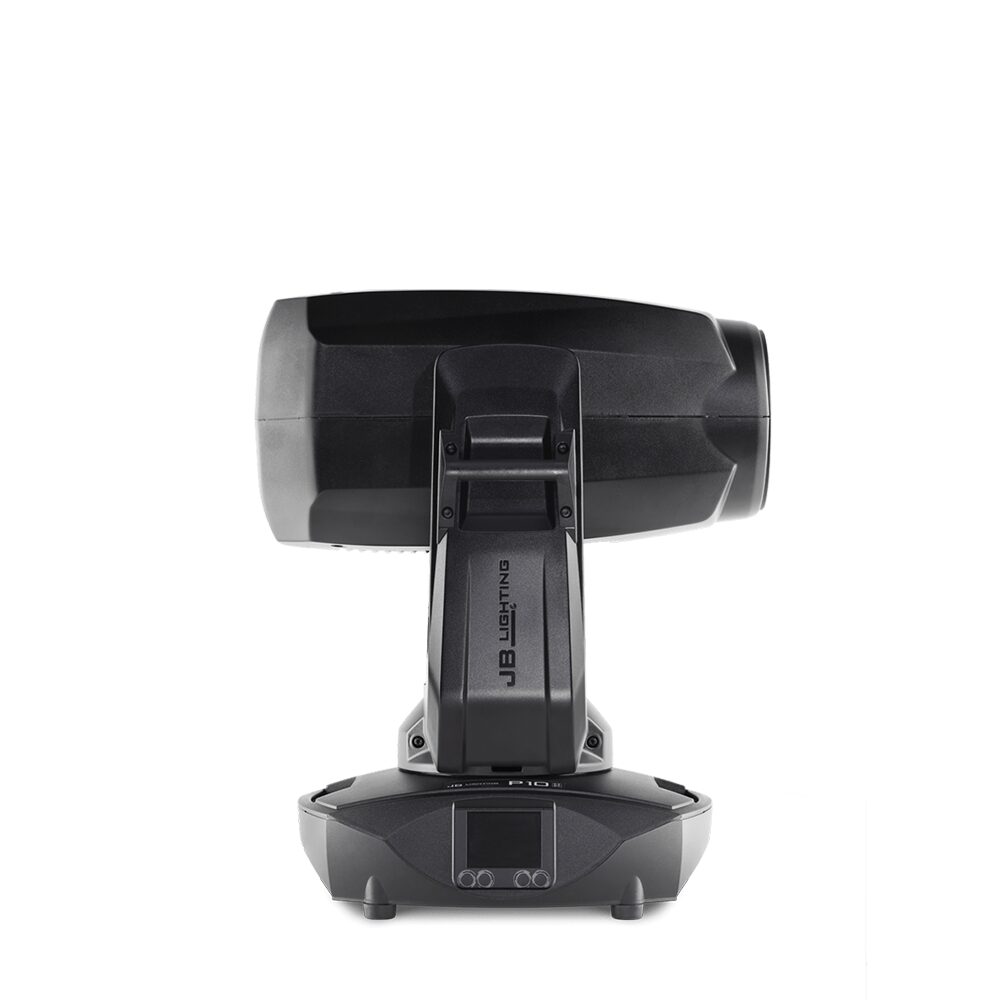

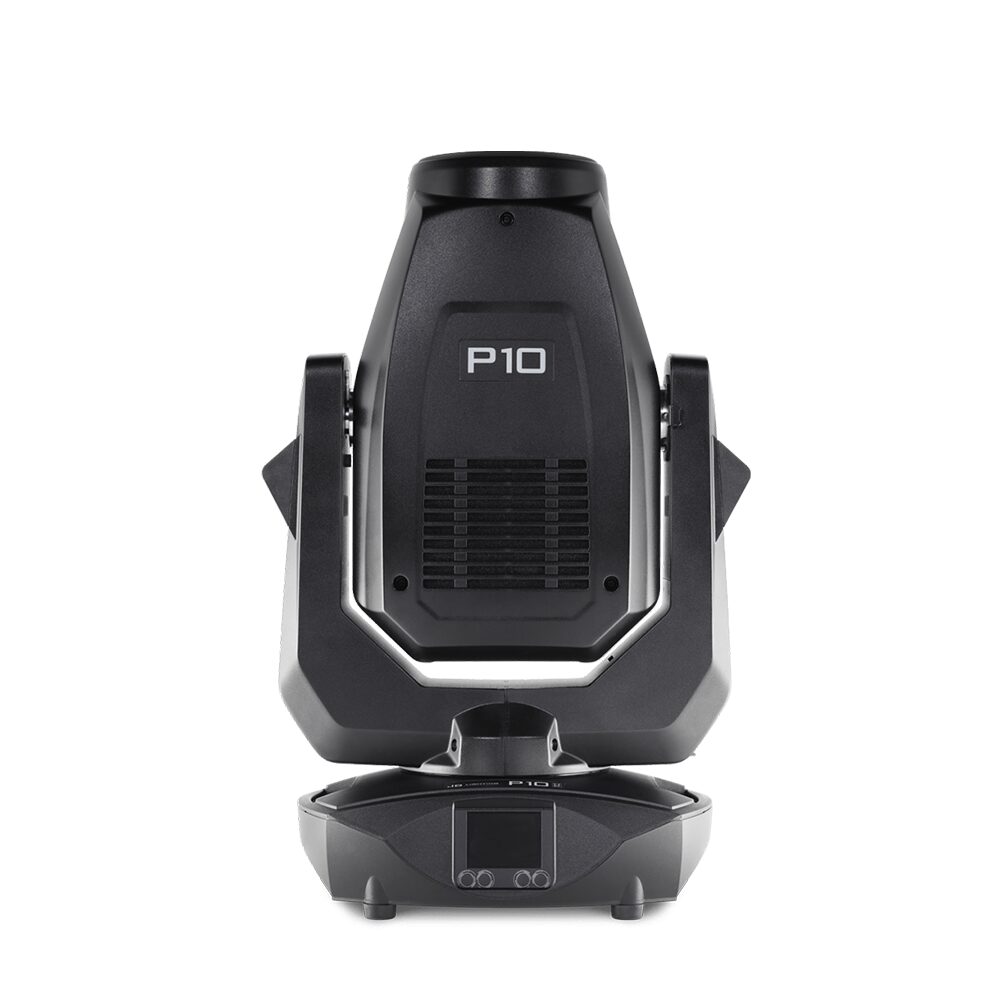

JB Lighting – P10 Profile

JB Lighting

With 330W LED power, the P10 is the perfect size for any stage. It’s extremely handy, bright and works extremely quietly and precisely.

SKU: N/A Categories: , , ,
Clear

Description

With 330W LED power, the P10 is the perfect size for any stage. It’s extremely handy, bright and works extremely quietly and precisely. It doesn’t matter whether features like the framing module or its effects are used and in which zoom range from 4°– 60° its presence is required.

Thanks to its weight of only 18 kg and its compactness, it can be easily handled and installed in the rig by one person. Naturally, the P10 also feels right at home in a permanent installation in the theatre or on TV.

Features

  • Zoom range 4°– 60° (1:15)
  • Framing module (rotatable by +/- 65°) with 4 blades, each blade rotatable by +/- 30°
  • CMY color mixing
  • Color wheel with 5 colors + High CRI filter + CTB
  • 2 gobo wheels each with 7 rotating gobos
  • 2 infinitely adjustable frost filters
  • 3-facet prism circular
  • Sparkle effect
  • Infinitely adjustable high-speed iris
  • Large light-emitting lens, 135 mm
  • 4 carrying handles for easy handling
  • Ultra-quiet 29 dB(A)
  • Graphic display, electronically rotatable and with a battery backup
  • Flicker-free operation, camera mode: 100 | 120 | 600 Hz and 3 kHz

Additional information

Optics and light source

330 W white light LED module
HP (High Power): 6800 K; 25,000 lm (15,000 lm Output); CRI ≥70
HC (High CRI): 5800 K; 16.000 lm (10.000 lm Output); CRI ≥90
WW (Warm White): 3200 K; 12.000 lm (8.000 lm Output); CRI ≥92
Zoom range: 4° – 60° (1:15)
Large light-emitting lens Ø 135 mm
> 20,000 h life time
Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz
Effects

2 gobo wheels each with 7 rotatable, interchangeable and positionable gobos including multicolor gobo + open
1 color wheel with 5 full or half colors + 2 correction filters: High CRI filter (CRI ≥90) + CTB 2 + open
P10 HP and P10 HC: variable CTO (linear) + 100% CTO
P10 WW: variable CTB (linear) + 100% CTB
CMY color mixing unit for rapid, even color mixing
CTB filter for automatic color correction with gobo application
Framing module with 4 blades – each with separate motion and rotation control, the module can be rotated by 130° (+/- 65°), each blade independently by +/- 30°
2 frost filters (soft edge/flood frost), continuously variable – optional further frost stages possible
3-facet prism circular, rotatable and indexable
Motorised, infinitely adjustable high-speed iris
Electronic dimmer 0%–100%
Electronic shutter with pre-programmed pulse and ramp functions
Sparkle effect
Focus system with auto-focus function
Movement

High-resolution, powerful 3-phase stepper motors
Precise, very fast and silent movements
540° Pan / 280° Tilt
Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net and sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
LCD display with function keys and battery buffer, electronically rotatable
Mini USB-for software update
Stand-alone mode, Master/Slave function
Error analysis and DMX analysis
Construction

Original JB-Lighting slide-in module technology
Robust, roadworthy design with 4 carrying handles
Pan/Tilt transport lock
Fan control for almost noiseless operation, 29 dB(A)
Neutrik 5pol XLR IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT
Prepared for mechanical path limitation
Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation, with four different fastening options
Electrical & thermal specification

Maximum power consumption 490 VA
Input voltage range 100 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 1,672 BTU/hr
Mechanical specification

Dimensions: W 398 x H 609 x D 264 mm
Weight: 18 kg
Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets
Accessories

ZU0029 Travel limitation
CASE40 Amptown double flight case
CASE41 Amptown 4-compartment flight case
BLOB02 Omega bracket standard
