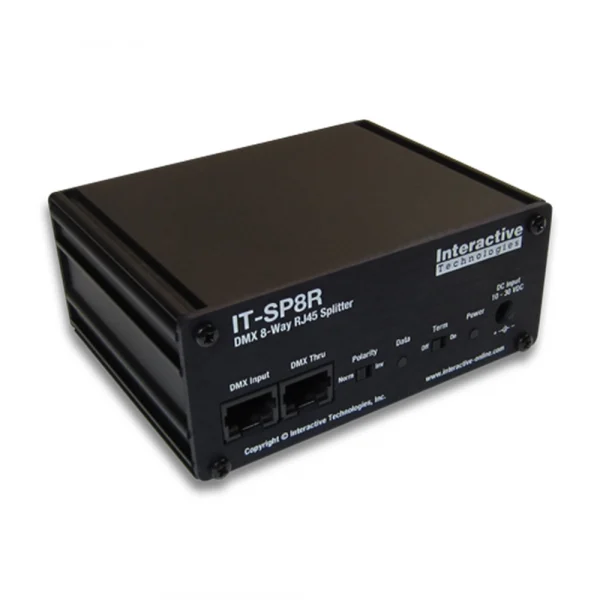

Interactive Technologies - RJ45 Splitter front showing DMX in and throughInteractive Technologies - RJ45 Splitter front showing DMX in and through

Interactive Technologies – RJ45 Splitter

Interactive Technologies

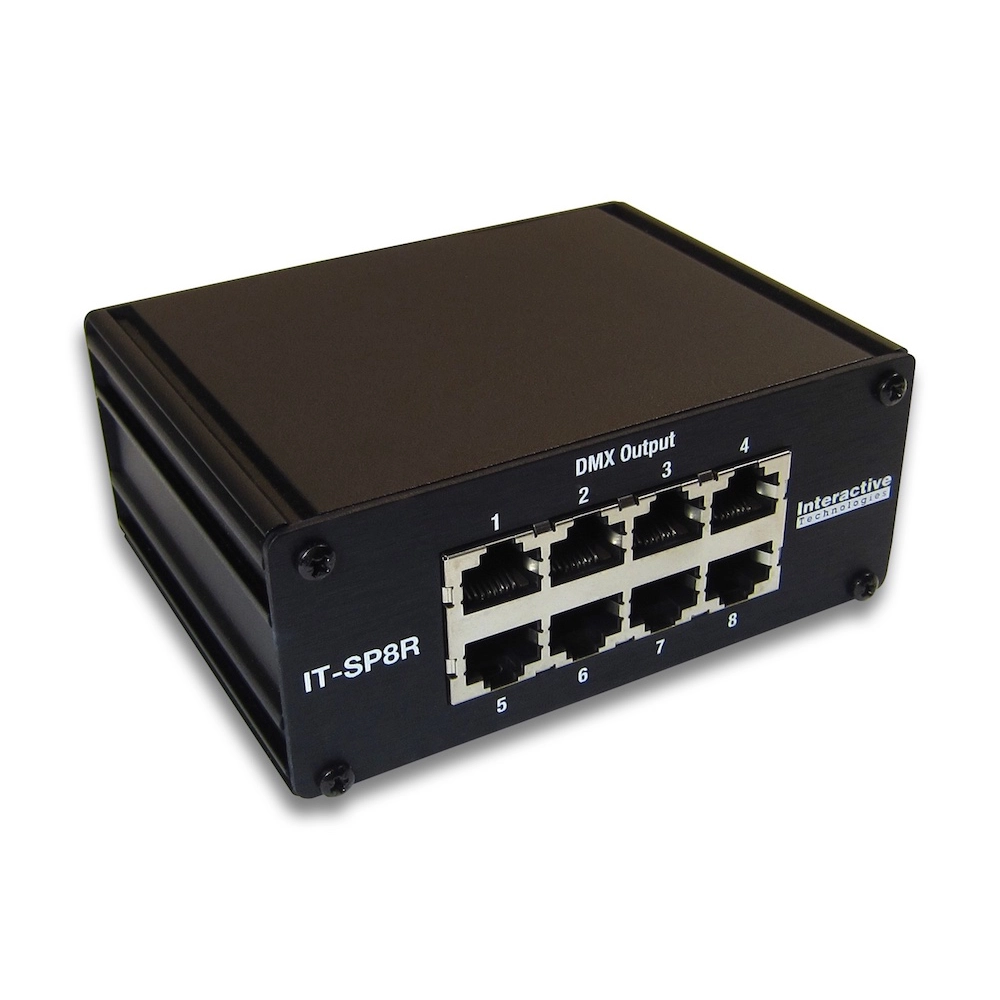

The IT-SP8R is an ultra-compact 8 Port RJ45 DMX Splitter designed for use
in installations wired with RJ45 terminated Category 5 (CAT5) cabling

Features

  • Rugged anodized aluminum housing
  • 8 Independently protected output ports
  • RJ45 Ports for each DMX connection
  • DMX Input and DMX Pass-Thru Ports for daisy-chaining multiple splitters
  • Transient Voltage Supression (TVS) and Self-Resetting Poly-Switch Fuses for each port
  • DMX signal range up to 1,800 feet (550 meters) from each output port
  • Compatibility with DMX512 and Color Kinetics® devices
  • User-selectable polarity inversion for converting between standard DMX and Color Kinetics® wiring schemes
  • User-selectable input line termination switch
  • Optional mounting bracket kits for panel, DIN Rail, or truss mounting.
  • Ultra-compact design provides 8 DMX ports in just 14in2 (95cm2)

Description

DMX Splitters are used to create multiple independent branches of a DMX signal and/or extend the usable distance of each branch. Our portable DMX Splitter, the IT-SP8R, is designed for use in installations wired with RJ45 terminated Category 5 or 6 (CAT5/6) cabling. Each of the 8 output ports on this model can generate an independently protected DMX signal capable of traveling up to 1,800 feet (550 meters). The IT-SP8R includes a DMX Pass-Thru port for cascading DMX through multiple splitters and provides a built-in DMX Termination switch. This model also features a Polarity Inversion switch which allows for easy conversion between DMX512 standard wiring and the reversed wiring used by Color Kinetics® devices.

Additional information

Weight 0.3 kg
Power

6-30VDC, 2.1 mm DC Input Jack

DMX Input

RJ45, ANSI Standard DMX or Color Kinetics

DMX Pass-Thru

RJ45, ANSI Standard DMX or Color Kinetics

DMX Output

RJ45, ANSI Standard DMX or Color Kinetics

DMX Termination

Yes, On/Off Switch

DMX Polarity Inversion

Yes, converts between DMX and Color Kinetics

Dimensions

Width: 4.29" (109 mm)
Length: 3.43" (87 mm)
Height: 1.78" (45 mm)

Storage Temperature

-40° to 176° F (-40° to 80°C)

Relative Humidity

5% to 95% noncondensing

Altitude

10,000 feet maximum

Included Items

IT-SP8R Splitter Unit
Low-profile universal input switching power supply
Self-Adhesive Rubber Feet
Getting Started Documentation

Warranty

Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service). See Limited Factory Warranty document for more details.

Downloads

Data Sheet Download
