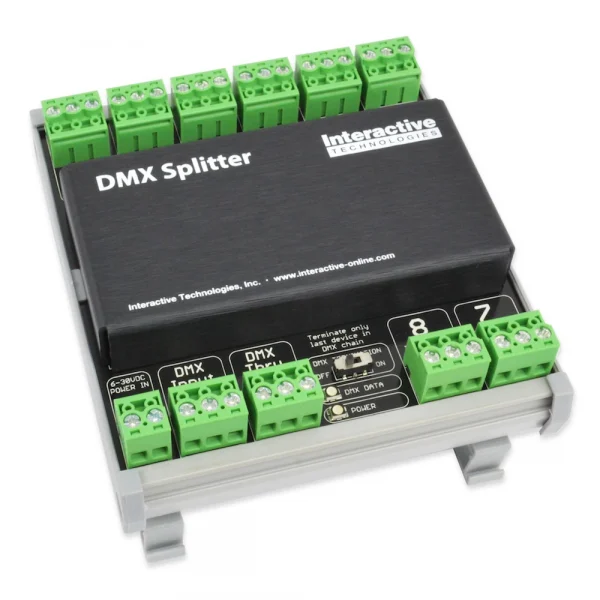

Interactive Technologies - DIN Splitter angled shot showing depth of uintInteractive Technologies - DIN Splitter angled shot showing depth of uint

Interactive Technologies – DIN Splitter

Interactive Technologies

8 output DMX for fixed installations capable of sending signal over 1,800 feet (550 meters). With DMX Pass-Thru for cascading DMX through multiple splitters.

SKU: INTIT-SP8D Categories: , , , , , ,

Description

DMX Splitters are used to create multiple independent branches of a DMX signal and/or extend the usable distance of each branch. Our DIN Rail mounted DMX Splitter, the IT-SP8D, is designed for use in permanent installations. Each of the 8 output ports on this model can generate an independently protected DMX signal capable of traveling up to 1,800 feet (550 meters). The IT-SP8D includes a DMX Pass-Thru port for cascading DMX through multiple splitters and provides a built-in DMX Termination switch.

Feature Quick View

  • Pluggable terminal blocks for each connection
  • Compact DIN Rail housing
  • Rugged anodized aluminum cover plate

Additional information

Weight 0.22 kg
Power

6-30VDC, 2-position removable terminal block
DMX Input

3-position removable terminal block
DMX Output

(8x) 3-position removable terminal block
DMX Termination

Yes, On/Off Switch
DMX Polarity Inversion

Not needed as polarity can be inverted at each terminal block
Dimensions

Width: 4.17" (106 mm)
Length: 4.82" (122 mm)
Height: 2.00" (51 mm) with DIN Rail brackets, 1.22" (31 mm) without DIN Rail brackets
Operating Temperature

-40° to 158° F (-40° to 70° C)
Storage Temperature

-40° to 176° F (-40° to 80°C)
Relative Humidity

5% to 95% noncondensing
Altitude

10,000 feet maximum
Included Items

IT-SP8D Splitter Unit
Removable DIN Rail brackets
Getting Started Documentation

Downloads

Data Sheet Download
