Interactive Technologies – CueServer 3 Pro

Interactive Technologies

High‐performance quad-core CPU, lighting playback, architectural processor, and DMX fade engine with effects generator.

SKU: N/A Categories: , , ,
Clear

Description

CueServer 3 Pro is the flagship of the CueServer 3 family and is housed in a sturdy 1U rack-mount enclosure with removable brackets.

All CueServer 3 processors are built around a high‐performance quad-core CPU, custom I/O coprocessor, and Gigabit Ethernet to run the most demanding projects up to 16,384 channels, generate beautiful effects, and to host your custom designed layouts to touchscreens and mobile devices with ease.

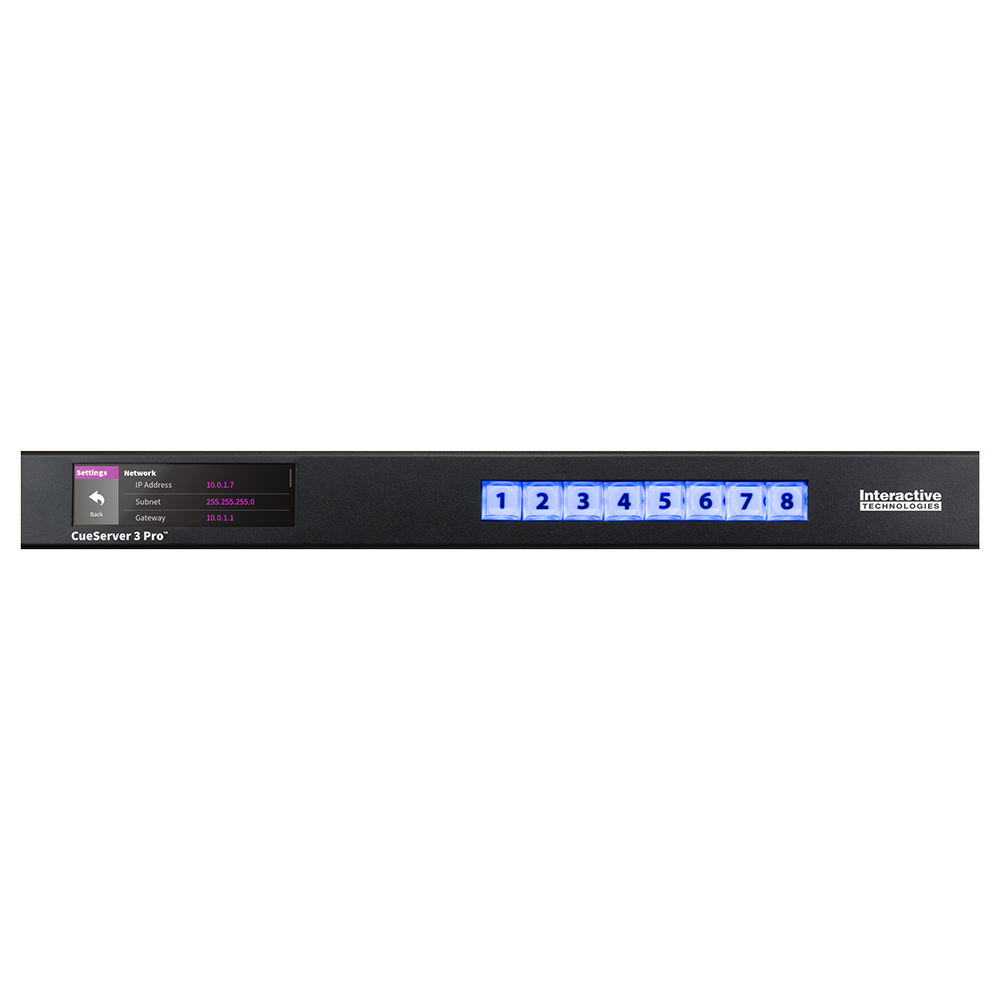

The CueServer 3 Pro offers a front-panel touchscreen for quick access to system status, configuration, and diagnostics. The front‐ panel also provides eight customizable function buttons with fully controllable RGB backlighting and field‐replaceable legends for project personalization.

On the back of the CueServer 3 Pro is an array of eight smart module slots. Each slot can optionally be fitted with a range of expansion modules such as isolated DMX ports, digital I/O functions, serial ports, relays, and more. Smart modules can be used to configure CueServer to the specific needs of each project.

CueServer 3 Pro also features dual Gigabit Ethernet ports to optionally separate lighting data from control data and stereo audio input/output for playing sound effects or music, or SMPTE timecode input.

Features

  • Completely self-contained lighting playback, architectural processor, and DMX fade engine with effects generator
  • Seamless handling of Cue Lists, Presets, and Streams
  • Control of up to 32 universes of DMX or 32 independent playback timelines
  • Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
  • Dual Gigabit Ethernet ports for separate configurable lighting data and management networks
  • Flexible module slots for installing a range of expansion modules that support DMX, I/O, Serial, Relays and more
  • Front-panel configurable function buttons with RGB backlighting and field-replaceable legends
  • Creation of lighting scenes directly or capture from external sources
  • Powerful CueScript scripting language Real-Time clock with astronomical and calendar events
  • Built-in web server for hosting custom interactive web pages
  • Multi-show storage on removable microSD memory card
  • System integration via Ethernet, Serial, Digital I/O, and Audio
  • Compatible with CueStation buttons and Insite touchscreens
  • Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
  • Native programming environment for both Mac and Windows
  • 1U rack-mounted enclosure with removable brackets

Additional information

Installable Options

DMX Channels:
1,024 (base)
16,384 (maximum)
Capacity per Show

Universe Patching: 128 sACN, Art-Net, or KiNET universes
Playbacks: Up to 32, depending on number of Channels[1]
Cues: 1,000,000 per Cue Stack[2]
Cue Stacks: Unlimited[2]
Groups: 100,000[2]
Macros: 100,000[2]
Global Rules: 1,000[2]
Timer Events: 1,000[2]
External Button Stations: 1,000[2]
Audio Clips: Unlimited[2]
Web Content: Unlimited[2]
[1]The number of channel universes times the number of playbacks must be 32 or less.
[2]These parameters may be limited by available SD Card storage space.
Protocols

Ethernet: UDP, TCP, HTTP, TELNET, NTP, Streaming ACN (sACN), Art-Net, KiNet v1/v2, CueScript, CueStation
Serial: User-Defined ASCII, CueScript, CueStation
Connections

Power: 2.1mm DC Power Input Jack
Network: (2x) RJ45 10/100/1000 Base-T Ethernet
I/O: (8x) Smart module slots, each accomodating a variety of optional modules for DMX, I/O, Serial, Relays and more
Audio: (2x) 3.5mm (1/8”) Audio Jacks for stereo audio input and output
USB: USB-C Host Port
User Interface

LCD: 4.0" Capacitive Color 480×128 LCD Touchscreen
Function Buttons: (8x) User-Defined Function Buttons with RGB backlighting and field-replaceable legends
Power

Input:
12-24VDC, 5.5 Watts (no modules installed)
Note: Add each module's power consumption to determine total wattage
Memory

Removable Card: Micro SD (FAT32 formatted cards up to 2TB)
Real Time Clock

Type: Battery-backed, 1 second resolution, less than +/-5ppm drift
Synchronization: Automatic using Network Time Protocol (NTP)
Event Triggers: Time of day, day of week, day of month, week of month, year, date range, astronomical time (relative to sunrise or sunset +/- specified offset)
Compliance

Standards: CE, UKCA, FCC, RoHS
Physical

Width:
17.1” (435 mm) wo/mounting brackets
19.0” (483 mm) w/mounting brackets
Depth: 6.0” (153 mm)
Height: 1.73” (44 mm)
Weight: 2.6 lbs. (1.17 kg)
Environmental

Operating Temperature: -13° to 158° F (-25° to 70° C)
Storage Temperature: -40° to 176° F (-40° to 80°C)
Humidity: 5% to 95%, non-condensing
Altitude: 10,000 feet maximum
