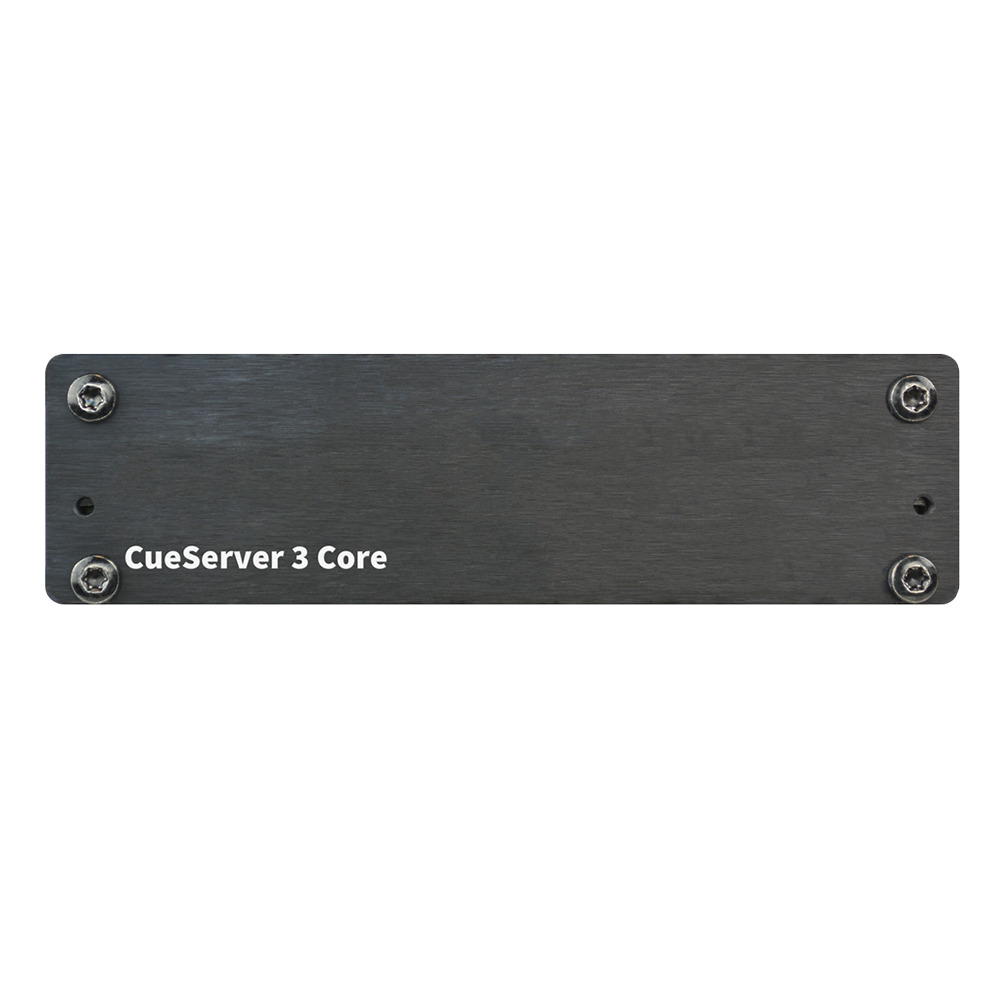

Interactive Technologies – CueServer 3 Core Front left of unitInteractive Technologies – CueServer 3 Core Front left of unit

Interactive Technologies – CueServer 3 Core

Interactive Technologies

A small, cost-effective, high-performance self-contained lighting playback, architectural processor, & DMX fade engine with effects generator.

SKU: INTCS-3110 Categories: , , , ,
Clear

Description

CueServer 3 Core is the smallest and most cost-effective of the CueServer 3 models and is housed in a rugged anodized aluminum enclosure suitable for desktop use or panel, DIN, or truss mounting using optional bracket kits.

All CueServer 3 Core processors are built around a high-performance quad-core CPU, custom I/O coprocessor, and Gigabit-capable Ethernet to run the most demanding projects up to 16,384 channels, generate beautiful effects, and to host your custom designed layouts to touchscreens and mobile devices with ease.

The CueServer 3 Core version (CS-3110) is the most cost-effective of the Core series, providing the main CueServer CPU and Gigabit Ethernet, without the extra I/O options. If a project is based solely on DMX-over-Ethernet and other network protocols, the CS-3110 is a powerful show controller without the unnecessary extras.

Features

  • Completely self-contained lighting playback, architectural processor, and DMX fade engine with effects generator
  • Seamless handling of Cue Lists, Presets, and Streams
  • Control of up to 32 universes of DMX or 32 independent playback timelines
  • Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
  • Creation of lighting scenes directly or capture from external sources
  • Powerful CueScript scripting language
  • Real-Time clock with astronomical and calendar events
  • Built-in web server for hosting custom interactive web pages
  • Multi-show storage on removable microSD memory card
  • System integration via Ethernet
  • Compatible with CueStation buttons and Insite touchscreens
  • Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
  • Native programming environment for both Mac and Windows
  • Small anodized aluminum enclosure with optional brackets

Additional information

Installable Options

DMX Channels:
1,024 (base)
16,384 (maximum)
Capacity per Show

Universe Patching: 128 sACN, Art-Net, or KiNET universes
Playbacks: Up to 32, depending on number of Channels[1]
Cues: 1,000,000 per Cue Stack[2]
Cue Stacks: Unlimited[2]
Groups: 100,000[2]
Macros: 100,000[2]
Global Rules: 1,000[2]
Timer Events: 1,000[2]
External Button Stations: 1,000[2]
Web Content: Unlimited[2]
[1]The number of channel universes times the number of playbacks must be 32 or less.
[2]These parameters may be limited by available SD Card storage space.
Protocols

Ethernet: UDP, TCP, HTTP, TELNET, NTP, Streaming ACN (sACN), Art-Net, KiNet v1/v2, CueScript, CueStation

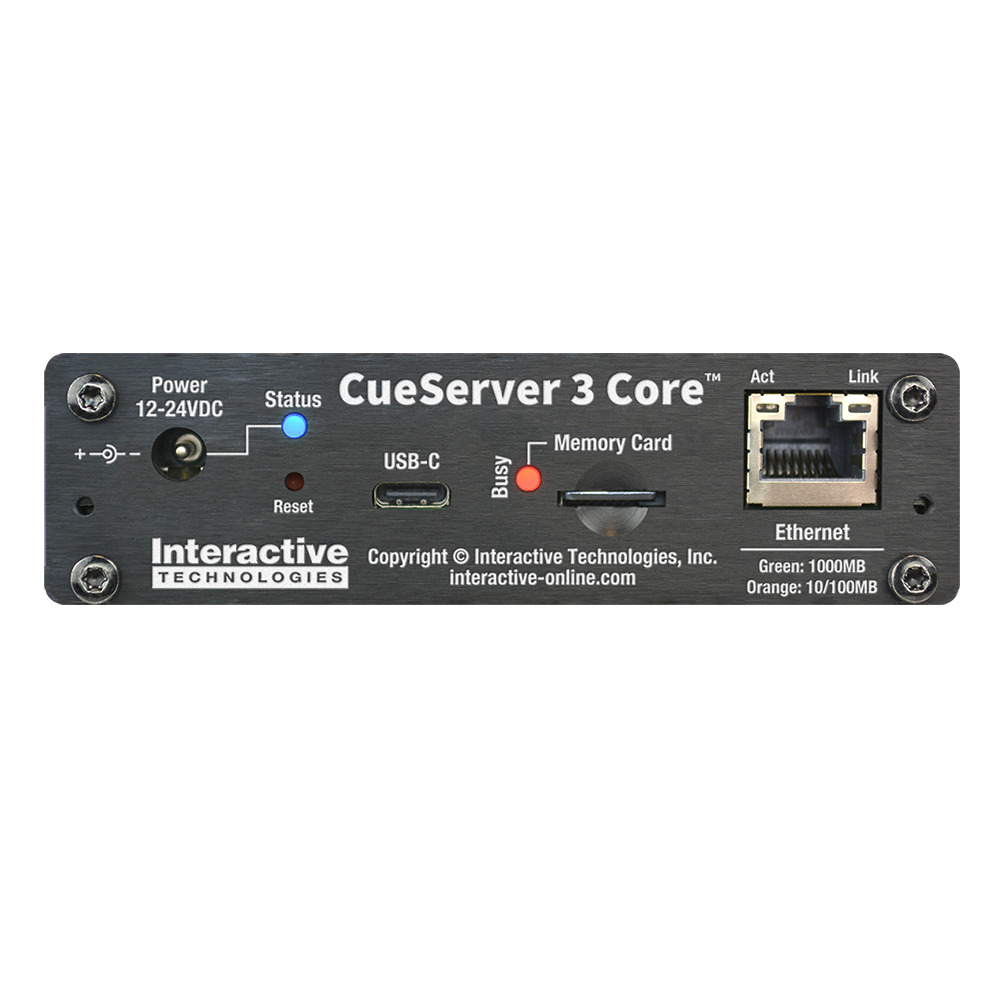

Connections

Power: 2.1mm DC Power Input Jack
Network: RJ45 10/100/1000 Base-T Ethernet
USB: USB-C Host Port
Power

Input: 12-24VDC, 4.5 Watts
Memory

Removable Card: Micro SD (FAT32 formatted cards up to 2TB)
Real Time Clock

Type: Battery-backed, 1 second resolution, less than +/-5ppm drift
Synchronization: Automatic using Network Time Protocol (NTP)
Event Triggers: Time of day, day of week, day of month, week of month, year, date range, astronomical time (relative to sunrise or sunset +/- specified offset)
Compliance

Standards: CE, UKCA, FCC, RoHS (Pending)
Physical

Width:
4.27” (109 mm) without mounting brackets
4.81” (122 mm) with vertical mounting bracket
5.13” (130 mm) with vertical DIN mounting bracket
6.15” (156 mm) with horizontal mounting brackets
Length: 3.43” (87 mm)
Height: 1.18” (30 mm)
Weight: 0.55 lbs. (0.25 kg)
Environmental

Operating Temperature: -13° to 158° F (-25° to 70° C)
Storage Temperature: -40° to 176° F (-40° to 80°C)
Humidity: 5% to 95%, non-condensing
Altitude:10,000 feet maximum

Downloads

Data Sheet Download
User Guide Download
