Interactive Technologies – CueServer 3 Core DX

Interactive Technologies

Lighting playback, architectural processor, and DMX fade engine with effects generator with Ethernet, Serial, Digital I/O, and Audio

SKU: N/A Categories: , , , ,
Clear

Description

CueServer 3 Core is the smallest and most cost-effective of the CueServer 3 models and is housed in a rugged anodized aluminum enclosure suitable for desktop use or panel, DIN, or truss mounting using optional bracket kits.

All CueServer 3 Core processors are built around a high-performance quad-core CPU, custom I/O coprocessor, and Gigabit-capable Ethernet to run the most demanding projects up to 16,384 channels, generate beautiful effects, and to host your custom designed layouts to touchscreens and mobile devices with ease.

The CueServer 3 Core DX variant (CS-3150) additionally features two built-in isolated RJ45 DMX ports that can be configured as either DMX Inputs or Outputs. The DX model includes expanded I/O features including contact closure inputs, digital outputs, RS232 serial, user-definable function buttons with RGB indicators, and stereo audio input/output for playing sound effects or music, or SMPTE timecode input.

Features

  • Completely self-contained lighting playback, architectural processor, and DMX fade engine with effects generator
  • Seamless handling of Cue Lists, Presets, and Streams
  • Control of up to 32 universes of DMX or 32 independent playback timelines
  • Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
  • Built-in isolated RJ45 DMX ports configurable as inputs or outputs
  • Front-panel configurable function buttons with RGB indicator LEDs
  • Creation of lighting scenes directly or capture from external sources
  • Powerful CueScript scripting language
  • Real-Time clock with astronomical and calendar events
  • Built-in web server for hosting custom interactive web pages
  • Multi-show storage on removable microSD memory card
  • System integration via Ethernet, Serial, Digital I/O, and Audio
  • Compatible with CueStation buttons and Insite touchscreens
  • Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
  • Native programming environment for both Mac and Windows
  • Small anodized aluminum enclosure with optional brackets

Additional information

Installable Options

DMX Channels:
1,024 (base)
16,384 (maximum)
Capacity per Show

Universe Patching: 128 sACN, Art-Net, or KiNET universes
Playbacks: Up to 32, depending on number of Channels[1]
Cues: 1,000,000 per Cue Stack[2]
Cue Stacks: Unlimited[2]
Groups: 100,000[2]
Macros: 100,000[2]
Global Rules: 1,000[2]
Timer Events: 1,000[2]
External Button Stations: 1,000[2]
Audio Clips: Unlimited[2]
Web Content: Unlimited[2]
[1]The number of channel universes times the number of playbacks must be 32 or less.
[2]These parameters may be limited by available SD Card storage space.
Protocols

Ethernet: UDP, TCP, HTTP, TELNET, NTP, Streaming ACN (sACN), Art-Net, KiNet v1/v2, CueScript, CueStation
Serial: User-Defined ASCII, CueScript, CueStation

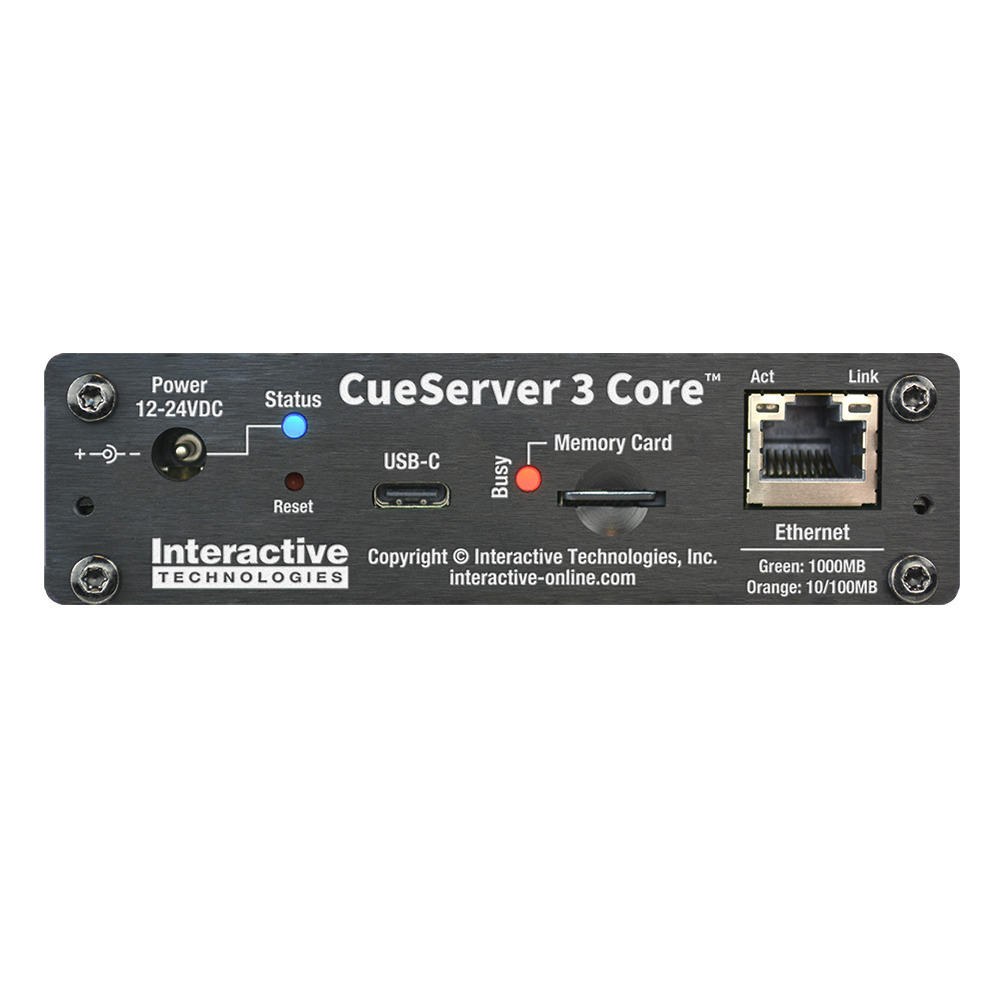

Connections

Power: 2.1mm DC Power Input Jack
Network: RJ45 10/100/1000 Base-T Ethernet
DMX: (2x) Bi-directional RJ45 DMX ports
I/O: 10-Position Pluggable Terminal Block for 2 Contact Closure Inputs, 2 Low-Voltage Digital Outputs (500mA each), RS-232 Serial Port, Auxiliary 5VDC Output (200mA Max), and DC Power In/Out (VIN)
Audio: (2x) 3.5mm (1/8”) Audio Jacks for stereo audio input and output
USB: USB-C Host Port
User Interface

Function Buttons: (2x) User-Defined Function Buttons with RGB LEDs
Power

Input: 12-24VDC, 4.5 Watts
Memory

Removable Card: Micro SD (FAT32 formatted cards up to 2TB)
Real Time Clock

Type: Battery-backed, 1 second resolution, less than +/-5ppm drift
Synchronization: Automatic using Network Time Protocol (NTP)
Event Triggers: Time of day, day of week, day of month, week of month, year, date range, astronomical time
(relative to sunrise or sunset +/- specified offset)
Compliance

Standards: CE, UKCA, FCC, RoHS (Pending)
Physical

Width:
4.27” (109 mm) without mounting brackets
4.81” (122 mm) with vertical mounting bracket
5.13” (130 mm) with vertical DIN mounting bracket
6.15” (156 mm) with horizontal mounting brackets
Length: 3.43” (87 mm)
Height: 1.18” (30 mm)
Weight: 0.55 lbs. (0.25 kg)
Environmental

Operating Temperature: -13° to 158° F (-25° to 70° C)
Storage Temperature: -40° to 176° F (-40° to 80°C)
Humidity: 5% to 95%, non-condensing
Altitude: 10,000 feet maximum

Downloads

User Guide Download
Data Sheet Download
