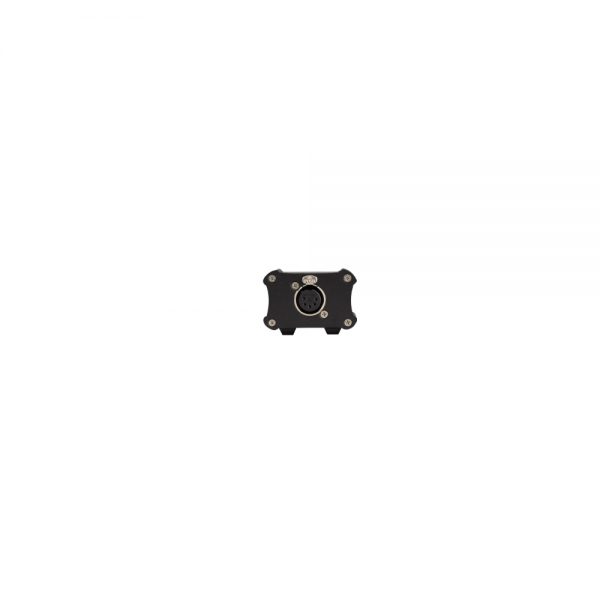

High End System - USB DMX WIDGET for saleHigh End System - USB DMX WIDGET for sale

ETC – USB DMX WIDGET – High End Systems

ETC

DMX Widgets allow you to easily expand your console’s DMX output. Simply attach a USB DMX Widget and – just like that – you have more DMX outputs.

SKU: HIG74040011 Categories: , , ,

Description

DMX Widgets allow you to easily expand your console’s DMX output. Simply attach a USB DMX Widget and – just like that – you have more DMX outputs. Each standard DMX Widget adds one universe. The DMX Super Widget adds four ports and universes, and the DMX Super Duper Widget adds eight. The MIDI/LTC Widget provides a single Linear Timecode input and MIDI in/out/thru for any Hog 4 OS consoles and any Hog 4 PC. When used in conjunction with Hog 4, Full Boar 4, or Road Hog 4, the LTC Widget provides a powerful level of timecode functionality.

Feature Quick View

DMX WIDGETS

  • USB connection to any Hog 4 console as well as Hog 4 PC
  • Single DMX-512 output per 5-pin XLR connector
  • Multiple USB DMX Widgets can be connected via USB Hub
  • Kensington security slot

Additional information

Weight 0.3 kg
General

USB connection to any Hog 4 console as well as Hog 4 PC
Rugged, stackable aluminum housing
Single DMX-512 output on 5-pin XLR connector
Supports up to 512 output channels
One USB input connector providing power
Multiple USB DMX Widgets can be connected via USB Hub
Kensington security slot
Storage Temperature 20-60°C / 0-140°F
Compliance: ETL, CETL, CE

Downloads

Data Sheet Download
