Description

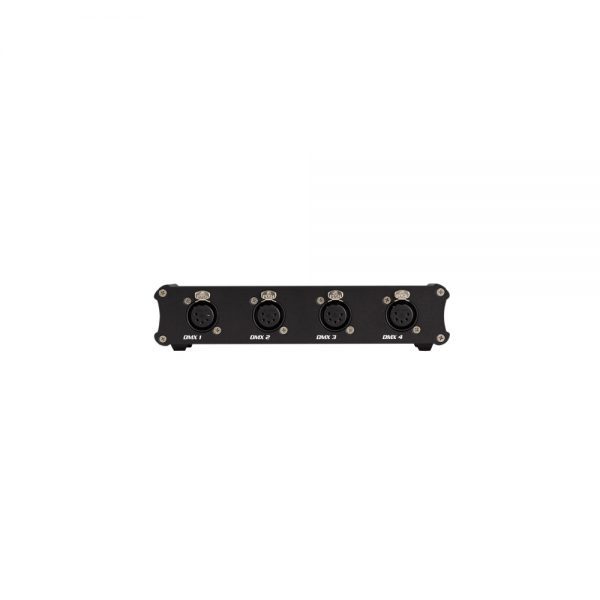

The USB DMX Super Widget provides four universes of DMX-512 output from any Hog 4 console or Hog 4 PC. Up to two DMX Super Widgets may be connected at once via a USB Hub to provide eight full universes of DMX-512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only one USB DMX Super Widget can be connected to the Road Hog 4.
With Hog 4 PC, attaching USB DMX Super Widgets also unlocks the corresponding universes of Art-Net and sACN.
Feature Quick View
- USB connection to any Hog 4 console as well as Hog 4 PC
- Rugged, stackable aluminum housing
- Four DMX 512 outputs on 5-pin XLR connectors
- Supports up to 2048 output channels
- One USB input connector
- Up to two USB DMX Widgets can be connected via USB Hub
- Kensington security slot
- External PSU included
- Storage Temperature 20-60°C / 0-140°F
- Compliance: ETL, CETL, CE
