GLP_X4-Bar-10_Clear-DiffuserGLP_X4-Bar-10_Clear-Diffuser

GLP – X4 Bar 10 Batten

Glp

10 LEDs with high quality optics ensure a smooth homogenized output of broad pastel and saturated colours with exceptional dimming.

SKU: N/A Categories: , , ,
Clear

Description

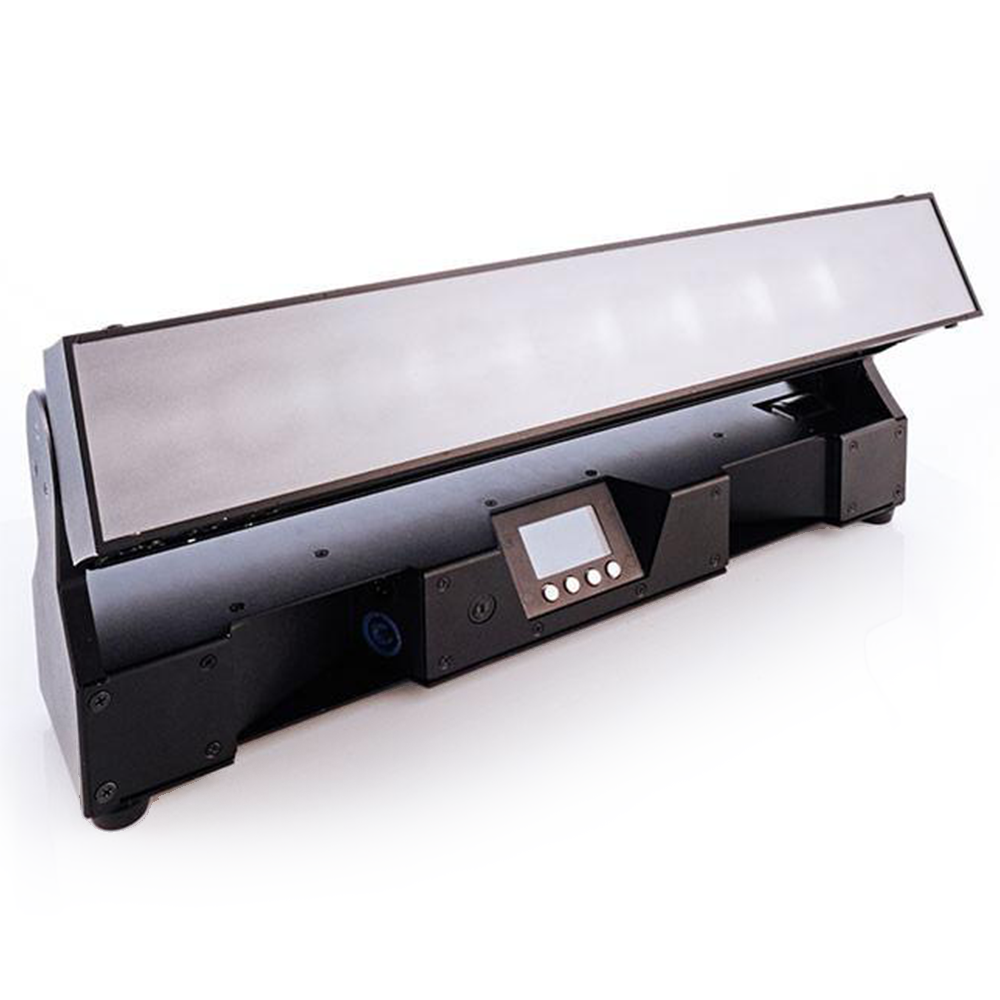

The impression X4 Bar 10 is a high-performance LED batten featuring ten tightly packed 15W RGBW LEDs that deliver a seamless, full line of light. High-quality optics ensure smooth, homogenised output across the batten, with a rich palette of pastel and saturated colours. GLP’s exceptional dimming system maintains consistent colour without shifts, producing smooth, even fades.

The fixture includes full DMX pixel-mapping capabilities and a versatile 7:1 zoom range from 7° to 50°, allowing everything from narrow light curtains to wide-angle wash effects.

A motorised tilt adds dynamic beam movement or quick refocusing. Multiple X4 Bar 10 units can be easily aligned with consistent pixel spacing between fixtures, making them perfect for scalable designs and large-format installations.

Video

impression X4 Bar

Mark Ravenhill presenting the new impression X4 Bar…

Additional information

Light Source

Type: RGB LED
Count: 10
Power: 15 W
Lifetime: 50,000 h
CRI (Ra): 69
Optical System

min. Zoom: 7°
max. Zoom: 50°
Dynamic Effects

Color Mixing: RGBW, RAW
CTC: variable 2,500 – 10,000 K
Control & Programming

Control Modes: Compressed, HighRes, Pixel-Mapping
High-Res Channels: Tilt
Setting & Addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM
Software Update: DMX Link via Dprog
Connectors

Power Input: Neutrik powerCON TRUE1 In/Out
Signal Connection: Neutrik XLR 5-Pin In/Out
Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating: IP20
Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
Power Supply Unit: auto-ranging electronic switch-mode
Typical Power (@ 230 V): 230 W
min. Power (@ 230 V): 33.3 W
Fuse: T5A 20mm
Installation

Mounting: 2 pairs of 1/4-turn locks, 2 eyelets for safety cable, M10 thread
Orientation: any
Location: Dry
Movement

Tilt Angle: 210°
Thermal Specifications

Cooling: combined convection and forced air
Overheating Protection: automatic
min. Ambient Temperature: 5 °C / 40 °F
max. Ambient Temperature: 45 °C / 115 °F
Total Heat Dissipation: 785 BTU/hr
Approvals & Specifications

Risk Group EN 62471: Risk Group 2
Dimensions & Weight

Height (head straight up): 240 mm / 9.4 in
Width (across yoke): 500 mm / 19.6 in
Depth: 100 mm / 3.9 in
Weight (net): 8 kg / 17.6 lbs
