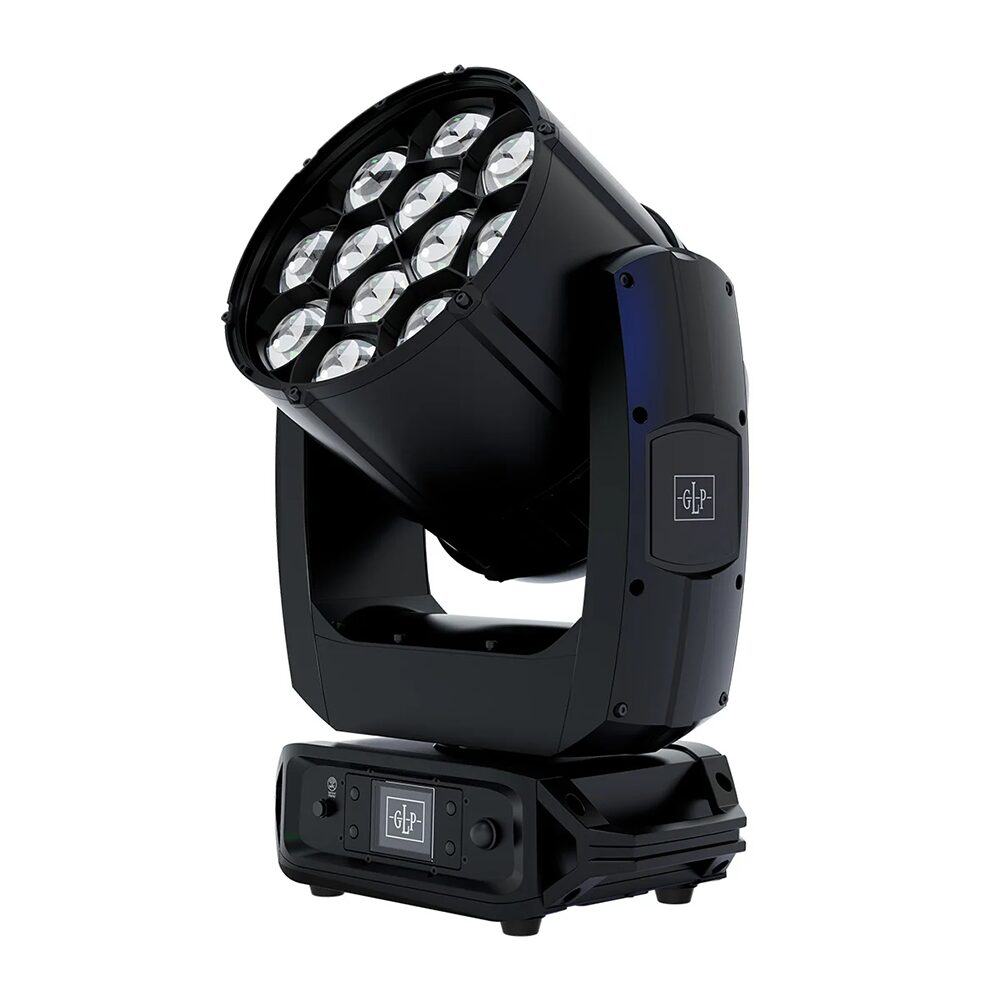

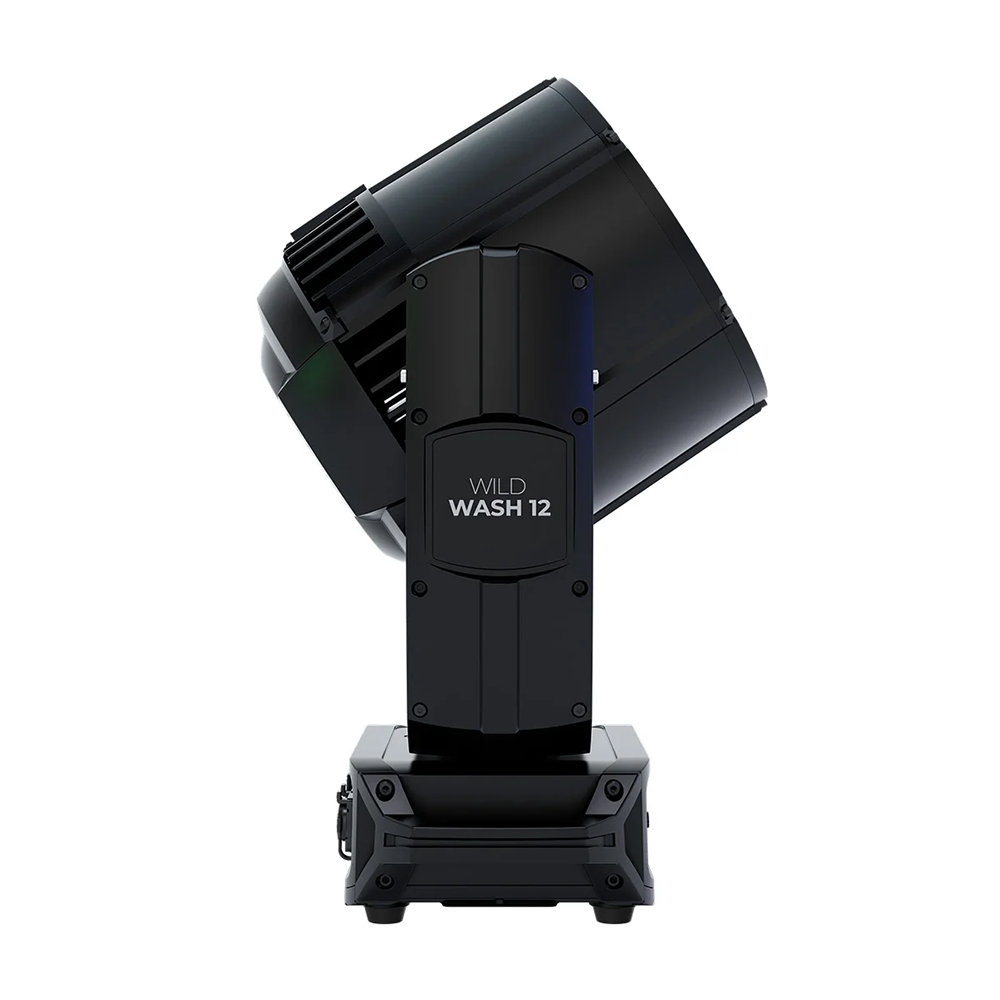

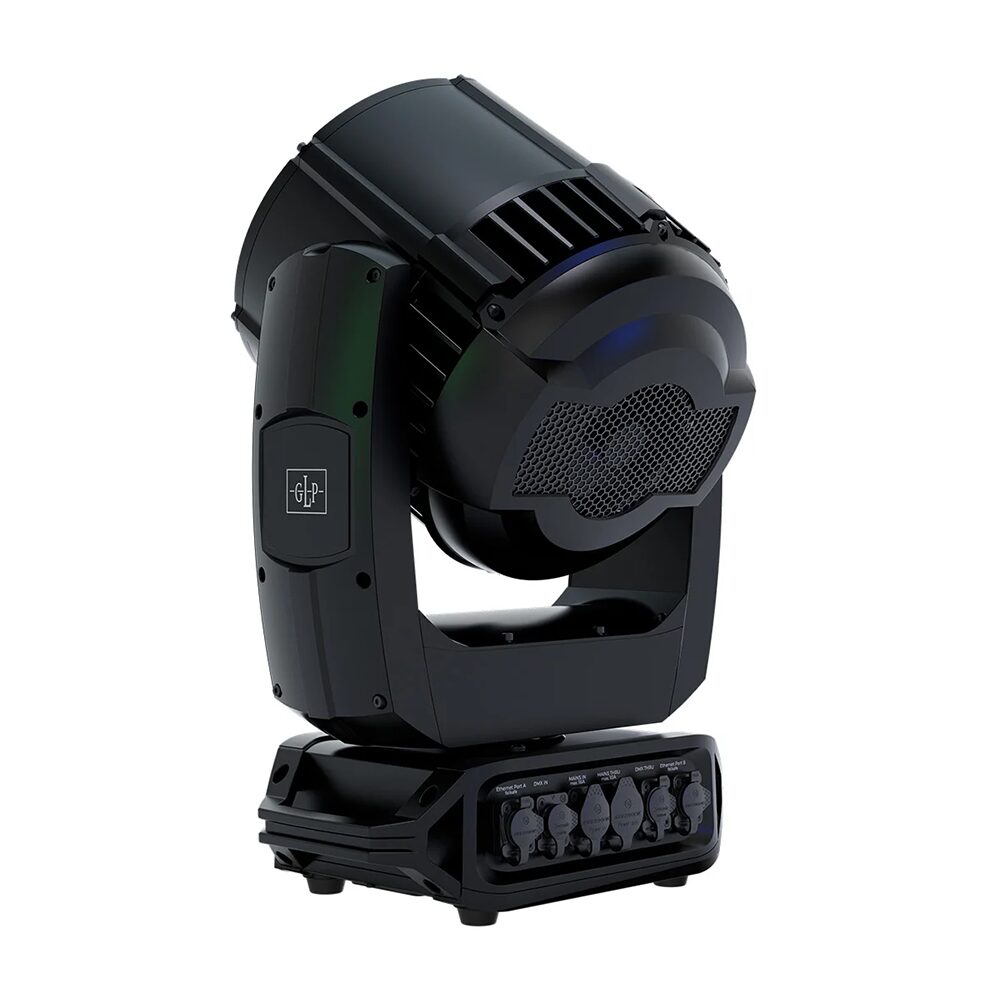

GLP – WildWash 12

Glp

A compact LED wash with 12x 40W RGBL LEDs, up to 5,790 lm and iQ.Gamut Color synergy. The zoom optics offer very narrow 3.5° beam angle up to to up to 54° field angle for homogeneous illumination.

SKU: 7820 Categories: , , , ,

Description

The GLP WildWash 12 is a compact LED wash with 12x 40W RGBL LEDs, up to 5,790 lm and iQ.Gamut Color synergy. The zoom optics offer very narrow 3.5° beam angle up to to up to 54° field angle for homogeneous illumination. It features the GLP menu display with iQ.Mesh for easy setup and wireless updates. Flexible mounting is supported via integrated camlocks, and each unit includes a GLP DRX Sleeve. Ideal for efficient, high-performance use in clubs, small installations, mobile productions, and festivals.

Features

Part of the Wild Series

As part of GLP Wild Series, the fixture fits perfectly to the existing products of the series. Same control philosophy, range of functions and the Color synergy within the iQ.Gamut technology.

Ready for all events

IP65 rated housing for indoor and outdoor applications from -10°C to +45°C ambient temperature. Robust housing design protected against wind, rain, dust, dirt, fog fluid and confetti particles.

GLP iQ.Mesh & iQ.Service

Gone are the days of searching for update tools. Welcome to the age of the internet and mobile devices. Comfortable wireless firmware updates, information readout, advanced services, fixture configuration and control options by mobile device app (GLP iQ.Service App).

Calibrated Colormix (iQ.Gamut) with defined White Points

The GLP iQ.Gamut technology ensures uniform colors and intensities, particularly good pastel colors in addition to highly saturated primary colors. That gives perfectly synnergy to the well loved GLP X5 Series, GLP TWYN, GLP Creos and GLP WildBar 16.

Smart and Easy Control Modes

Simple and structured control modes enable quick understanding and easy patching. The Basic, Normal, Segmented and individual Pixel Modes are build on each other, so that re-patching is possible without any problems. This saves time and nerves – especially when things have to be done quickly.

Easy logistic and quick setup

The included DRX Dual Sleeve allows 6 fixtures per standard case. PowerCon True1 thru and max. 600 W power consumption allows quick daisy chaining of up to 4 fixture (EU).

Compact and Low Weight

Weighing only 16 kg, the light is easy to handle and there is no need to worry about static overload.

Part of the Wild Series

As part of GLP Wild Series, the fixture fits perfectly to the existing products of the series. Same control philosophy, range of functions and the Color synergy within the iQ.Gamut technology.

Additional information

Weight 18.7 kg
Light Source

Type: RGBL LED
Count: 12
Power: per pixel: 40 W, total: 480 W
Light Source Lifetime: 50,000 h
LED Refresh Rate: 4 selectable PWM Modes

Optical System

Total Output: up to 5,790 lm
Peak Luminous Intensity: 1.08 Mcd
min. Zoom: 3.5°
max. Zoom: 54°
Zoom Ratio: 1:19
Light Aperature: 225 mm / 8.85 in

Dynamic Effects

Dimmer: 0 – 100%, 16 bit
Dimming Curves: linear, S-Curve, square
Shutter Frequency: 3 Hz to 24 Hz

Control & Programming

Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh
Dimming Curves: 2
Performance Modes: 3
Fan Modes: 4
Setting and Addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone: Other Control Options
Pattern-FX-Engine: Software Update
DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool

Connections

Power Connection: Seetronic TRUE1 In/Out
Signal Connection: Neutrik XLR 5-Pin In/Out, 2x-ethercon-inout-failsafe

Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating: IP65
Construction Features: Tilt-Lock-System, Base Handles

Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
Power Supply Unit: auto-ranging electronic switch-mode
max. Power (@ 230 V): 600 W

Installation

Mounting: eyelets for safety cable, 4 pairs of 1/4-turn locks for 2 Installation Brackets
Orientation: any
Location: Indoor temporary, Outdoor temporary
min. Distance to Combustible Materials: 0.1 m
min. Distance to Illuminated Surfaces: 1.0 m

Shipping

Single Fixture: carton, DRX Sleeve/s (included)

Thermal Specifications

Cooling: combined convection and forced air
min. Ambient Temperature: -10 °C / 14 °F
max. Ambient Temperature: 45 °C / 113 °F

Dimensions

Height: 484 mm / 19.1 in
Width (across yoke): 345 mm / 13.5 in
Depth: 264 mm / 10 in
