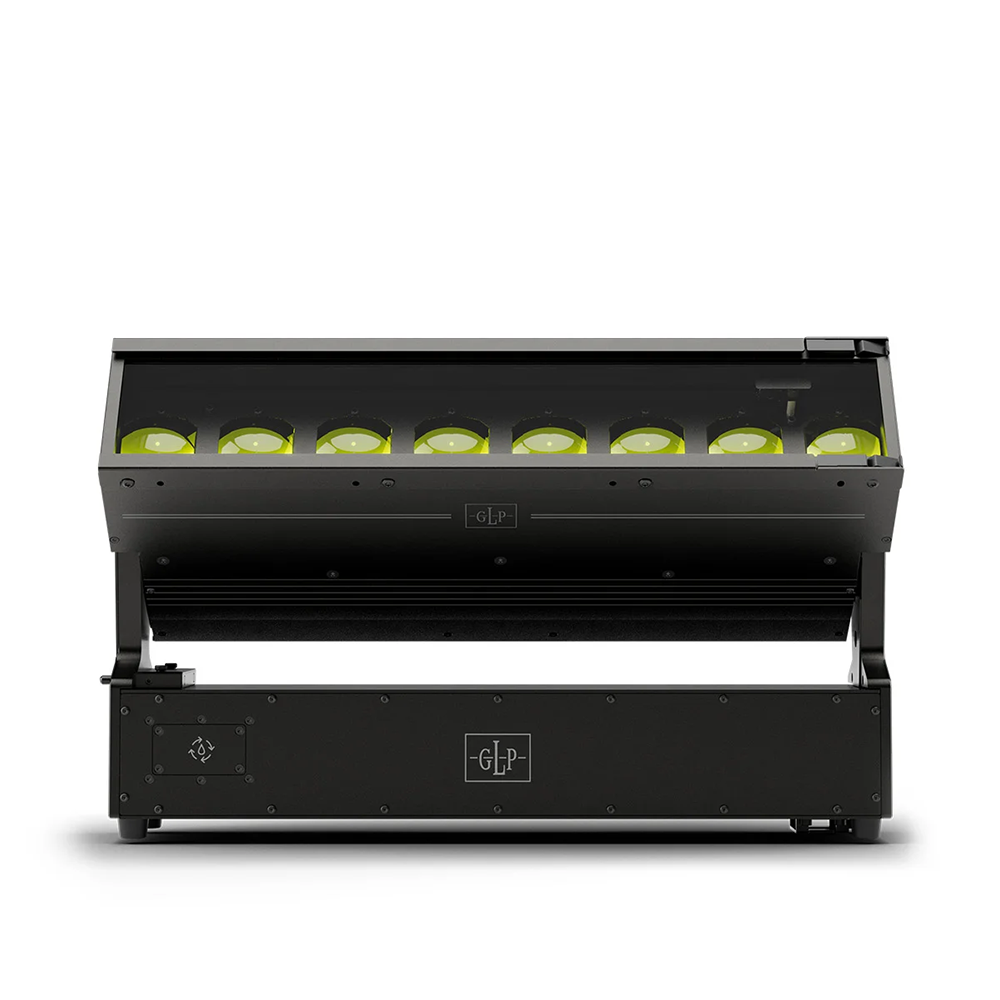

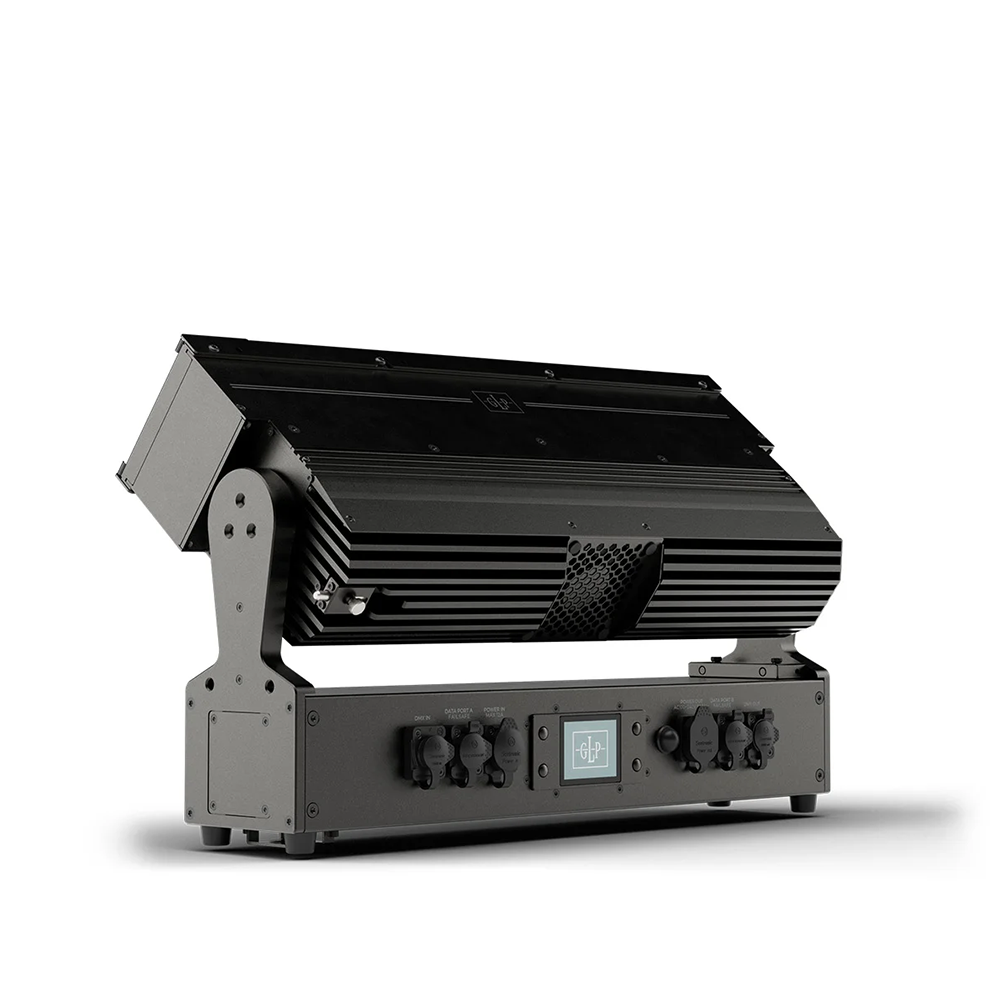

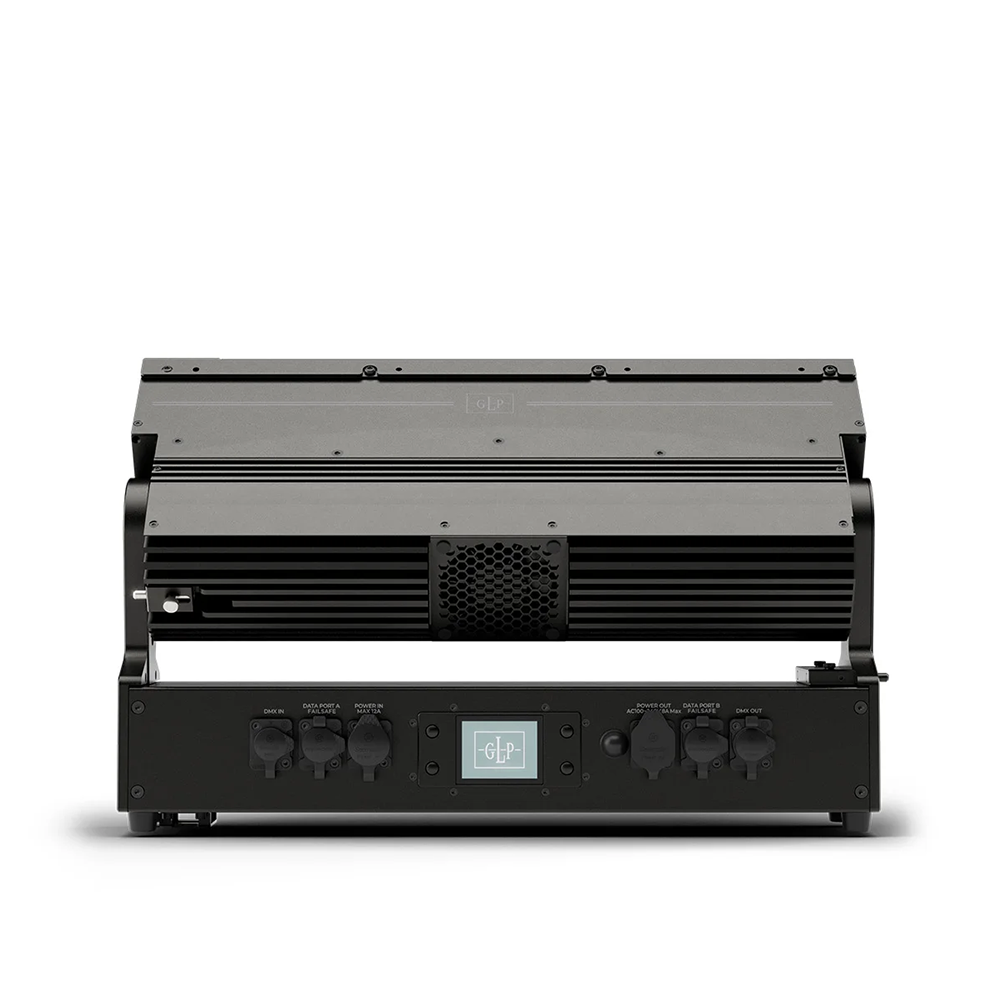

GLP – WildBar 8

Glp

The WildBar 8 brings the proven performance and creative flexibility of the WildBar family into a compact new format.

Features

  • IP65-certified LED tilt bar
  • Up to 4,500 lm light output
  • Motorised 200° tilt
  • Zoom range from 4° to 44°
  • 13.5 kg compactness, efficiency and high performance
SKU: 1112601-1 Categories: , , ,

Description

Developed in response to strong demand from lighting designers and production professionals, it combines eight powerful RGBLime LEDs with a fast motorized tilt and an extensive zoom range. Its shorter housing makes it ideal for tighter spaces, smaller stages, scenic integration and applications where the WildBar 16 would simply be too large.

Thanks to GLP’s patented seamless pixel pitch technology, the WildBar 8 can be combined directly with the WildBar 16 while maintaining perfectly consistent spacing between every LED. Different fixture lengths can therefore be mixed freely to create one continuous visual line without visible interruptions.

With its slim design, IP65-rated construction and signature GLP color performance, the WildBar 8 delivers the full WildBar experience in a more compact and versatile package.

Different sizes. One seamless WildBar family.

Additional information

Light Source

Type: RGBL LED
Count: 16
Power: per pixel: 40 W
Light Source Lifetime: 50,000 h
CRI (Ra): 76
TLCI: 67
TM-30-15: 79 / 110
Optical system

Total Output: up to 4,500 lm
Peak Luminous Intensity: 383 kcd
min. Zoom: 4°
max. Zoom: 44°
Zoom Ratio: 1:11
Dynamic Effects

Color Mixing: RGBL
Dimmer / Shutter: 0 – 100%, 16 bit
Shutter Frequency: 3 Hz to 24 Hz
Control and Programming

Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh
High-Res Channels: Dimmer, Tilt
Dimming Curves: linear, soft, S-Curve
Performance Modes: Fast, Normal (Balanced), Smooth
Fan Modes: regulated, high, medium, low
PWM: Low, Optimal, High 1, High 2
Setting and Addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, 1 Scene Stand Alone
Other Control Options: Pattern-FX-Engine
Software Update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool
Connections

Power Connection: seetronic-powercon-true1-inout
Signal Connection: seetronic-xlr-5-pin-in, seetronic-ethercon-porta-b-failsafe
Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating: IP65
Construction Features: Tilt-Lock-System, Alignment System, optional: Frontfilter Adapter
Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
Power Supply Unit: auto-ranging electronic switch-mode
max. Power (@ 230 V): 350 W
Installation

Mounting: 4 pairs of 1/4-turn locks, eyelets for safety cable
Orientation: any
Location: Indoor temporary, Outdoor temporary
min. Distance to Combustible Materials: 0.1 m
min. Distance to Illuminated Surfaces: 1.0 m
Movement

Tilt: 200°, 16 bit
Thermal Specifications

Cooling: combined convection and forced air
min. Ambient Temperature: -10 °C / 14 °F
max. Ambient Temperature: 45 °C / 113 °F
Dimensions & Weight

Height: 321 mm / 13 in
Height (head straight up): 306 mm / 12 in
Width (across head): 500 mm / 20 in
Depth: 112.7 mm / 4.5 in
Weight: 13.5 kg / 30 lbs

Downloads

Data Sheet Download
