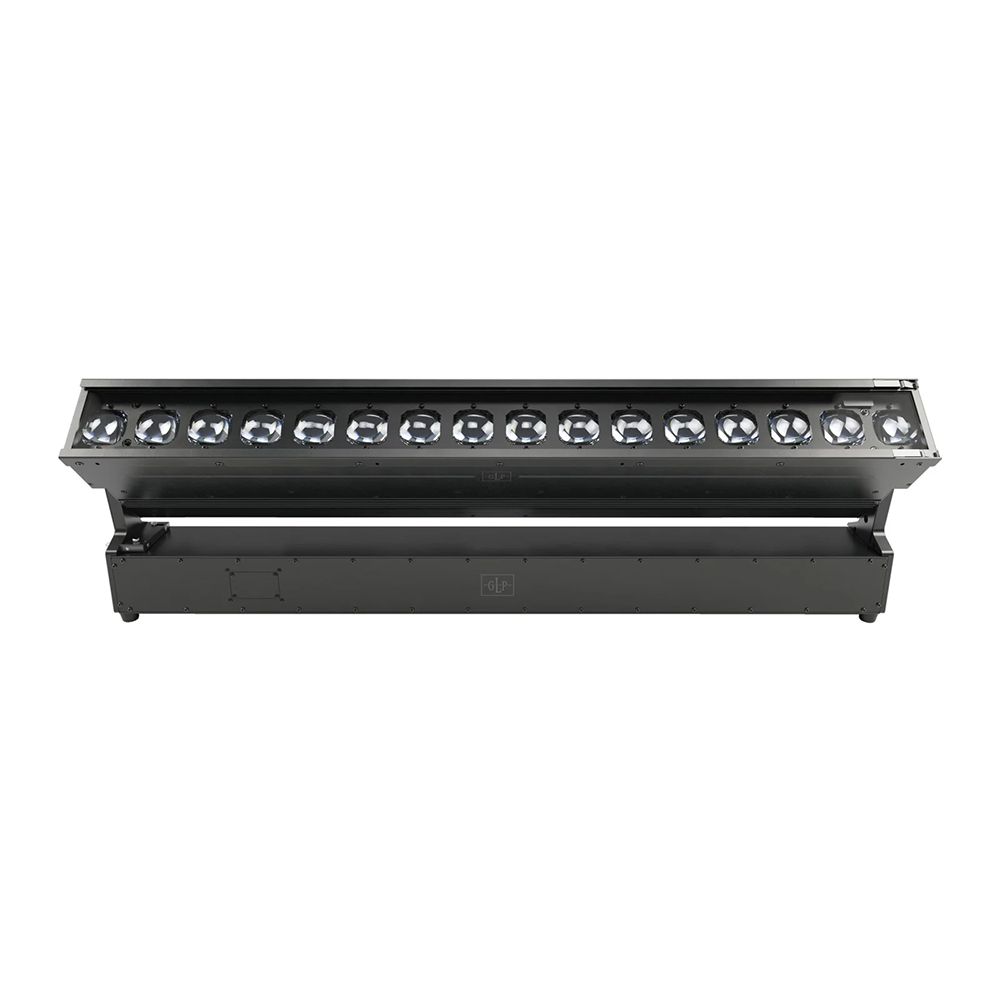

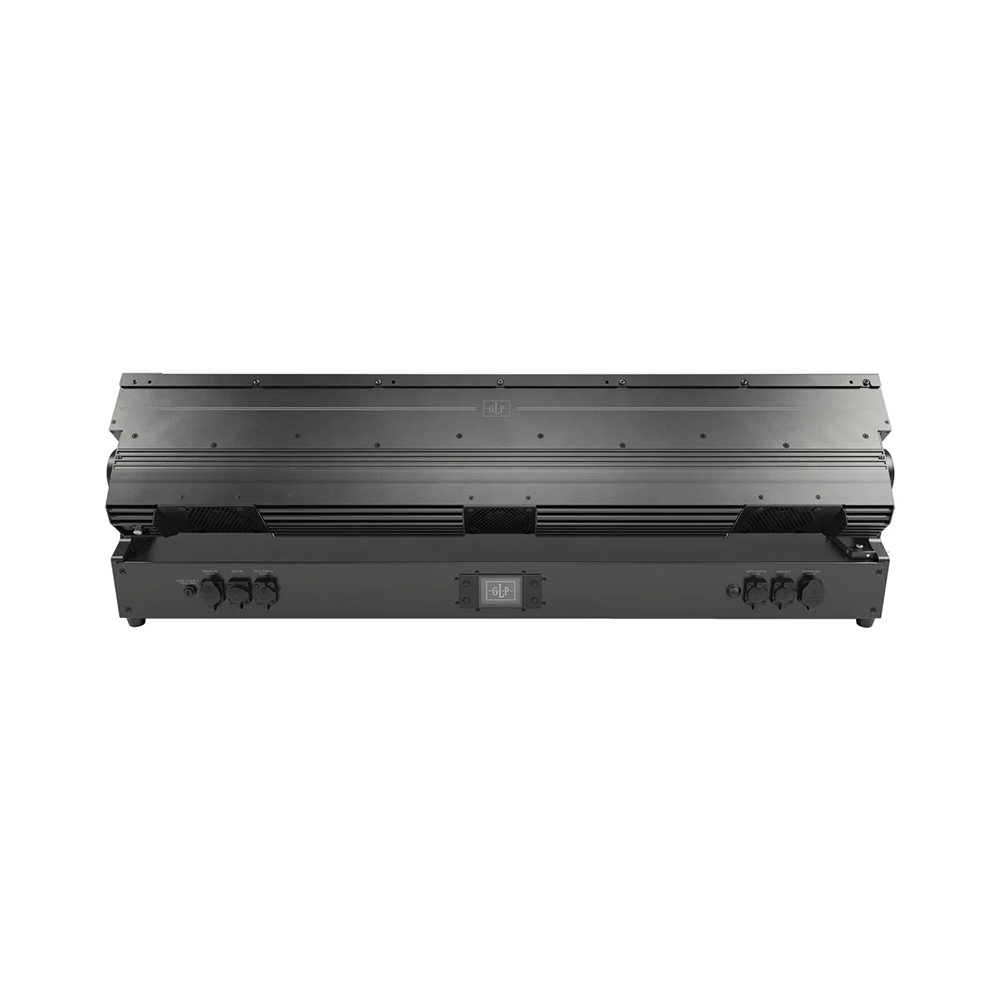

GLP – Wildbar 16

Glp

The GLP WildBar 16 is a powerful outdoor-rated LED tilt bar with 16 x 40W RGBL LEDs, motorised 200° tilt, and variable zoom from 4° to 44°. IP65-rated and media-server ready with pixel mapping and iQ.Mesh integration.

Features

  • 16 x 40W RGBL LEDs: Delivers a massive 10,300 lumens with rich, vibrant colours and a broad colour gamut.
  • Motorised 200° Tilt & Variable Zoom: Achieve everything from tight 4° beams to wide 44° washes, adding dynamic motion and depth to your design.
  • IP65 Rated: Built to handle rain, dust, and dirt, the WildBar 16 is ideal for outdoor events, concert tours, and permanent installs.
  • Lightweight, Road-Ready Design: Weighing just 23 kg (50.5 lbs), it’s built tough without compromising on portability
SKU: GLP7453 Categories: , , ,

Description

The GLP WildBar 16 sets a new standard for outdoor LED bar fixtures, blending powerful performance with versatile control in a rugged, weatherproof design. Designed for festivals, open-air stages, and demanding environments, the WildBar 16 is your go-to tool for dramatic washes, piercing beams, and precision control.

Advanced Control Options:

Supports DMX, RDM, ArtNet, sACN, and GLP iQ.Mesh for seamless integration into complex setups.

Multi-patch functionality allows for precise pixel mapping via media servers or lighting consoles.

Whether you’re painting a stage with light or crafting detailed pixel effects, the GLP WildBar 16 delivers uncompromising performance and creative control in any setting.

Additional information

Light Source

Type: RGBL LED
Power: 16x 40 W
Light Source Lifetime: 50,000 h
LED Refresh Rate: 4 selectable PWM Modes
Optics

Total Output: 10,300 lm
Peak Luminous Intensity: 561 kcd
min. Zoom: 4°
max. Zoom: 44°
Zoom Ratio: 0.05
Dynamic Effects

Color Mixing: RGBL
Dimmer / Shutter: 0 – 100%, 16 bit
Control and Programming

DMX Channels: 28, 79
Control Modes: 2
Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh
High-Res Channels: Dimmer, Tilt
Dimming Curves: linear, soft, S-Curve
Performance Modes: Fast, Normal (Balanced), Smooth
Fan Modes: regulated, high, medium, low
PWM: Low, Optimal, High 1, High 2
Setting and Addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, 1 Scene Stand Alone
Other Control Options: Pattern-FX-Engine
Software Update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool
Connections

Power Connection: Neutrik powerCON TRUE1 In/Out
Signal Connection: Neutrik XLR 5-Pin In, Neutrik etherCON In/Out (failsafe)
Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating: IP65
Construction Features: Tilt-Lock-System, Alignment System, optional: Frontfilter Adapter
Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
Power Supply Unit: auto-ranging electronic switch-mode
max. Power (@ 230 V): 700 W
Installation

Mounting: 4 pairs of 1/4-turn locks, eyelets for safety cable
Orientation: any
Location: indoor, outdoor
min. Distance to Combustible Materials: 0.1 m
min. Distance to Illuminated Surfaces: 1.0 m
Movement

Tilt: 200°, 16 bit
Thermal Specifications

Cooling: combined convection and forced air
min. Ambient Temperature: -10 °C / 14 °F
max. Ambient Temperature: 45 °C / 113 °F
Dimensions & Weight

Height (without rubber feet): 306 mm / 12 in
Height (with rubber feet): 321 mm / 13.3 in
Width (across yoke): 1,000 mm / 40 in
Depth: 112.7 mm / 4.5 in
Weight (net): 23 kg / 50.5 lbs
