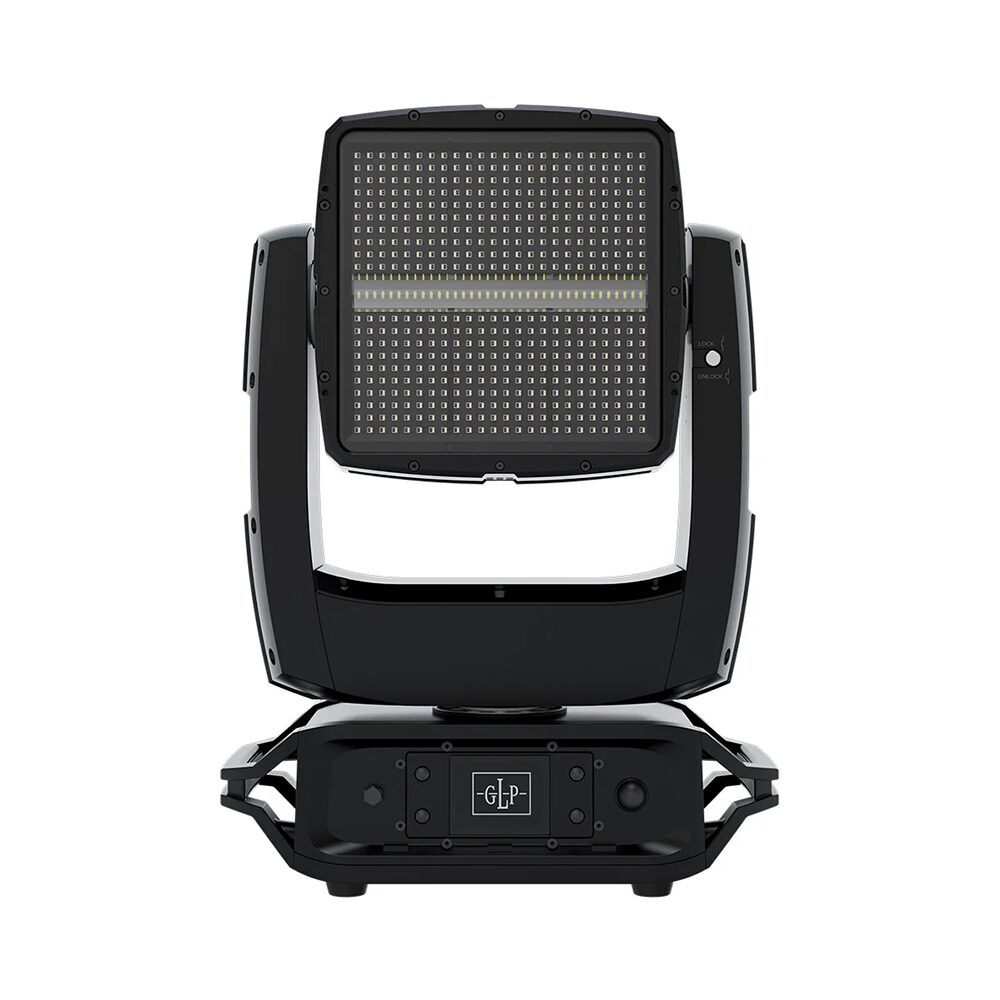

GLP TWYN Front Face Blinder and strobe sideGLP TWYN Front Face Blinder and strobe side

GLP – TWYN

Glp

Innovative dual-face moving head combines two powerful lighting systems in one compact fixture, with a perfect fixture match to GLP Creos and GLP JDC Burst 1.

SKU: 7460 Categories: , , , ,

Description

This innovative dual-face moving head combines two powerful lighting systems in one compact fixture, with a perfect fixture match to GLP Creos and GLP JDC Burst 1. One side features a 3×3 RGBL wash array with a 4° to 53° zoom – similar to GLP Creos –, delivering up to 4,060 lumens and outstanding color quality (CRI >85). The reverse side transforms into a hybrid strobe inspired by the JDC Burst 1, with 36 white LEDs for explosive strobe effects and up to 22,800 lm output and 480 RGBW LEDs for vivid color accents and more than 12,400 lm output. With continuous pan and tilt rotation, iQ.Mesh integration, and a lightweight 16 kg design, this fixture offers exceptional flexibility and performance. Perfect for club tours, small venues, and mobile productions, it delivers maximum creativity with minimal setup. Supplied with the GLP DRX Dual Sleeve for safe transport and easy installation. The low investment price allows a quick ROI and to equip your stage with higher fixture quantity.

Features

Buy 1 and Get 3 Fixtures

3in1 Dual Face fixture combines a great zoomable Washlight with a powerful Hybrid Strobe. This reduces investment costs, simplifies logistical effort, saves space in the truss and minimizes weight load. Perfect for club tours or multievent locations.

Perfect addition to GLP Creos and GLP JDC Burst 1

The GLP TWYN fits perfectly into the performance as well as the pixel and segmentation of the GLP Creos and GLP JDC Burst 1. Thus, the devices can be perfectly brought into a uniform stage design and mapping exposed create uniform creative looks.

Calibrated Colormix (iQ.Gamut) with defined White Points

The GLP iQ.Gamut technology ensures uniform colors and intensities, particularly good pastel colors in addition to highly saturated primary colors. That gives perfect match to the well loved GLP Creos and X5 Series.

Calibrated Colormix (iQ.Gamut) with defined White Points

The GLP iQ.Gamut technology ensures uniform colors and intensities, particularly good pastel colors in addition to highly saturated primary colors. That gives perfect match to the well loved GLP Creos and X5 Series.

Ready for all events

IP65 rated housing for indoor and outdoor applications from -10°C to +45°C ambient temperature. Robust housing design protected against wind, rain, dust, dirt, fog fluid and confetti particles.

GLP iQ.Mesh & iQ.Service

Gone are the days of searching for long update tools. Welcome to the age of the internet and mobile devices. Comfortable wireless firmware updates, information readout, advanced services, fixture configuration and control options by mobile device app (GLP iQ.Service App).

Easy logistic and quick setup

The included DRX Dual Sleeve allows 6 fixture per standard case. PowerCon True1 thru and max. 800 W power consumption allows quick daisy chaining of up to 4 fixtures (EU).

Compact and Low Weight

Weighing only 16 kg, the light is easy to handle and there is no need to worry about static overload.

Video

GLP Twyn – Your Ultimate 3-in-1 Lighting Solution

Meet the GLP Twyn — combining two iconic fixtures into one powerful unit. It merges half a JDC Burst 1 with half a CREOS, delivering stunning versatility. One side features vibrant RGBW LED plates with a central strobe tube, while the other packs a 3×3 array of 40W RGBL LEDs powered by iQ.Gamut Technology for ultimate color performance.

Additional information

Weight 16 kg
LED Wash

Light Source Wash:
Type: RGBL
Count: 3×3 lenses per pixel, 9 Lenses total
Power: each Pixel: 40 W, total: 360 W
Optical System Wash:
Total Output: up to 4,060 lm
Peak Luminous Intensity: 575 kcd
min. Zoom: 4°
max. Zoom: 53°
Front Lens: Zoom Lens System
Light Aperature: 180 x 180 mm / 7.08 x 7.08 in

LED Color Plate

Light Source Color Plate:
Type: RGBW
Count: 480 LEDs total in 24 segments
Power: each pixel: 0.6 W, total: 280 W

Optical System Color Plate:
Total Output: up to 12,400 lm
Peak Luminous Intensity: 4.68 kcd
Light distribution angles: beam angle: 110°, field angle: 150°
Light Aperature: 180 x 180 mm / 7.08 x 7.08 in

LED Strobe Line

LED Strobe Line:
Type: White Light LED
Count: 36
Power: each pixel: 17 W, total: 600 W

Optical System Strobe Line:
Total Output: up to 22,800 lm
Peak Luminous Intensity: 25.7 kcd
Light distribution angles: beam angle: 80° x 54°, field angle: 150° x 63°
Light Aperature: 180 x 22 mm / 7.08 x 0.86 in

Dynamic Effects

Dimmer: 0 – 100%, 16 bit
Shutter effects: Pan, Tilt, Zoom, Dual layer with dynamic pattern effects

Control & Programming

DMX Channels: tbd
Control Modes: tbd
Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh
High-Res Channels: Dimmer, Tilt, Colormix
Dimming Curves: linear, soft, S-Curve
Fan Modes: regulated, high, medium, low
Setting and Addressing: backlit graphic LCD, 4 Button Menu Navigation, RDM, GLP iQ.Mesh
Software Update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool

Connections

Power Connection: Neutrik powerCON TRUE1 In/Out
Signal Connection: Neutrik XLR 5-Pin In/Out, 2x-ethercon-inout-failsafe

Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, glass
Protection Rating: IP65
Construction Features: Tilt-Lock-System, Base Handles, Accessory Screw Threads

Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
Power Supply Unit: auto-ranging electronic switch-mode
max. Power (@ 230 V): 800 W

Installation

Mounting: 2 pairs of 1/4-turn locks, 1 eyelet for safety cable
Orientation: any
Location: Indoor temporary, Outdoor temporary
min. Distance to Illuminated Surfaces: 1.0 m

Movement

Pan: 360° continuous, 16 bit
Tilt: 360° continuous, 16 bit

Shipping

Single Fixture: carton
Tourpack: 6-way

Thermal Specifications

Cooling: combined convection and forced air
Overheating Protection: automatic
min. Ambient Temperature: -10 °C / 14 °F
max. Ambient Temperature: 45 °C / 115 °F
Total Heat Dissipation: 2,800 BTU/h

Dimensions & Weight

Height (leg): 11.3 mm / 0.5 in
Height (head straight up): 479 mm / 19 in
Height (head vertical): 468 mm / 18 in
Width (across yoke): 331 mm / 13 in
Depth (head straight up): 219 mm / 9 in
min. Center Distance: 335 mm / 13 in

Downloads

Data Sheet Download
