GLP – Nexus Square

Glp

The Nexus Square is a wireless, battery-powered RGBW LED panel with 64 addressable pixels, IP65 protection, and flexible app control. Compact and modular with magnetic mounting and USB-C cable routing, it’s ideal for DJs, events, and creative lighting displays.

SKU: GLP2852 Categories: , , ,

Description

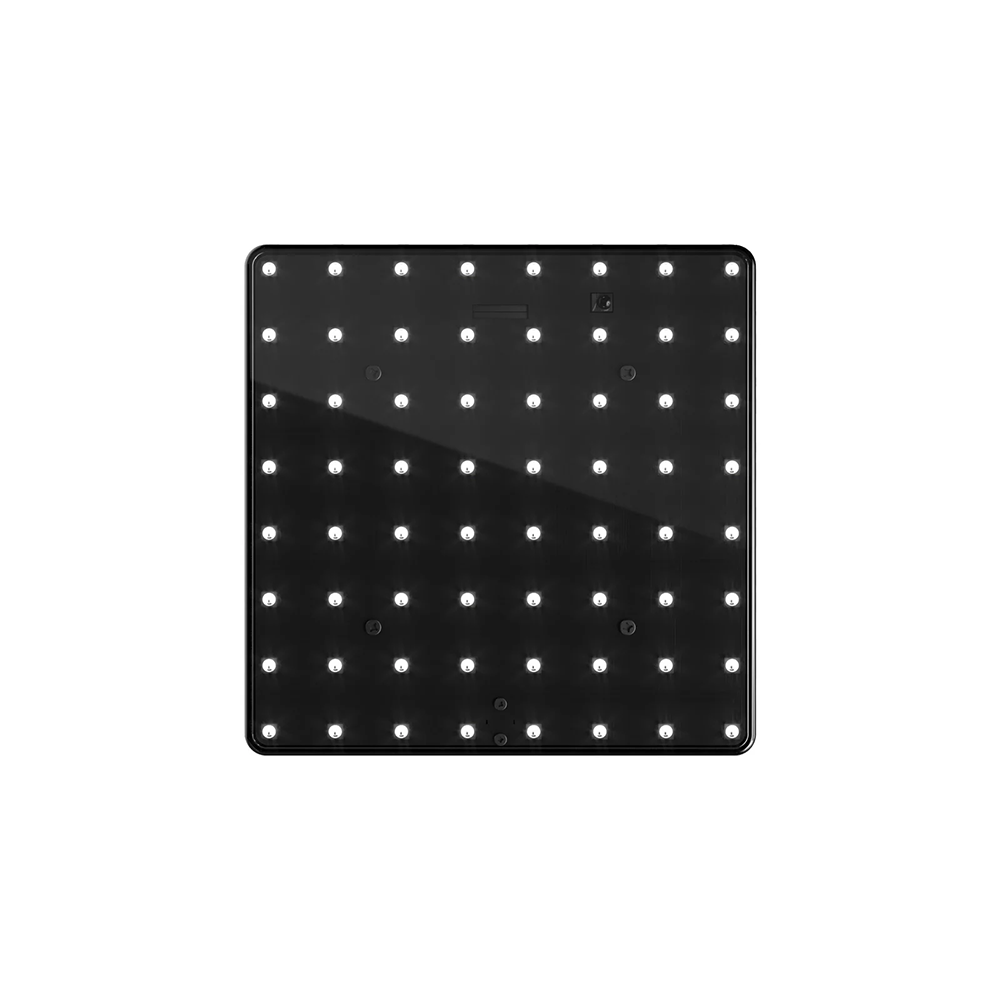

The Nexus Square– a wireless, battery-powered RGBW LED panel with a size of 166.7 x 166.7mm, designed for DJs, professional users, bars, weddings, and events. Equipped with 64 individually controllable RGBW pixels, the Nexus Square enables precise pixel mapping and dynamic effect programming. Control is provided via the GLP iQ.Control app or Vision Control App for flexible and intuitive operation.

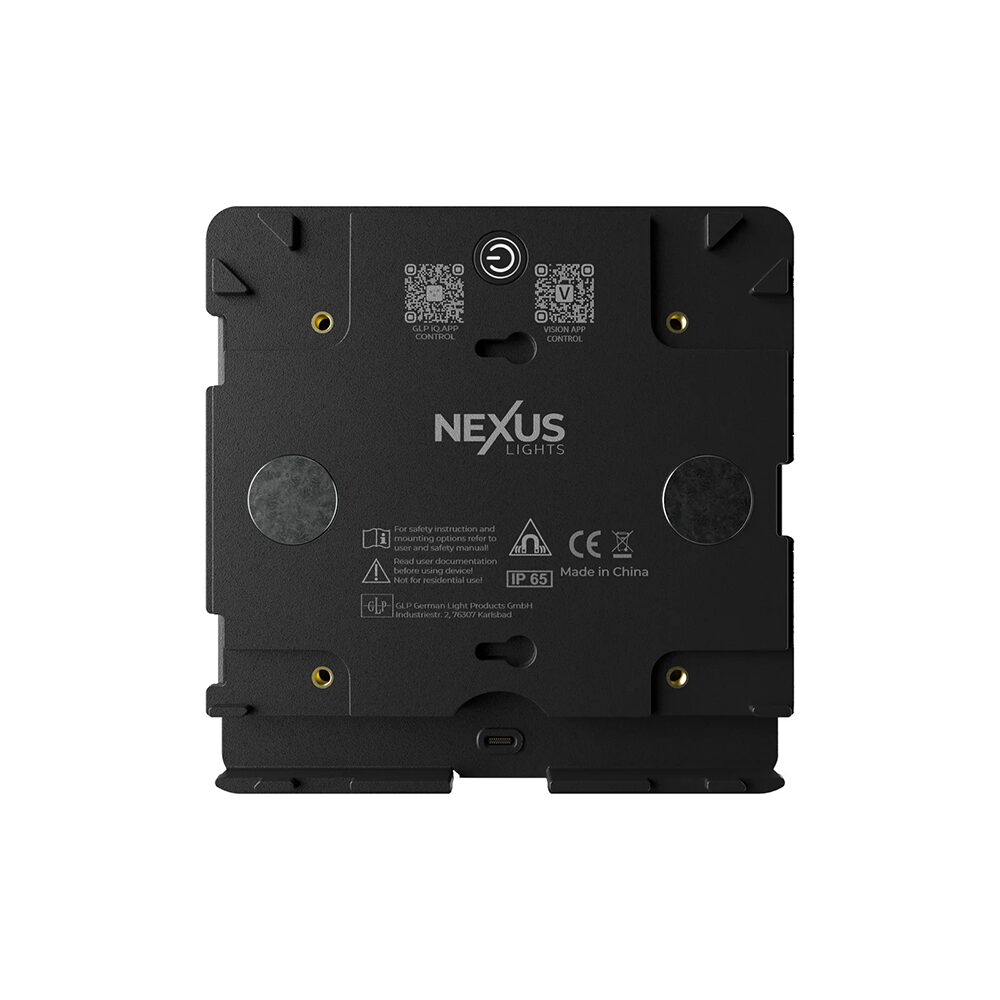

The robust IP65-rated housing offers magnetic mounting options as well as integrated suspension points for quick and secure installation. A built-in cable channel allows neat routing of up to five USB-C power cables for continuous operation. Future expansions such as wireless DMX, Art-Net, and sACN modules ensure seamless integration into professional lighting networks. Nexus Lights combines innovative technology and modular designs – ideal for demanding lighting applications and creative installations.

Additional information

Light Source

Type: RGBW LED
Count: 64 pixels
Light Source Lifetime: 50,000 h
LED Refresh Rate: 2,000 Hz
Dynamic Effects

Dimmer / Shutter: 0 – 100%, 8 bit
Control & Programming

Protocols: GLP iQ.Mesh
Dimming Curves: square
Other Control Options: single button on rear, control apps
Software Update: GLP iQ.Control App, Vision Control App
Battery Specifications

Power Input: 5 – 12 V, max. 2 A
Power Draw: max. 10 W
Connections

Power Connection: USB-C
Signal Connection: glp-iq-mesh
Construction

Housing Color: Black
Housing Material: plastic
Protection Rating: IP65
Construction Features: mounting system, changeable filter
Electrical Specifications

Power Input: 5 – 12 V, max. 2 A
Power draw: 10 W
Battery capacity: 5,000 mAh
Charging cable (incl.): USB-C 90° angled
Installation

Orientation: any
Location: Indoor temporary, Indoor permanent
Thermal Specifications

Cooling: no cooling
min. Ambient Temperature: 5 °C / 40 °F
max. Ambient Temperature: 45 °C / 115 °F
Dimensions & Weight

Height (with filter): 41.2 mm / 1.62 in
Height (without filter): 25.2 mm / 0.99 in
Width: 166.7 mm / 65.63 in
Depth: 166.7 mm / 65.63 in
Weight (with filter): 0.52 kg / 1.15 lbs
Weight (fixture only): 0.4 kg / 0.88 lbs

Downloads

Data Sheet Download
