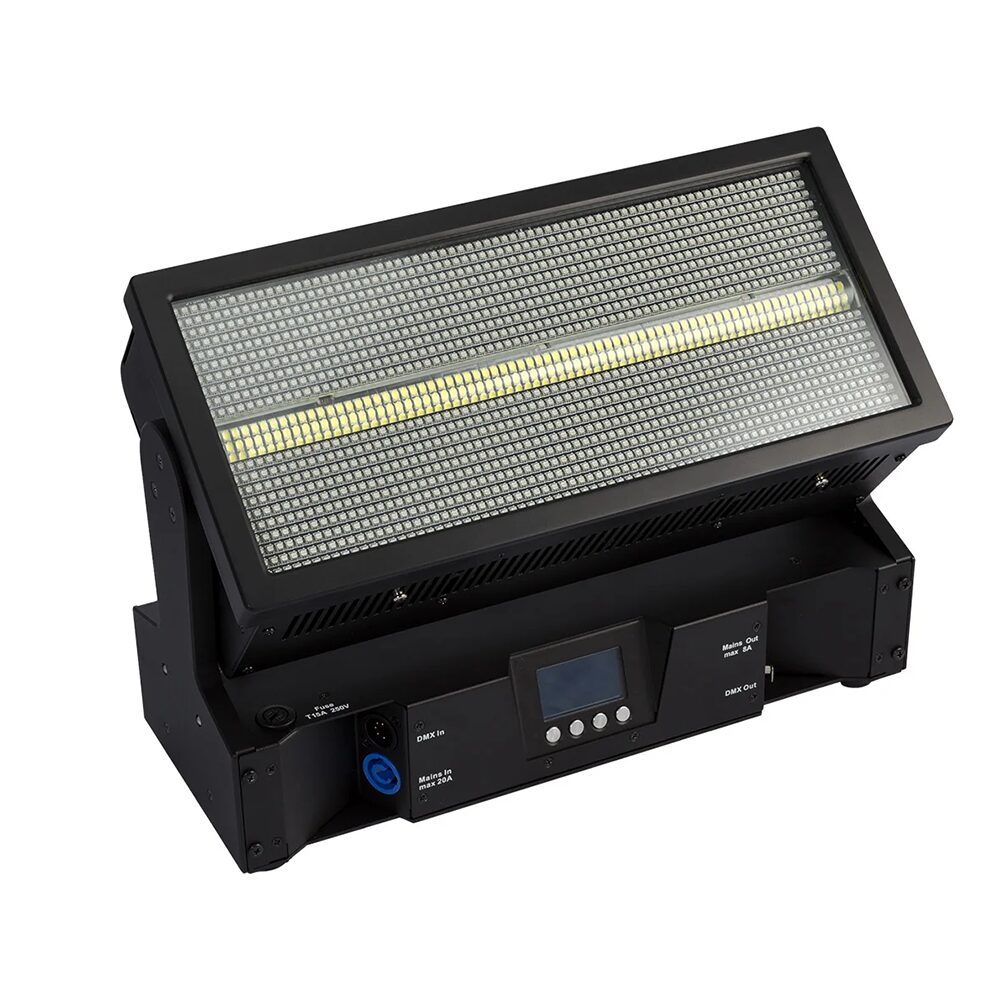

GLP – JDC1

Glp

The GLP JDC1 is a hybrid strobe with independent control over a bright white tube and RGB face, 185° tilt, and pixel-mapping capabilities, offering unlimited creative potential.

Description

When you’re searching for a strobe that delivers true power, look no further than the GLP JDC1. This strobe goes beyond expectations, offering a versatile, high-powered design that sets a new standard in creative lighting.

At the core of the JDC1 is a traditional single tube element that emits an incredibly bright, clear white light. Surrounding this tube is a full RGB LED face, packed with 1,320 high-quality LEDs. These two elements offer independent control, meaning they can be used separately or combined for truly stunning effects. Whether you’re after intense strobe flashes or vibrant color washes, the JDC1 delivers.

Not only does it serve as a powerful strobe, but both the tube and the RGB face can also function as continuous blinder and wash lights—great for creating immersive lighting environments.

The versatility doesn’t stop there. The RGB face can be divided into 12 individual ‘plate’ sections, and the bright white tube can be split into 12 sections as well. This allows you to fully pixel map the entire array, giving you endless creative possibilities when controlled by any standard controller.

For even more precision, the JDC1 features dynamic movement with an impressive 185° tilt range and 16-bit control. This ensures you can place your effects exactly where they’re needed, maximizing both the power and impact of your lighting design.

The JDC1 is more than just a strobe—it’s a whole new class of lighting, offering unparalleled features that go far beyond a simple hybrid. It’s the ultimate tool for creating unforgettable lighting moments.

Video

-GLP- JDC1

The JDC1 contains a traditional single tube element created with LED’s that produce an incredible clear, bright white output. This is then combined with a surrounding full face of RGB power, utilizing…

Additional information

Light Source

Type: White Flash LEDs, RGB Wash LEDs
Count: 216x White, 1,320x RGB
CRI (Ra): 73

Control & Programming

Control Modes: Compressed, HighRes, Pixel-Mapping
Setting & Addressing: backlit graphic LCD, self charging buffer battery
Software Update: DMX Link via Dprog

Connectors

Power Input: Neutrik powerCON TRUE1 In/Out
Signal Connection: Neutrik XLR 5-Pin In/Out

Construction

Housing Color: Black
Protection Rating: IP20

Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
max. Power (@ 230 V): 1,200 W
Fuse: T8A 20mm

Installation

Mounting: eyelets for safety cable, Omega Bracket, rubber feet
Orientation: any

Movement

Tilt Angle: 185°, 8 – 16 bit

Shipping

Single Fixture: carton
Tourpack: 4-way, Flightcase, Omega Brackets

Thermal Specifications

Overheating Protection: automatic
max. Ambient Temperature: 40 °C / 104 °F

Dimensions & Weight

Height (head straight up): 251 mm / 9.8 in
Width (across yoke): 390 mm / 15.3 in
Depth (head straight up): 150 mm / 5.9 in
Weight (net): 11.6 kg / 25.6 lbs

Downloads

Data Sheet Download
User Guide Download
