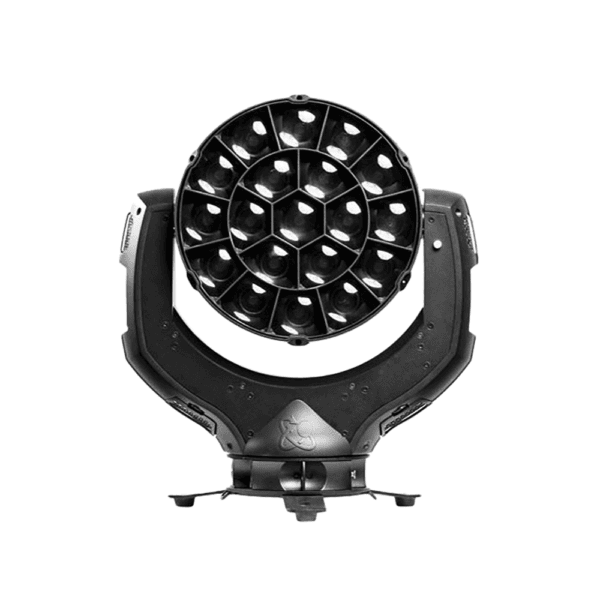

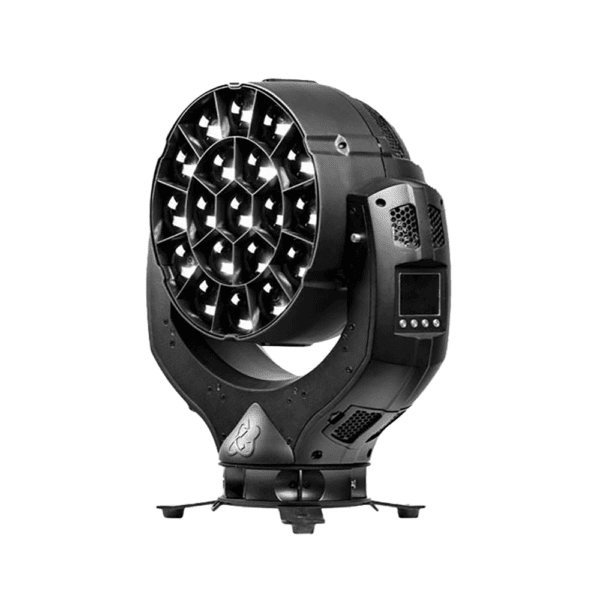

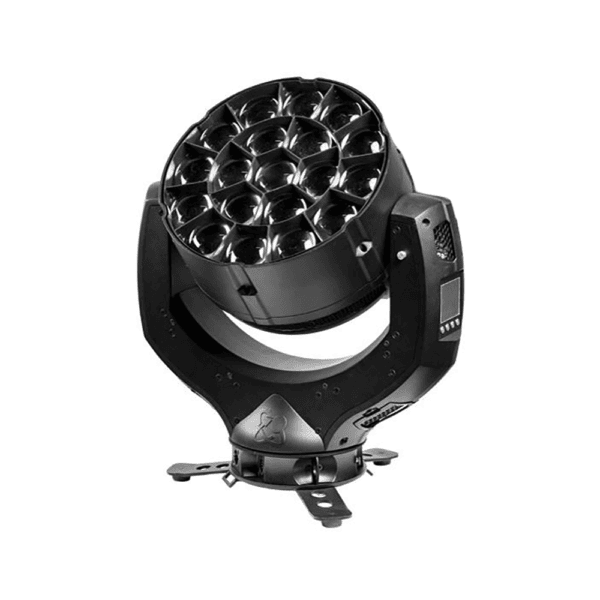

GLP – Impression X5

Glp

The GLP impression X5 offers advanced color calibration, 19 x 40 W LEDs, pixel mapping, and an ultra-wide zoom range—ideal for professional stage, studio, and event lighting.

SKU: GLP7795 Categories: , , , , ,

Description

The GLP impression X5 represents the next generation of professional, high-performance LED washlights. Built on the legacy of its acclaimed predecessors, it integrates cutting-edge technology shaped by extensive user feedback.

At its core are 19 exclusive 40 W LEDs that deliver outstanding power—capable of cutting through even the most challenging lighting environments. These LEDs are specifically engineered to support an expanded color gamut, and when combined with GLP’s advanced iQ.Gamut color algorithm, the result is consistently accurate, high-quality color rendering and perfectly calibrated white spectrums.

With CRI ratings of 90 at 6,500K and 85+ at 3,200K, the impression X5 delivers exceptional fidelity across the spectrum. Multiple control modes give users the flexibility to access this expanded gamut, along with a virtual color wheel featuring 64 LEE-referenced filters, magenta/green shift, and a tungsten simulation channel.

Each LED is pixel-mappable and supported by twin-layer dynamic effects and pattern macros. The fixture features a super-fast zoom mechanism with a wide 1:16 range, from a tight 3.5° beam to a smooth, wide 63° wash, with even light distribution and no visible hotspots.

Its newly designed circular front lens adds visual appeal and geometric interest, making it ideal for both functional and creative applications. Weighing just 13.3 kg (29.3 lbs), the GLP impression X5 incorporates the brand’s signature baseless design and can be rigged in any orientation using the X5 bracket.

Built for versatility, it’s equally suited to concerts, theatre, broadcast, film, festivals, exhibitions, and houses of worship. Integrated mounting points allow for easy attachment of accessories like top hats or honeycomb filters.

Advanced control options include 16-bit pan (540°/650°) and tilt (220°), with silent to ultra-fast movement. The fixture supports DMX, ArtNet, and sACN, and includes a Near Field Control Sensor for configuration via smart devices, as well as the GLP iQ.Service Module and new FPO (Flexible Protocol Option) Port for expanded control capabilities.

Other features include variable PWM settings, auto-ranging power input, multiple performance modes, and fail-safe Ethernet ports.

With its powerful feature set, refined control, and thoughtful design, the GLP impression X5 sets a new standard in professional LED wash lighting.

Video

Product Demo impression X5

In this video, our product manager Michael Feldmann introduces us to the new GLP impression X5. This is the first fixture in a new era of luminaires based on our X5 technologies.

Additional information

Light Source

Type: RGBL
Count: 19
Power: 40 W
Lifetime: 50,000 h
LED Refresh Rate: Low: 550 Hz
Optimal: dynamic PWM Algorithm
High 1: 4,600 Hz
High 2: 13,000 Hz
all values rounded; for detailed information, contact GLP Supprt
Color Temperature Light Source: 6,500 K
CRI (Ra): 8,000 K: 87, 6,500 K: 86+, 3,200 K: 84+
TLCI: 8,000 K: 90, 6,500 K: 88+, 3,200 K: 74+
TM-30-15: 6,500 K: 87/105, 3,200 K: 85/110
Duv: perfect white point matches with low Duv values

Optical System

Output: up to 12,500 lm
Peak Luminous Intensity: 2 Mcd
min. Zoom: 3.5°
max. Zoom: 63°
Zoom Ratio: 1:16
Front Lens: 19 lenses with full circular aperature, diameter 260 mm

Dynamic Effects

Color Mixing: RGB, RGBL, x;y
CTC: variable 2,500 – 10,000 K
CQC: High Output (HO), High Quality (HQ), Desaturation
Color Wheel: virtual, 64 LEE referenced colors, rainbow
Magenta/ Green-Shift: Yes
Tungsten Simulation: 8x linked to fix CCT, 8x relative to Colormix
Pattern Effects: 50 dynamic pattern macros with special effects
Color Mix Priority: different Layer Priority settings
Zoom Speed: super fast zoom mechanics
Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc.

Control & Programming

DMX Channels: M1: 24, M2: 35, M3: 41, M4: 89, M5: 70, M6: 89
Control Modes: M1: Basic, M2: Normal, M3: Segment, M4: Multipix Advanced, M5: Multipix Compressed RGB, M6: Multipix Compressed RGBL
High-Res Channels: Pan, Tilt, Intensity, Colormix
Dimming Curves: linear, soft, S-Curve
Performance Modes: Fast, Normal (Balanced), Smooth
Fan Modes: regulated, high, medium, low
Subfixture Mode: normal, independent
White Points: Default: 6,500 K, optional: 8,000 K, 5,600 K, 4,200 K, 3,200 K
PWM: Low, Optimal, High 1, High 2
Setting & Addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, 1 Scene Stand Alone
Other Control Options: Art-Net/sACN Node, Data Conversion, NFC, FPO Port (Flexible Protocol Option)
Software Update: DMX Link via Dprog, GLP iQ.Mesh

Connectors

Power Input: Neutrik powerCON TRUE1 In/Out
Signal Connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)

Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating: IP20
Construction Features: prepared for external accessories (Egg Crate, Tubus, etc.), Tilt-Lock-System, baseless design, GLP FX.Port

Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
Power Supply Unit: auto-ranging electronic switch-mode
max. Power (@ 230 V): 710 W

Installation

Mounting: 1 pair of 1/4-turn locks, 2 eyelets for safety cable, M10 thread
Orientation: any
Location: indoor permanent
min. distance to combustible materials: 0.1 m
min. distance to illuminated surfaces: 1.0 m

Movement

Pan Angle: 540° normal (650° extended), 16 bit
Tilt Angle: 240°, 16 bit

Thermal Specifications

Cooling: combined convection and forced air
Overheating Protection: automatic
min. Ambient Temperature: 5 °C / 40 °F
max. Ambient Temperature: 45 °C / 115 °F
Total Heat Dissipation: 2,500 BTU/hr

Dimensions & Weight

Height: 402 – 434 mm / 15.83 – 17.09 in
Width (across yoke): 415 mm / 16.4 in
Depth: 290 mm / 11.4 in
Min. Center Distance: 465 mm / 18.3 in
Weight (netto): 13.3 kg / 29.3 lbs
