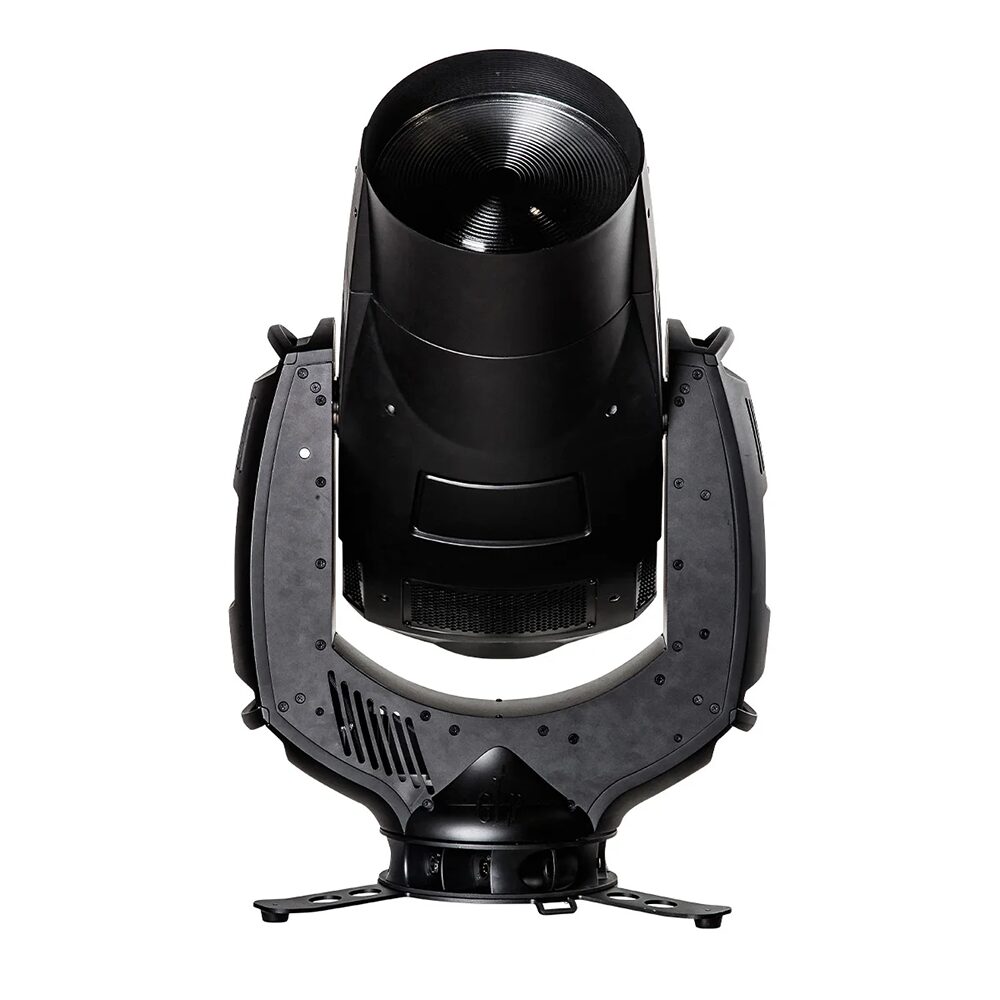

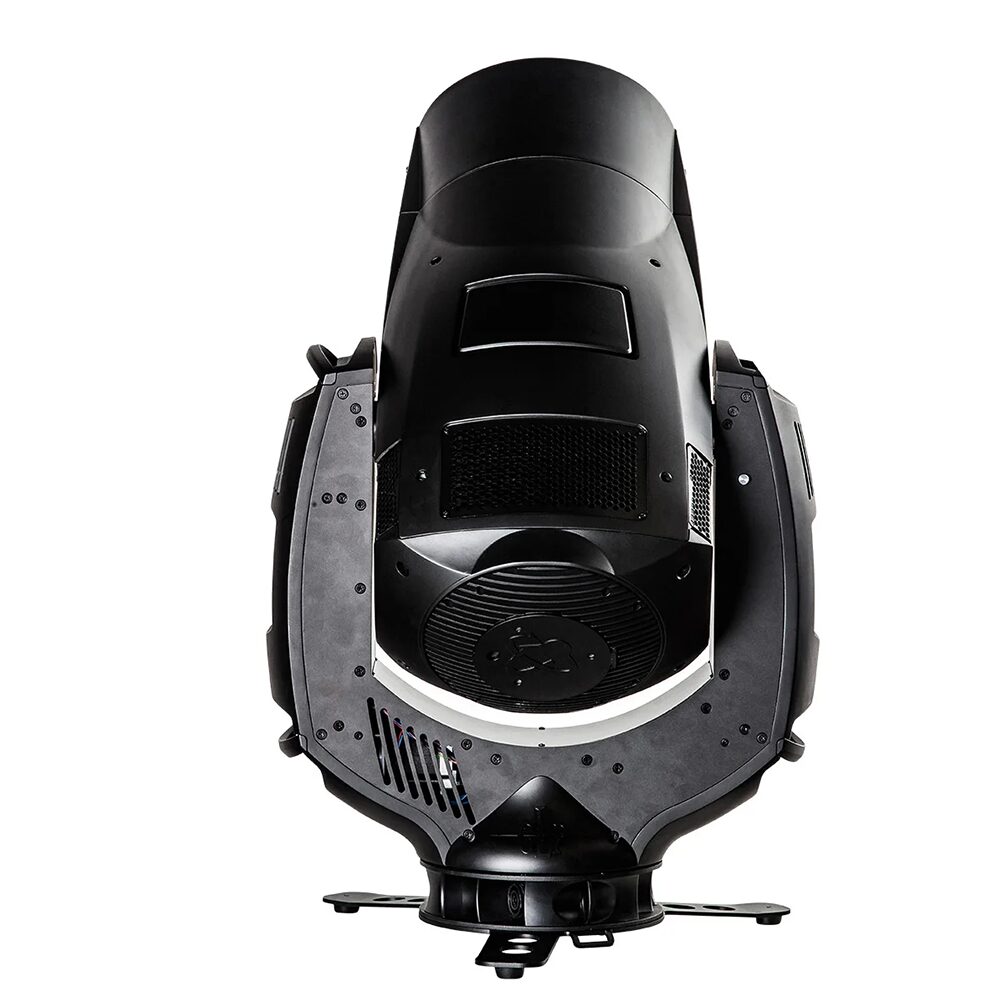

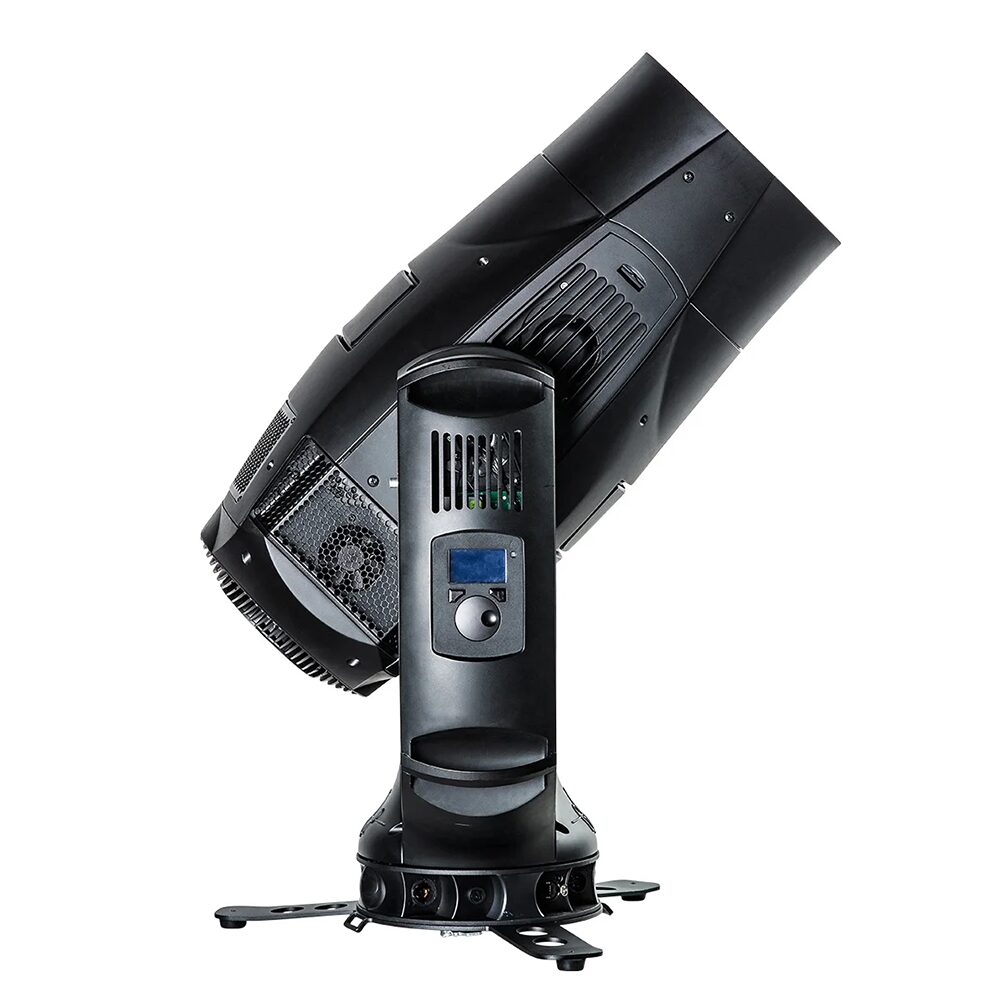

GLP – HIGHLANDER Wash

Glp

The GLP HIGHLANDER Wash packs 1,400W of punch into a compact, high-output fixture with a 4°–61° zoom, CMY + dual colour wheels, precision framing, and full colour temperature control from 2,700 K to 6,000 K. Ideal for large-scale, high-demand environments.

SKU: GLP7770 Categories: , , , ,

Description

The HIGHLANDER Wash from GLP is a standout fixture that delivers high performance, high output, and premium quality from a compact discharge source with a superior optical system.

Powered by a 1,400-watt lamp and equipped with a large 230 mm (9-inch) front lens, the HIGHLANDER Wash delivers massive light output without compromising on quality. With a native colour temperature of 6,000 K, the optics boast CRI, CQS, and TM-30 quality indices all measuring 90 or above.

Its powerful optical system offers a 7:1 zoom ratio, ranging from a tight 4° to a wide 61°, with beam control provided by a fast motorised iris and a full-feature framing system. The four-blade framing system allows each blade to tilt and cross the beam independently, with full 90° rotation of the entire assembly for precision and flexibility.

The colour system includes a glass dichroic CMY module for a wide spectrum from soft pastels to saturated hues, complemented by two independently controlled colour wheels (each with 7 colours plus open). A separate CTO system enables colour temperature control from 2,700 K to 6,000 K, making it adaptable to any lighting environment.

Additional features include smooth dimming with selectable curves, separate shutter control with built-in macros, fast 16-bit pan and tilt movement, and an ECO operating mode.

The HIGHLANDER Wash also features a compact, baseless design suitable for any orientation. Power is delivered via Neutrik True1, with data connections via 5-pin XLR or Ethernet, supporting DMX, Art-Net, or sACN protocols. It runs flicker-free and includes convenience features such as a battery-powered control interface for configuration without mains power, auto-sensing PSU, four carrying handles, and versatile rigging options—all in a lightweight 29.5 kg (65 lbs.) fixture.

Video

GLP HIGHLANDER Feature Video

The new GLP HIGHLANDER – A powerful washlight with 1.400 W, impressive 230 mm Fresnel front lens, 5.5° beam up to 63° softwash, natural colors, 4 blade framing… and more.

Additional information

Light Source

Type: Discharge lamp
Lifetime:750 h
Color Temperature Light Source: 6,000 K
CRI (Ra): 90+
CQS: 95+
TLCI: 95+
TM-30-15: 90+ / 95+

Optical system

Output: 22,000 lm
min. Zoom: 4° beam angle
max. Zoom: 61° field angle
Zoom Ratio: 1:7
Focus: 2 m – infinity, motorized
Focus tracking: off, near, medium, far
Front Lens: Fresnel
Front Lens Diameter: 230 mm / 9 in

Dynamic Effects

Color Mixing: CMY
Color Wheel: 7 dichroic color filters + open
Color Wheel 2: 7 dichroic color filters + open
Dimmer / Shutter: 0 – 100%, electromechanical, selectable dimming curves, Strobe effects, instant open and blackout
Framing: 4 separately movable shutters, +/-30° positionable, 100% positionable into the beam, +/- 45° rotatable module
Frost: variable, 0 – 100%

Control & Programming

DMX Channels: 26
Control Modes: 1
High-Res Channels: Dimmer, Pan, Tilt
Dimming Curves: linear, soft
Performance Modes: Fast, Medium, Smooth
Fan Modes: regulated, high
Setting & Addressing: backlit graphic LCD, 4 Button Menu Navigation, Jog Dial Navigation, DMX, RDM
Software Update: DMX Link via Dprog

Connectors

Power Input: Neutrik powerCON TRUE1 In
Signal Connection: Neutrik XLR 5-Pin In, Neutrik etherCON In

Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating: IP20
Construction Features: baseless design, integrated yoke handles, Tilt-Lock-System, modular slide in system, service friendly filter system, service friendly light source change

Electrical Specifications

Power Supply Unit: auto-ranging electronic switch-mode
max. Power (@ 230 V): 1,750 W

Installation

Mounting: 2 pairs of 1/4-turn locks, 2 eyelets for safety cable, M10 thread
Location: indoor permanent
min. distance to combustible materials: 1.0 m
min. distance to illuminated surfaces: 8.0 m

Movement

Pan Angle: 670°, 16 bit
Tilt Angle: 264°, 16 bit

Thermal Specifications

Overheating Protection: automatic
min. Ambient Temperature: 5 °C / 41 °F
max. Ambient Temperature: 45 °C / 115 °F
Total Heat Dissipation: 5,980 BTU/h

Approvals & Specifications

Risk Group EN 62471: Risk Group 2

Dimensions & Weight

Height: 773 mm / 30.5 in
Height (head straight up): 724 mm / 28.6 in
Width (across yoke): 492 mm / 19.4 in
Depth (head straight up): 773 / 30.4 in
Min. Center Distance: 730 mm / 28.7 in
Weight (net): 29.5 kg / 65.1 lbs

Downloads

User Guide Download
Data Sheet Download
