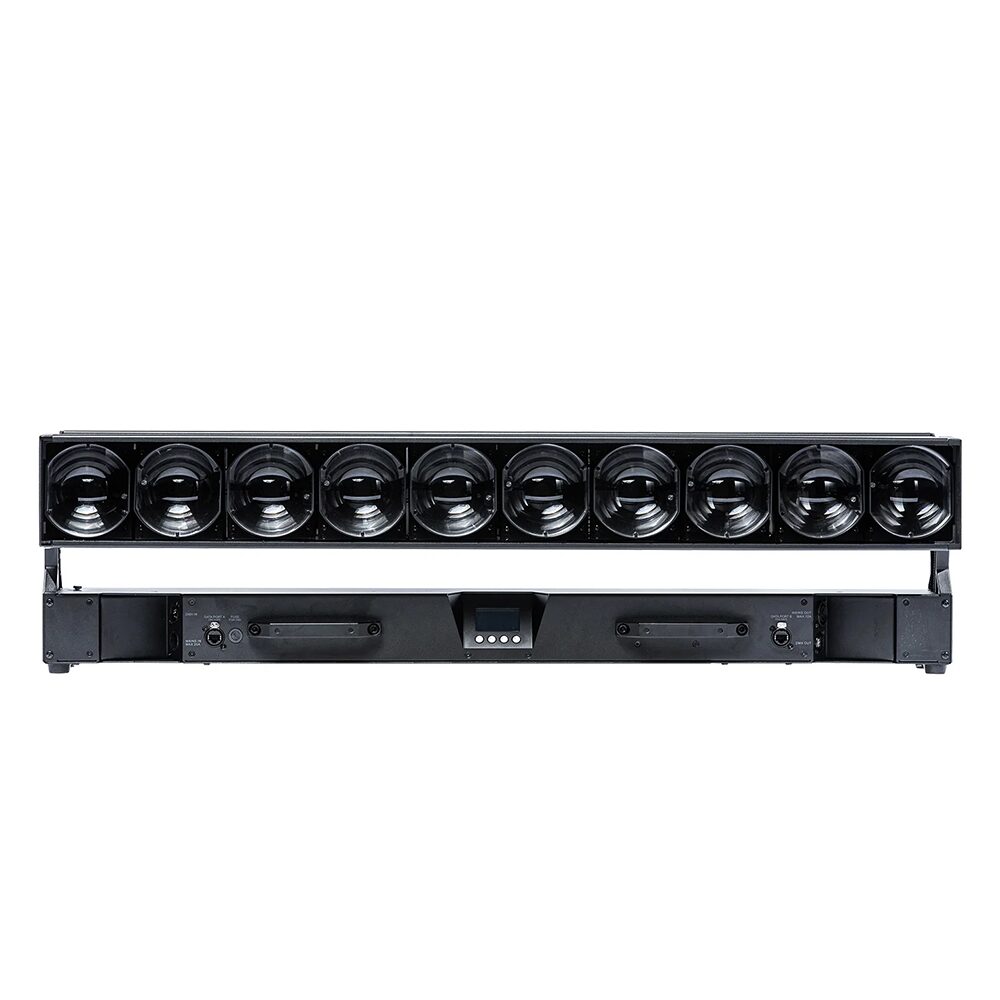

GLP – FR10 Bar

Glp

The GLP impression FR10 Bar features 10x60W RGBW LEDs with a bold Fresnel look, smooth colour mixing, built-in colour macros, and full compatibility with the GLP X4 and FR series.

SKU: GLP7683 Categories: , , ,

Description

Featuring a new optical system, the impression FR10 Bar brings a fresh visual aesthetic while maintaining a familiar GLP design. It uses the same larger aperture found in the impression FR1, creating a distinctive look and powerful output.

The fixture houses 10 individual sources, each equipped with a high-output 60W RGBW LED that colour matches seamlessly with the entire GLP X4 and FR series. Each source delivers smooth, full-range colour mixing and bold, punchy output through a homogenised Fresnel lens.

In addition to individual colour control, the FR10 Bar includes a range of built-in colour macros and a broad library of industry-standard colour filters, allowing for quick programming and dynamic visual effects.

Video

impression FR 10 Bar

With a new optical system, the impression FR10 Bar uses a larger size output aperture, as used in the impression FR1 giving a new look from a familiar style. The impression FR10 Bar contains 10…

Additional information

Light Source

Type: RGB LED
Count: 10
Power: 00 W
Lifetime: 50,000 h
CRI (Ra): 80+
TLCI: 80+
Optical System

Output: 5,800 lm
min. Zoom: 3.7°
max. Zoom: 34°
Zoom Ratio: 1:7
Control & Programming

DMX Channels: 25, 51, 57, 79
Control Modes: 4
High-Res Channels: Dimmer, Tilt
Dimming Curves: linear, soft
Performance Modes: Fast, Normal (Balanced), Smooth
Fan Modes: regulated, high, medium, low
Setting & Addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM
Software Update: DMX Link via Dprog
Connectors

Power Input: Neutrik powerCON TRUE1 In/Out
Signal Connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out (failsafe)
Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating: IP20
Construction Features: base handles, Tilt-Lock-System, changeable frontscreen
Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
Power Supply Unit: auto-ranging electronic switch-mode
max. Power (@ 230 V): 740 W
Typical Power (@ 230 V): 710 W
min. Power (@ 230 V): 60 W
Fuse: T12A 250V 6x32mm
Installation

Mounting: 4 pairs of 1/4-turn locks, 2 eyelets for safety cable, 4 pairs of 1/4-turn locks
Orientation: any
min. distance to combustible materials: 0.2 m
min. distance to illuminated surfaces: 1.0 m
Thermal Specifications

Cooling: combined convection and forced air
Overheating Protection: automatic
min. Ambient Temperature: 45 °C / 115 °F
max. Ambient Temperature: 5 °C / 40 °F
Total Heat Dissipation: 2,430 BTU/hr
Approvals & Specifications

Risk Group EN 62471: Risk Group 2
Dimensions & Weight

Height (head straight up): 339 mm / 13.3 in
Width (across yoke): 1,000 mm / 39.4 in
Depth (head straight up): 196 mm / 7.7 in
Min. Center Distance: 1,000 mm / 39.4 in
Weight (net): 24 kg / 53 lbs
