Description
Good things come in small packages. The Source Four Mini LED™ is everything you expect from the Source Four brand – ease of use, superior optics, crystal-clear image projection and a bright, even field – but packaged in a tiny fixture that’s just one-third the size of a traditional Source Four. A mere nine inches long, the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children’s theaters, and other small scale installations where size matters.
The Source Four Mini is available in four field angles: 19°, 26°, 36° and 50°, with a 2.5-inch diameter lens. It comes in a portable version with a miniature C-clamp, a canopy-mount design with an integral transformer, or a track-mounted design. All Source Four Mini models include an E-sized pattern holder and a gel media frame, with a range of additional accessories.
Source Four Mini LED is compatible with ETC DataTrack in line/mains dimming applications only. With the Source Four Mini and DataTrack, architectural installs can take advantage of the same high-quality dimming, and even beam field ETC is known for.
Features
- 19°, 26°, 36° and 50° field angles
- 9″ long, 2.5″ diameter
- 12W LED (35,000-hour life)
- Portable, canopy-mount and track-mount versions
- E-size pattern holder
- Gel media frame
- Rotating barrel ± 175°
- Three-plane stainless-steel shutter blade assembly
- Insulated rear handle
- Rugged die-cast aluminum construction
Canopy-mount features
- 4.5 x 1.5″ color-matched canopy
- Canopy-mounting hardware for 4″ ceiling junction box included
- LED driver in canopy for hardwired 120V or 230/240V input

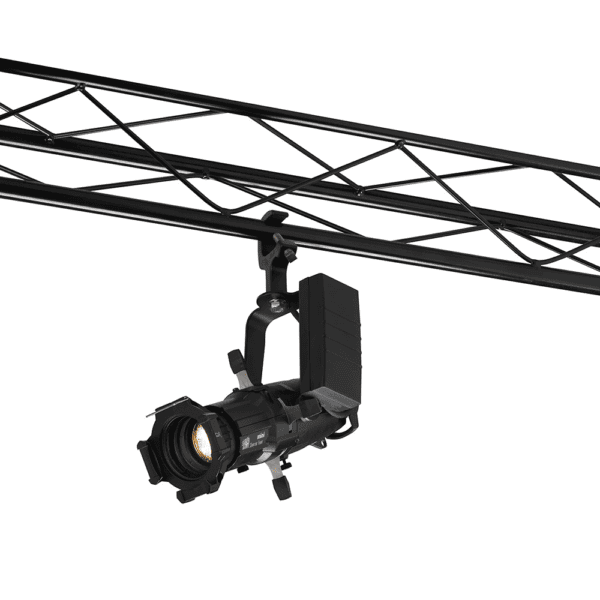

Portable features
- Yoke-mounted LED driver in color-matched case
- Miniature C-clamp included
- 3′ power cable and choice of Edison, UK or EU plug
Track-mount features
- ETL-Listed and compatible with EUTRAC-brand track
- Factory-installed, integral LED driver in color-matched (black or white) adapter
