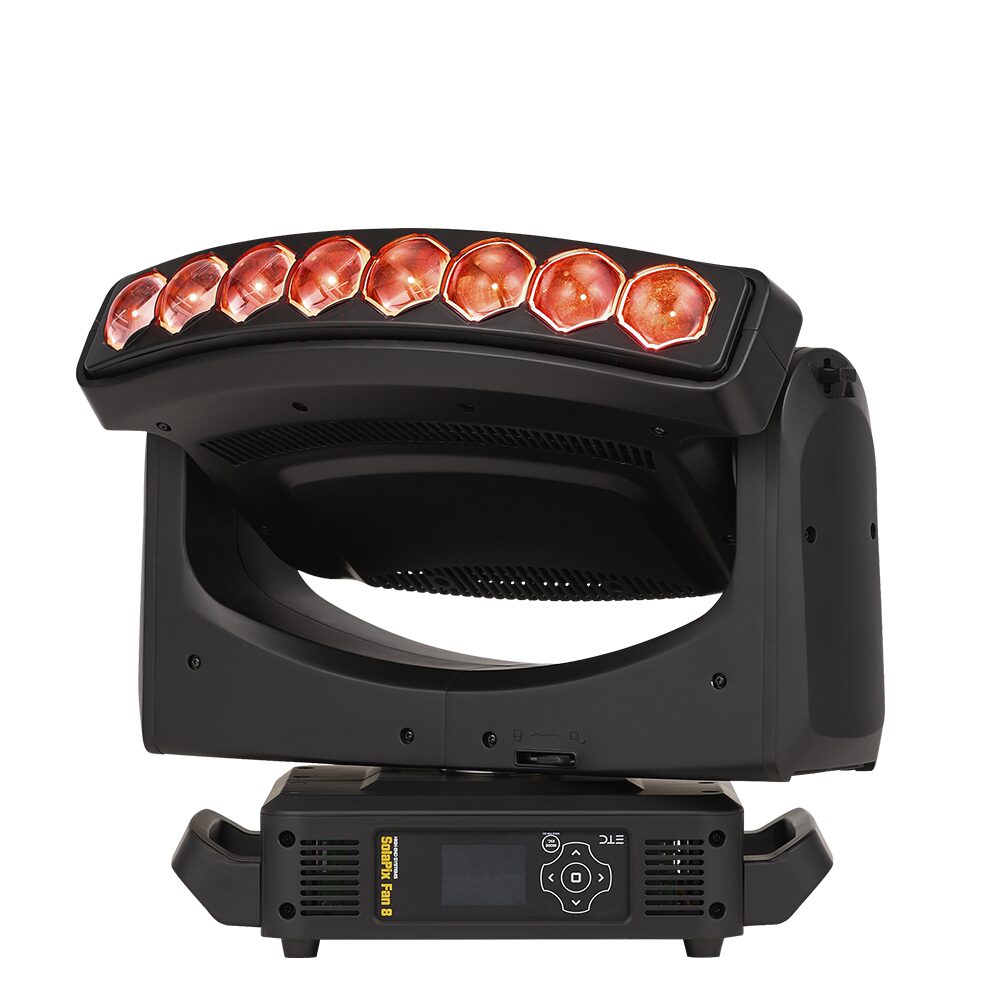

ETC SolaPix Fan 8 front right of fixtureETC SolaPix Fan 8 front right of fixture

ETC – SolaPix Fan 8 – High End Systems

ETC

The High End Systems SolaPix Fan 8 brings new dimension to any stage with a fanned design highlighted by eye-catching optics.

SKU: ETCSPF8-MI Categories: , , , , ,

Description

The High End Systems SolaPix Fan 8 from ETC brings new dimension to the stage with a fanned design featuring high-impact optics. With eight cells that pack a punch from narrow beams to wide washes, SolaPix Fan 8 is ideal for mid- to large-sized venues hoping to add dynamic looks to their productions.

SolaPix Fan 8 incorporates much-loved features from the SolaPix family. In addition to RGBW color mixing, tuned color temperature between 2800-8000K, and 4.5° to 60° zoom, the SolaPix family utilizes ETC’s patented HaloGraphic Pixel Definition for an extra wow factor.

The fan shape of the SolaPix Fan 8 takes it beyond a standard linear fixture. With each cell at an angle, designers can achieve 6 degrees of separation between each of Fan 8’s most narrow beams. For wide washes, each cell maxes out at 60°, creating a 102° linear spread across the whole fixture. Infinite pan capabilities also enhance design possibilities with SolaPix Fan 8 being able to quickly move in different orientations.

SolaPix Fan 8 pumps out 800 lumens per cell, totaling 6,400 lumens for the entire fixture. At 17.3 kg/38 pounds, Fan 8 can fit right into any pre-rig hanging position or floor package.

SolaPix Fan 8 features individual pixel control, paired with the FleX Effects Engine for quick and accessible macros. To provide designers with a full toolbox, Fan 8 features 85 inclusive macros with built-in color, as well as 36 flex effects with up to four customizable colors.

SolaPix Fan 8 is backed by ETC’s 24/7 customer support as well as a five-year warranty on the light engine and two-year warranty on the complete fixture.

Features

  • Additive LED, RGBW, color mixing system for extremely powerful saturated colors and tunable white control
  • Versatile 4.5°–60° single cell zoom
  • Fanned LED alignment provides awesome aerial fan look while also improving stage wash capabilities
  • Extremely efficient optical system provides market-leading lumen output
  • FleX Effects generator for easily customizable macros
  • Pixel mapping
  • Modular control with Art-Net or sACN in addition to simultaneous DMX control
  • Patented HaloGraphic Pixel Definition
  • Infinite pan

Additional information

Source

LED Quantity: Eight (8)
LED Details: 40 W Osram Ostar® LED
Max. Field Lumens: 5,800 lumens
Max Integrating Sphere Lumens: 6,400 lumens
LPW: 20
LED Life: 50,000 hours/5-year warranty
Color

Color Mixing: Red, Green, Blue, and White
Color Temperature: Variable from 2800–8000 K
Optical

Individual Cell Angle Range: 4.5°–60°
Full Fixture Wide Field: 60° x 102°
Optical Spread: LEDs arranged in a fan array with each LED offset 6°
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
Control

Input Method: DMX (5-pin) or Ethernet
Protocols:
DMX via RS-485
Art-Net or sACN via Ethernet
Modes (Footprint):
Base (26), Base + Flex Module (42), Wash
Mode (16), Pixel Module (32)
RDM Functions: Yes
UI Type: Full color graphical UI with 6-button navigational control
Local Control: Yes
Effects Engine: Built in effects engine with multi parameter color and speed control
Pixel Mapping: Individual addressing via DMX, Art-Net, or sACN
Dimming Performance: 16-bit, DMX controlled
Electrical

Voltage Range: 100–240 V 50–60 Hz
Input Method: powerCON TRUE1 TOP
Wattage (Standard/Max/Standby): 366/413/26 W
Current (Max): 4.2 A @ 100 V
Inrush (First Half Cycle):
120 V: 66.0 A
230 V: 78.0 A
Fixtures per Circuit:
4 fixtures (15 A power thru connector)
4 fixtures (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V/60 Hz) and
16 A (240 V/50 Hz)
Thermal

Ambient Operating Temp: -10°C to 40°C (14°F to 104°F)
Fan Mode: Standard, Studio, and Linear Continuous control channel
Physical

Pan and Tilt: Range Endless pan 207° tilt
Max Pan/Tilt Speed: 360° in 2.13 s/180° in 1.26 s
Materials: Steel and aluminum frame with molded plastic covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Weight: 17.3 kg (38 lb)
Included Accessories:
powerCON TRUE1 TOP to bare end fixture tail
Two (2) 180 mm, three-hole clamp brackets
Safety cable
