ETC – SiteBox

ETC

ETC SiteLink is a cloud-based monitoring solution that keeps your lighting and rigging systems connected and visible from anywhere. With secure SiteBox integration, real-time system alerts, user-defined permissions, and scalable subscription plans, SiteLink is ideal for schools, theatres, studios, and large venues needing peace of mind and remote system visibility.

Category:

Description

ETC SiteLink is an always on, peace of mind, cloud-based monitoring solution. Securely connected through the ETC SiteBox, SiteLink allows you to monitor lighting and rigging control systems from anywhere in the world and receive alerts about system activities based on user-defined rules. ETC SiteLink is scalable with multiple subscription options and add-ons to meet individual site needs.

Features

  • System status accessible anywhere in the world
  • Secure connection through ETC SiteBox
  • User-definable location structure with bespoke permission options
  • System email alerts for ETC SiteLink critical information
  • Scalable and adjustable user count
  • Device specific email and SMS alerts*
  • Advanced monitoring of ETC products*
  • sACN Viewer for easy troubleshooting*

*Solo, Trio, or Ultra subscription plan required

Applications

  • Schools
  • Performing Arts Centers
  • Studios
  • Touring Productions
  • University Theatres
  • Conference Centers
  • Houses of Worship
  • Museums
  • Casinos
  • Ballrooms
  • Stadiums

Additional information

Physical

Materials: Rugged, aluminum housing

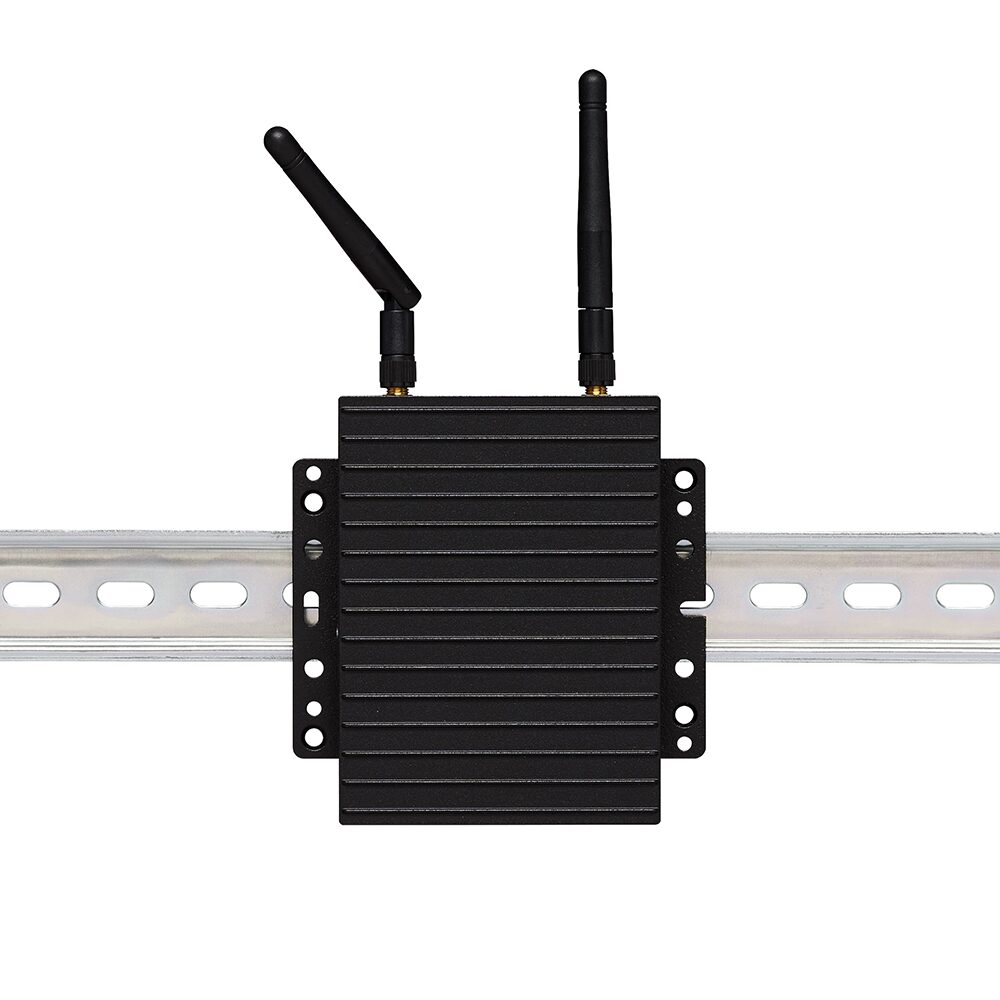

Mounting Options: Desktop, wall, DIN rail, and equipment rack rail
Included Accessories:
– Multi-function Mounting Bracket
– DIN rail clip with attachment hardware
– USB A to USB Micro-B cable (for setup)
IP rating: IP20
Weight: 0.25 kg (0.55 lb)
Electrical

Input Voltage: 12 VDC
Input Method: 120-240 VAC 50/60Hz AC-DC adapter with
international connector options (provided)
Wattage: 36 W
Current Draw:
3 A max at 12 VDC
1 A max at 120/240 VAC using supplied adapter
ETC SiteBox Dimensions

ETC SiteBox without wireless antennae:
Height: 122mm
Width: 85mm
Depth: 25mm

ETC SiteBox with wireless antennae:
Height: 198mm (max)
Width: 168mm (max)
Depth: 25mm (max)
Weights

0.25kg

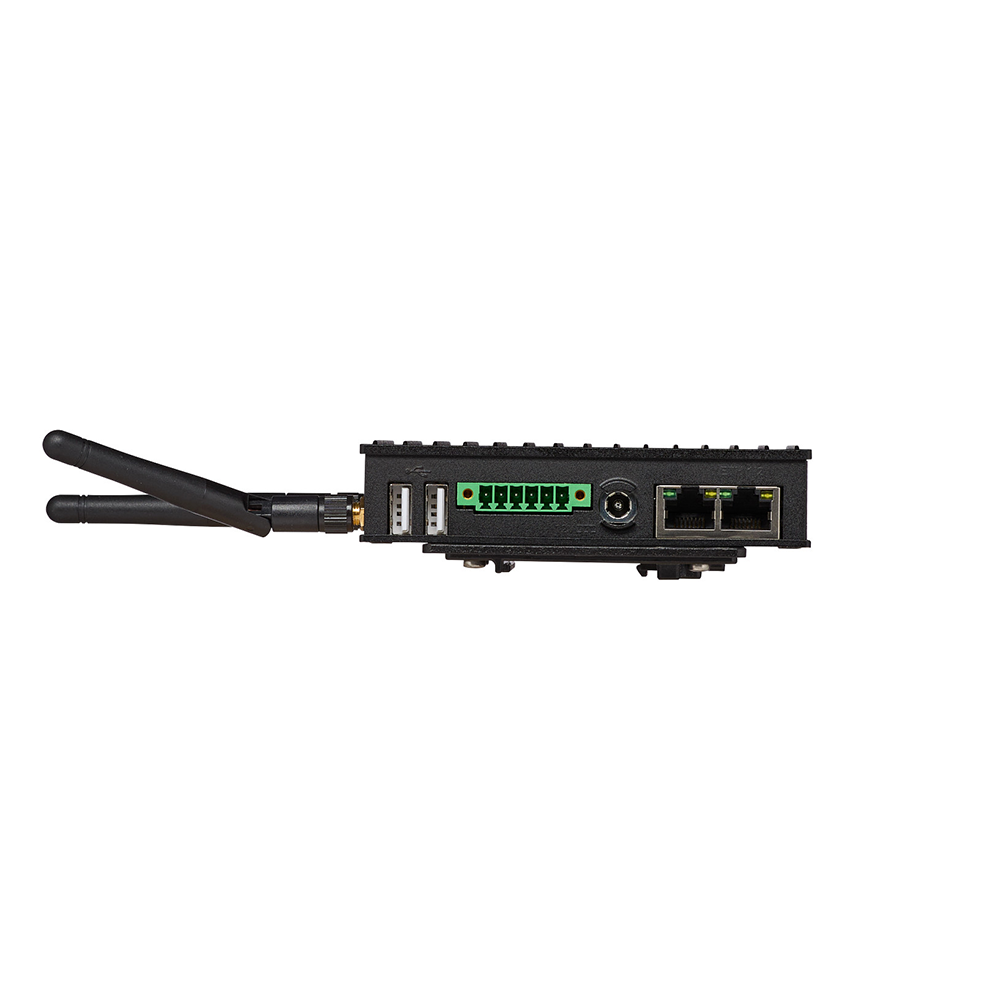

Interfaces

ETH 1 (Internet): 1000 Mbps Ethernet Port, RJ45 connector
ETH 2 (ETC Control Network): 100 Mbps Ethernet Port, RJ45 connector
WiFi:
802.11ax WiFi 6
2x 2.4 GHz / 5 GHz Antennae (Included, Optional)
USB: 3x Type-A USB2.0 ports
Console: USB Micro-B port
Environmental

Ambient Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity (non-condensing):
10% to 90% Operating
5% to 95% Storage
Fan: Passive cooling, fanless design
Regulatory and Compliance

Approved regulatory standards:
CE Compliant
FCC (contains FCC ID PD9AX200NG)
EN 55032/5
EN 61000-6-2
EN 61000-6-3
EN/UL/IEC 62368-1
Pending certification: ioXt

Downloads

Data Sheet Download
