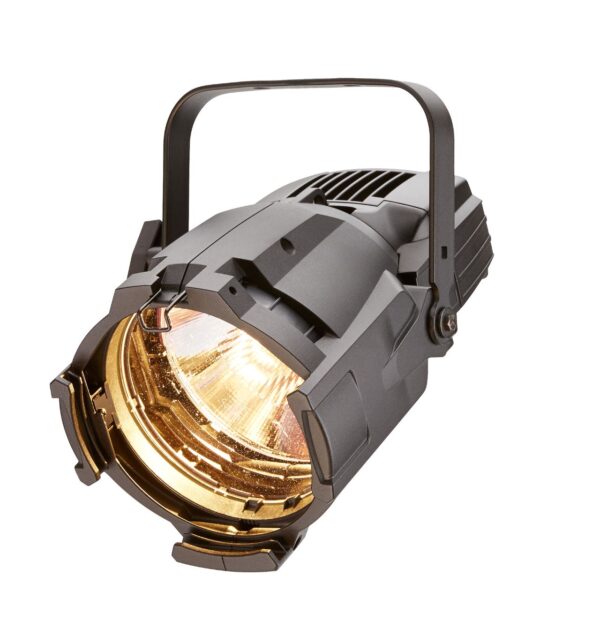

S4WRD_PAR_leftS4WRD_PAR_left

ETC – S4WRD PAR & PARNEL

ETC

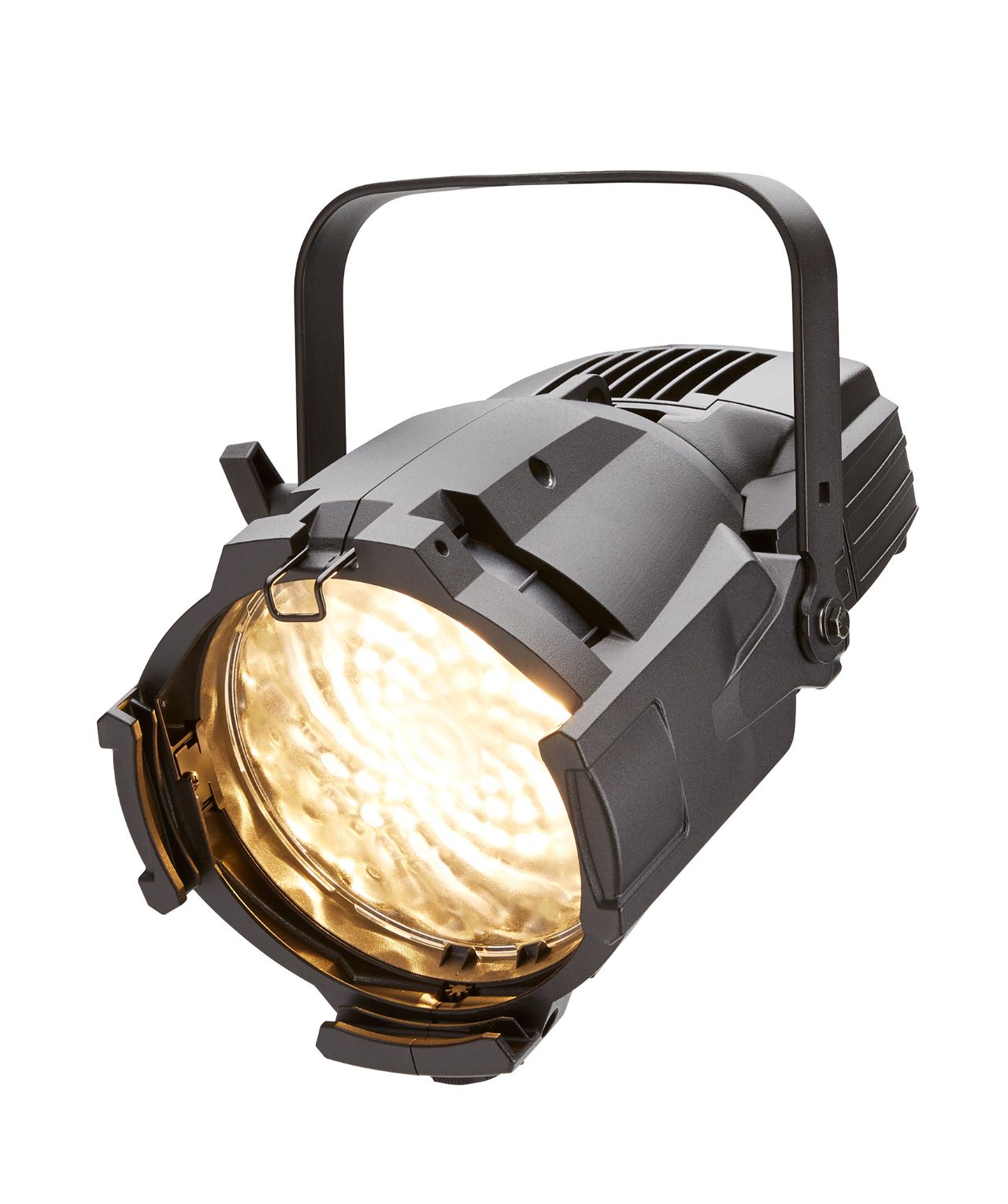

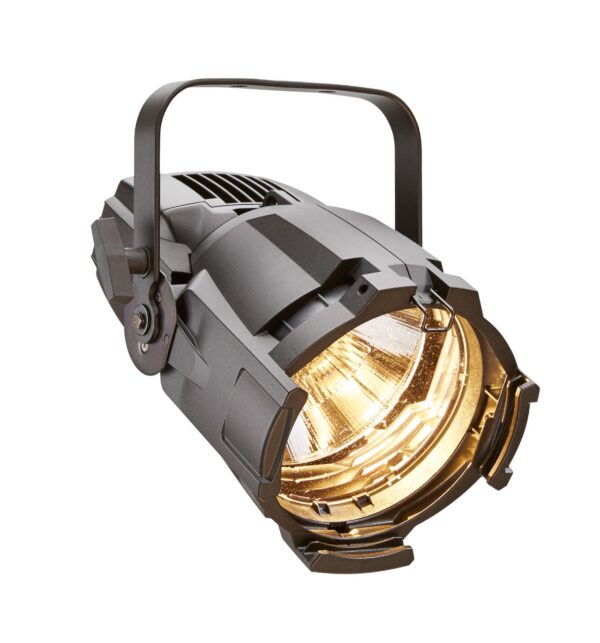

Source 4WRD II PAR and PARNel

SKU: N/A Categories: , , ,
Clear

Description

The Source 4WRD II PAR and PARNel Fixture Bodies allow you to transform your Source 4WRD II LED into a beautiful softlight. Taking advantage of the great energy efficiency, cool operating temperatures, DMX dimming or line voltage dimming and no lamp changes, the Source 4WRD PAR and PARNel deliver an amazing output without compromise

Application

  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs

Features

  • Fixture bodies for use with Source 4WRD II LED
  • Works just like a Source Four PAR or PARNel, using the same accessories
  • 155 W at full output
  • Brighter than the 750 W HPL versions
  • Uses same Source 4WRD II LED as the Source 4WRD II ellipsoidal

Additional information

Source

LED details: S4WRD II LED *Not Included*
Max lumens: 11,584 (PAR), 10,786 (PARNel) w/ S4WRD II
Lumens per watt: 77 (PAR), 72 (PARNel)
L70 rating (hours to 70% output): >45,000 hours (LM84 test pending)
Notes: S4WRD II LED sold separately
Colour

Colors used: Warm or Cool White
Color temperature range: 3200 K 80 or 90+ CRI, 5900 K 90+ CRI
Calibrated array: NA
Red shift: No
Notes: S4WRD is available in 80+ CRI (Standard) and 90+ CRI (Gallery) – See S4WRD datasheet for details
Optical

Beam angle range:
PAR: 10–36°
PARNel: 13–30°
Gate size: N/A
Aperture size: 178 mm (7 in)
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz range: No
Notes:
PAR ships with an AR coated flat lens. Additional
PAR lenses sold separately. PARNel ships with
PARNel lenses.
Control

Input method: Line Voltage with DMX Control or Line Dimmed
Protocols: DMX via RJ45 connector
Modes (Footprint): 1
RDM configuration: Yes
UI type: 7-segment address display
Local control: Yes
Onboard presets: No
Onboard sequences: No
Onboard effects: No
Fixture to fixture control: No
Notes: Local level control via UI
Electrical

Voltage range:
114–125 V, 60 Hz (120 VAC)
209–252 V, 50 Hz (230 VAC)
Input method:
Hard wired, 1 m cord, Edison plug (120 VAC)
Hard wired, 1 m cord, bare end (230 VAC)
Inrush:
30 A (first half-cycle) at 120 VAC
12 A (first half-cycle) at 230 VAC
Fixtures per circuit*:
120 VAC: 14 fixures per 20 A switched circuit (R20 module or similar)
230 VAC: 6 fixtures per non-dimmed circuit (ER15AFR module)
Wattage (Typical/Standby):
150 W / 1.2 W (120 VAC)
175 W / 3.7 W (230 VAC)
Current draw:
1.26 A at 120 VAC
0.75 A at 230 VAC
Notes:
– When using line dimming, see the S4WRD manual for dimmer setup.
– When using line dimming, standby power is 0 W.
*All measurements are for 120 V, 60 Hz. Results may vary in different regions.
Thermal

Ambient operating temp: 5°–50° C (41°–122° F)
Fan (controllable): Yes (no)
Droop compensation: No
dB range: 28 dBa (average at 1 m)
BTUs/hour:
529 (120 VAC)
597 (230 VAC)
Physical

Materials: Die-cast aluminum
Color options: Black, white, silver or custom color
Mounting options: Yoke
IP rating: IP-20
Weight: PAR: 3 kg (6.6 lb) / PARNel: 3.5 kg (7.7 lb)
Included accessories: Color frame
Notes: Includes S4WRD mounting post. Requires the S4WRD II LED available separately
Warranty

Fixture: Three years
Regulatory and Compliance

Approved regulatory standards:
cULus
CE Compliant when used with ETC Source 4WRD
LED Retrofit
