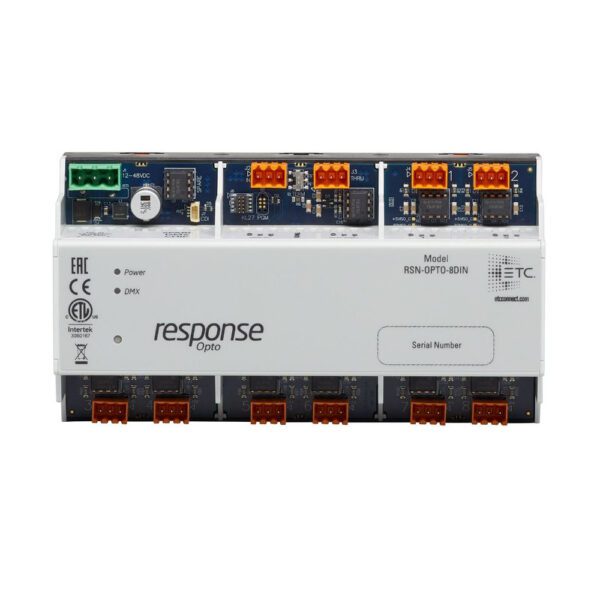

ETC – Response Opto-Splitter – 8 Port DIN with Terminal

ETC

Data distribution for systems, large or small

SKU: ETC4267A1031 Categories: , , , ,

Description

The ETC Response Opto-Splitter provides quality and reliable DMX data distribution. Using industry-standard DMX and RDM, the Response Opto-Splitter unlocks the power of your DMX system.

Features

  • Isolated DMX/RDM outputs: 8
  • DMX/RDM connector: Terminal
  • Power input: 12-48VDC
  • UL924 emergency listing: N/A
  • Size: 9 DIN units

Application

  • Road houses and touring
  • University/professional theatres
  • Hotels and Convention halls
  • System integration
  • Houses of worship
  • House lighting
  • Museums
  • Themed environments

Additional information

Size/Weight

9 DIN Units
HxWxD: 90x162x61mm
Weight: 0.25kg
Functional

No configuration required
Supports DMX512, DMX512 (1990), and DMX512-A
Supports ANSI E1.20 Remote Device Management (RDM)
Supports up to 256 total RDM devices
Mechanical

Rack-mount form factor:
– Fabricated from aluminum
– Black, Fine-textured, powder-coat finish
– Full 19” equipment rack width
– Front or rear facing mounting options
DIN rail form factor:
– Molded plastic enclosure
– Mounting complies with DIN43880 (35/7.5 rail)
– Unit is 9 DIN units wide
– DIN installation enclosure available
Power and data activity LED indicators
– Blue power indicator
– Green DMX activity indicator
Electrical

Supports DMX input and DMX thru
Provides optically isolated DMX/RDM outputs
Rack-mount form factor:
– 100–240 VAC 50/60 Hz power input
– User configurable front or rear IEC C13 power connector position
– 35 W max power draw
– XLR, RJ45 and Terminal connector options
DIN rail form factor:
– 12–48 VDC power input
– 8 W max power draw
– Wiring connections use plugable rising clamp terminals
Optional IDC termination kits available
DIN Box form factors include a suitable power supply. For more details on using this power supply with other products please contact ETC’s Application Engineering Department
Environmental

Ambient operating temperature: 0°–40° C (32°–104° F)
Operating humidity: 5–95% non-condensing
Storage temperature: -40°–70° C (-40°–158° F)
Regulatory & Compliance

cETLus Listed
cETLus Listed to UL 924 (Emergency DIN Boxes Only)
CE compliant
EAC certified
RoHS compliant
WEEE

Downloads

Data Sheet Download
