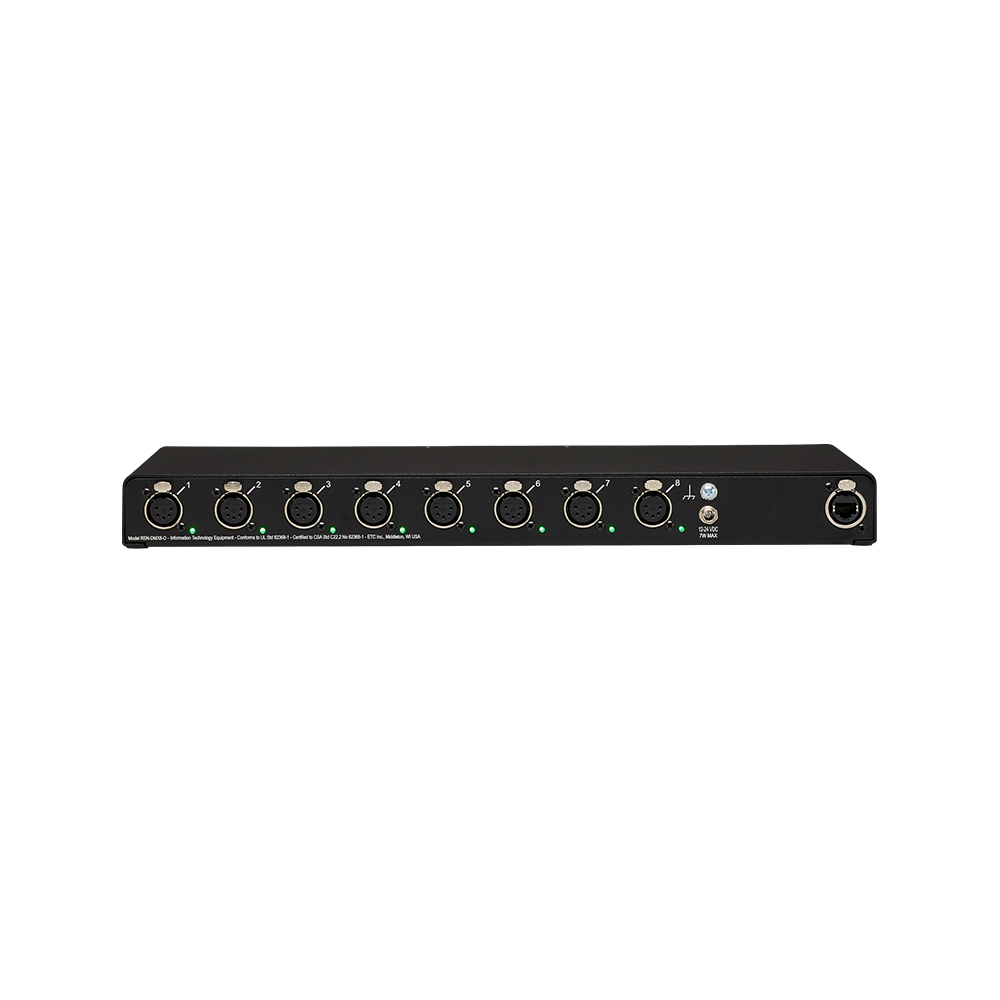

ETC – Response Mk2 8-Port Gateway

ETC

ETC’s Response Mk2 Eight-Port Gateway provides data distribution using the quality and reliability of ETC’s network technology.

SKU: N/A Categories: , , , ,
Clear

Description

ETC’s Response Mk2 Eight-Port Gateway provides data distribution using the quality and reliability of ETC’s network technology. Built using industry-standard sACN, DMX, and RDM, the Response Gateway unlocks the power of your networked system.

Features

  • Distributes DMX and RDM data to any input/output device over Ethernet
  • Supports Net3 protocol powered by ACN
  • Configurable DMX/RDM Output or Input on first two ports
  • Configurable DMX/RDM Output on remaining six ports
  • Simple configuration and service of each port
  • Onboard screen and buttons for status and configuration
  • Power, network, and port direction status indicators
  • Touch to Wake sensor
  • Power over Ethernet (PoE) or external DC power supply
  • Near Field Communication (NFC) allows configuration even while powered off
  • Configurable using Concert software and/or Set Light mobile application

What’s In The Box

  • Eight-Port Gateway
  • Setup Guide
  • Rack ears (Output and RJ45 Out versions only)

Additional information

Functional

Supports Net3/ACN (ANSI E1.31 and E1.17)
Supports RDM (ANSI E1.20)
Supports USITT DMX512-A (ANSI E1.11)
USITT DMX512 and ANSI E1.11 DMX512-A compliant
Flexible Output Patch allows a 512-address universe to begin at any output address
Advanced Input Patch on first two ports
Support for per-address- or per-universe-level priority
Maximum delay time from input to output not greater than one packet time
Selectable DMX refresh rate with a maximum at least 40 Hz
Supports up to 256 total RDM devices
Mechanical

Intuitive four-button interface
Onboard display for identification, status, and configuration
Fabricated from 16-gauge cold-rolled steel
Black, fine-textured, powder-coat finish
C-clamp and U-bolt hardware accessory kits available
Full (Output & RJ45 Out) or half (Terminal) 19 in equipment rack width allows for up to eight or sixteen DMX ports in 1U height, respectively
– Rack ears included on Output and RJ45 Out versions
– Gateway Rack-mount Kit available for Terminal version
– One N3GA-RM required for every two Terminal
Gateways
Network, power, and data activity LED indicators
– Blue power indicator
– Green network activity indicator
– Bi-color DMX activity indicato
RJ45 for connection to lighting network configurable for front or rear positioning
Reset button for hard reset or forced reboot
Enviromental

Ambient operating temperature: 0°C to 40°C (32°F to 104°F)
Operating humidity: 5%–95% non-condensing
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Electrical

Compliant with IEEE 802.3i for 10BASE-T, 802.3u for
100BASE-TX and 802.3af for Power over Ethernet
12–24 VDC power input for use with non-PoE systems
Maximum 7 W current draw
Screw-terminal pluggable connectors for solid and stranded cable wiring provided for terminal version
Configuration

Local configuration options
Remote configuration provided by Concert
– Supports up to 512 DMX addresses per port
– Supports up to 63,999 Streaming ACN universes
DMX data input or output configurable by user
Multiple sources may be combined to the network with each source or address allowed an independent priority
Individual port start address and offset
User-configurable labeling
Regulation and Compliance

cETLus Listed
CE compliant
RoHS compliant
WEEE

Downloads

Data Sheet Download
