ETC – Response MIDI Gateway, Portable

ETC

The Response MIDI Gateway can send and receive info in all flavors of MIDI: Note, Show Control (MSC), and Time Code (MTC).

SKU: ETC4267A1009 Categories: , , , ,

Description

The Response MIDI Gateway can send and receive info in all flavors of MIDI: Note, Show Control (MSC), and Time Code (MTC). Eos consoles can generate and send MSC or listen for MSC commands to trigger cues via the MIDI Response Gateway. And for when you really need to be in sync, the MIDI Response Gateway will communicate MIDI Timecode to your console to make sure everything stays on track.

The Gateway also translates MIDI to and from UDP for the ultimate in integration with ETC and third-party products. Since standard USB MIDI is supported, the Gateway can be used with thousands of existing PC and Mac applications.

Feature Quick View

  • 10/100 Mbps Ethernet connection
  • OLED Screen and four-button UI
  • cETLus Listed / CE compliant / EAC certified
  • PoE (IEEE 802.3af) or USB powered

Additional information

Weight 0.22 kg
Functional MIDI

Distributes MIDI over USB or Ethernet
Supports Standard MIDI over USB device class
Supports Net3/ACN (ANSI E1.17)
Supports MIDI over UDP
Mechanical

Finished in fine-textured, powder-coat paint with matching overlay

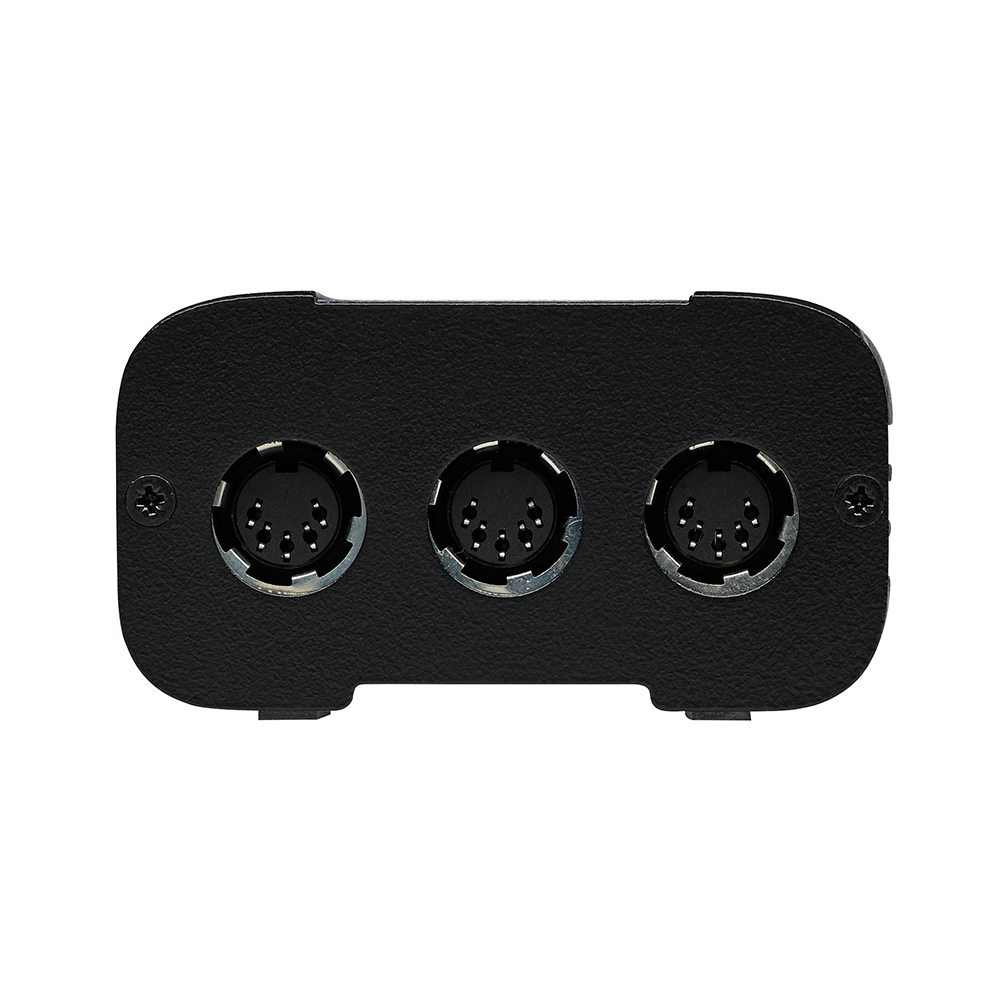

MIDI – 5-Pin DIN Connector In/Out/Thru ports

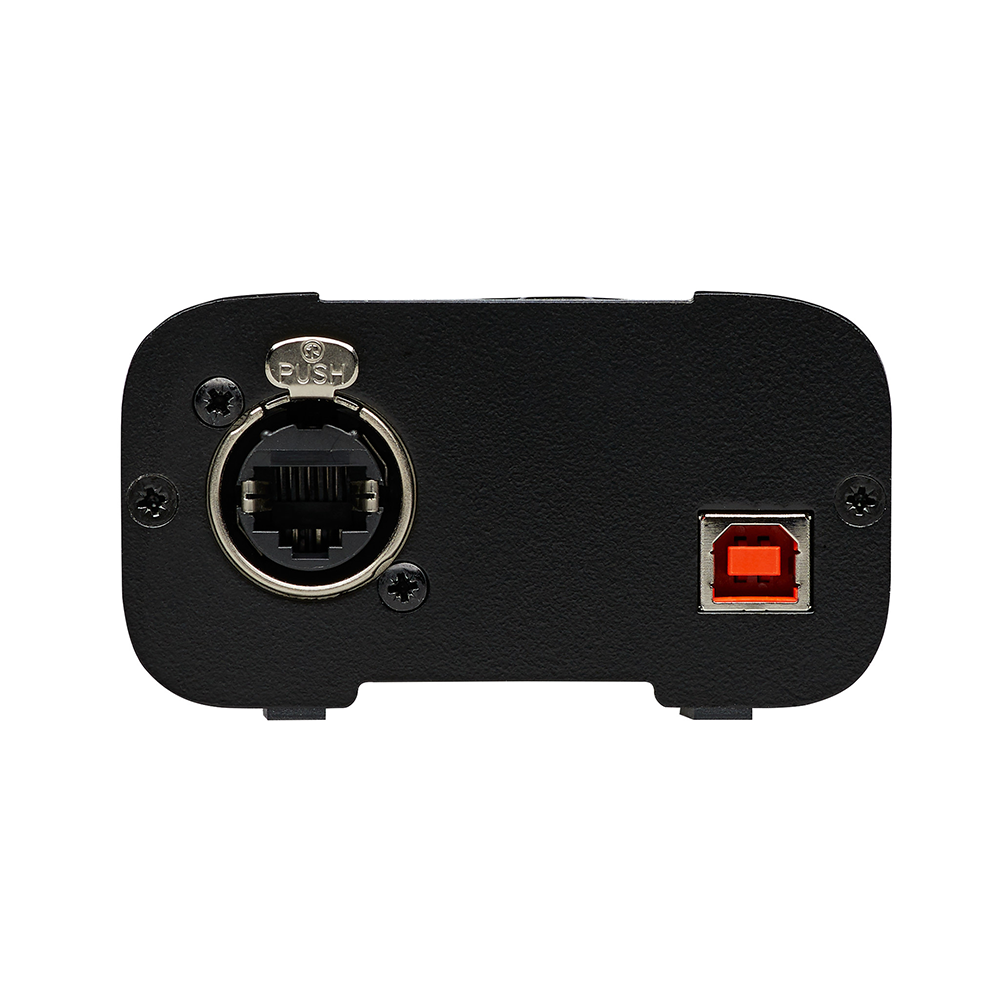

Type B USB female connection
Intuitive four-button interface
Onboard display for identification, status and configuration
Status and activity indicators
– Blue power indicator
– Green network activity indicator
– Red/Green USB activity indicator
Electrical

MIDI, SMPTE, Serial:
– 5 V USB power
Thermal

Ambient temperature: 0°–40° C (32°–104° F)
Ambient humidity: 5–95% non-condensing
Regulartory and Compliance

cETLus Listed
CE compliant
UKCA compliant
RoHS compliant
WEEE

Downloads

Data Sheet Download
