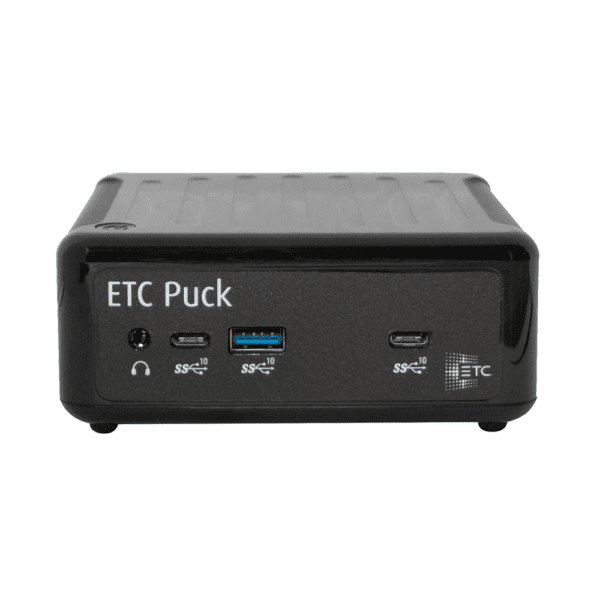

ETC – Puck

ETC

1K or 6K outputs This ETC-supported mini-PC can function as a cost-effective backup or standalone controller for small-scale rigs or as a client in your Eos system – whether as a remote programming station or a video interface.

SKU: N/A Categories: , , ,
Clear

Description

The ETC Puck lighting controller is a full-featured mini-computer with an embedded ETCnomad lighting control key capable of running Eos and Element applications. It provides lighting control with conventional and moving lights, media servers and LED luminaires. The ETC Puck lighting controller can be used in primary, backup, client and offline environments. Optional fader wings, programming wings, X-keys and compatibility with USB–MIDI panels allow extended and customizable control.

Features

  • Approachable yet powerful syntax for programmers of every level
  • Industry-leading color control tools
  • Magic Sheets for custom programming and displays
  • Augment3d 3D programming and visualization environment
  • Virtual Media Server function for pixel-mapping
  • Timecode and automation integration
  • Multi-user and multi-programmer working environment

Additional information

Weight 0.9 kg

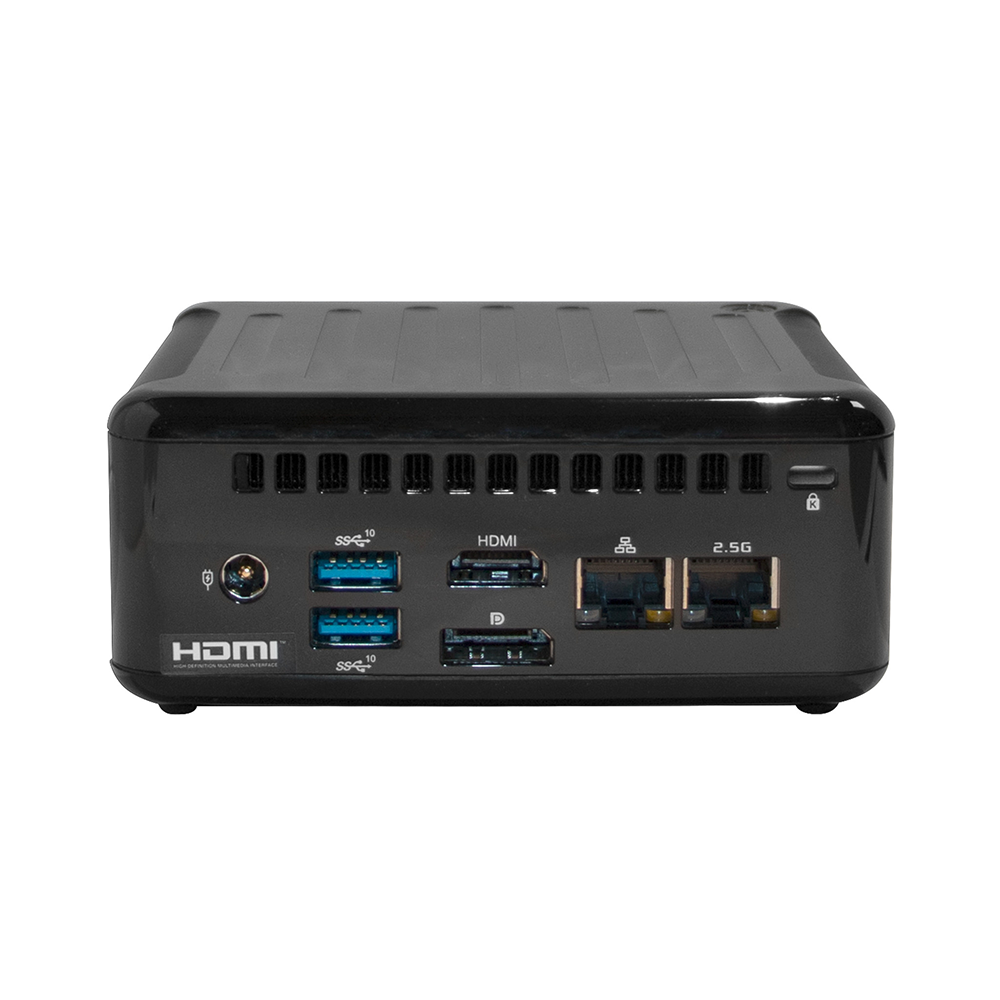

Hardware and Interfaces

Supports one external display port and one external HDMI monitors (1920×1080 minimum, 3840×2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
Solid-state hard drive
Power input (100-240 VAC at 50/60Hz), via included power supply and IEC NEMA 15 cord
Two individually configurable Gigabit Ethernet ports, RJ-45 connectors
One 802.11ax WiFi Ethernet adapter (to be enabled with future software)
Bluetooth 5.0 for connecting input accessories (to be enabled with future software)
sACN and Art-Net network output protocols
USB 3.1 ports, for flash drives, pointing devices, keyboards (3 USB-A ports, 2 USB-C ports)
One Kensington lock port
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
Electical and Thermal

Power consumption approximately 1.6 amps at 120V or 230/240V
Ambient room temperature 0°-35° C (32°-95° F)
Ambient humidity up to 90% non-condensing
Regulatory and Compliance

CE compliant
cULus listed
FCC compliant
RoHS compliant
WEEE

Downloads

Data Sheet Download
