ETC - Ministar front right of moving head fixture light on redETC - Ministar front right of moving head fixture light on red

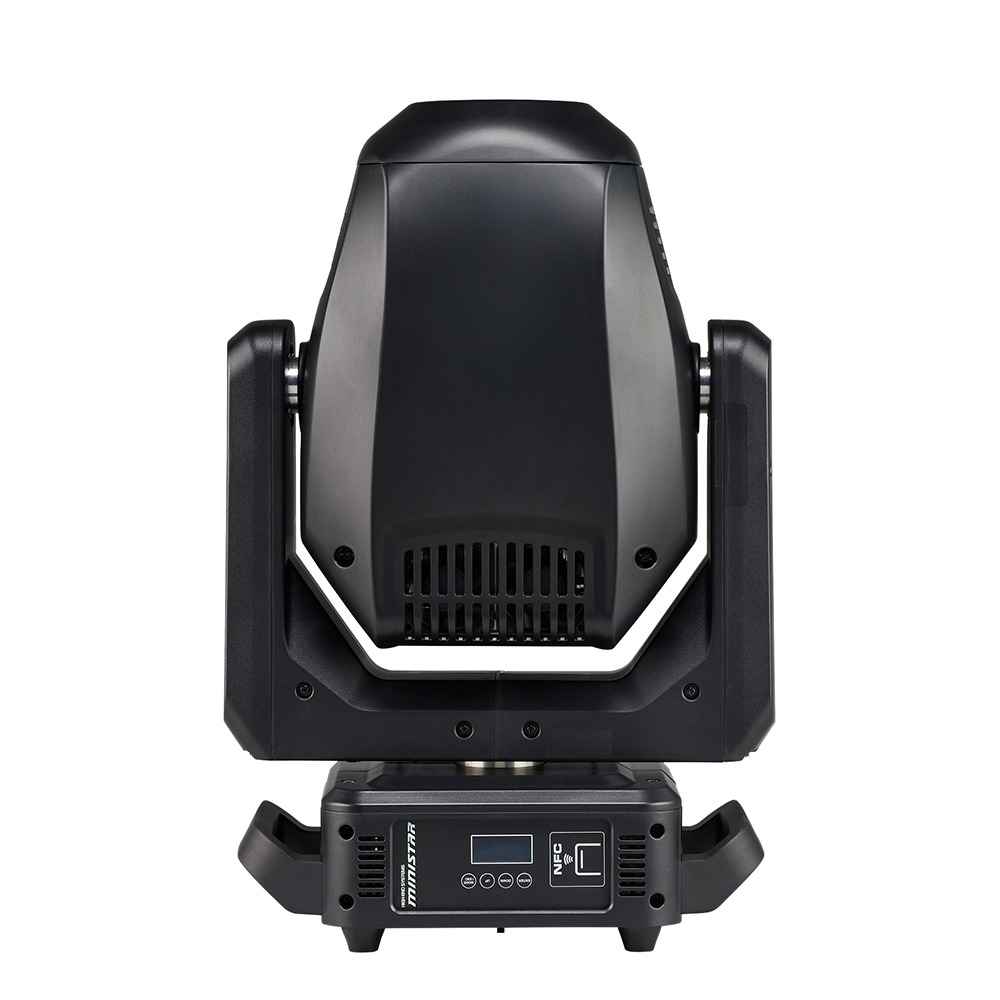

ETC – Ministar

ETC

Weighing in at just over 16kg the compact Ministar packs a 9,700 lm colour filled punch. For small to medium venues with a price point as stunning as its arial effects.

Categories: , ,

Description

The High End Systems Ministar is a bright and shining example of reduction without compromising. Ministar’s smaller size contains a broad variety of features all while outputting a blistering 9,700 lumens. Perfect for professionals at small to medium venues and where budget is a top priority, Ministar’s simple feature set includes a ton of variety and flair. Furthermore, the luminaire’s VersaColor capabilities use dual colour wheels to create 60 unique colours while QuadraTech can create split and quad colour effects for unmatched aerial and projection effects.

Features

  • Bright white LED engine
  • 300 W Ultra-Bright engine
  • Fixture output greater than 9,700 lumens
  • 6.5°–48° zoom
  • VersaColor – 60 unique colors spread across the entire color gamut, organized and presented via a single color control channel
  • QuadraTech – Splits the light beam into four distinct colors in 64 different combinations
  • Variable Medium diffusion
  • Six position plus open rotating gobo wheel with replaceable gobos
  • Nine position plus open fixed gobo wheel
  • Prism for compound beam and projection effects

Video

ETC Ministar

ETC introduces the High End Systems Ministar, a game-changer in our automated lighting product line. Ministar brings exceptional versatility and performance at an affordable price point; with a compact footprint, punchy output, and a professional feature set, Ministar fits the spec and budget for small to medium-sized venues.

Applictions

  • Nightclubs and concert venues
  • Theatre venues
  • Cruise ships and themed entertainment
  • Houses of worship
  • Production rental companies
  • Tradeshow and ballroom AV
  • Studio and film

Additional information

Source

Engine: Ultra-Bright
LED Details: 300 W
Max Integrating Sphere Lumens: 9,700 lumens
LPW: 31
LED Life: 50,000 hours
Native CCT: 7000 K

Colour

Colour Mixing: 60 unique colours mixed via dual colour wheels
Colour Temperature: 8000 K Native, Soft White, Warm White, Neutral White, and Full CTB
Colour Wheel: Two wheels with seven (7) colours on each

Optical

Beam Angle Range: 6.5°–48°
Gate Size: 21 mm
Aperture Size: 95 mm
Pattern Projection:
– Rotating and indexable wheel with six (6) interchangeable patterns plus open
– Fixed wheel with nine (9) non-interchangeable patterns plus open
Prism: Five‑facet star rotating prism
Diffusion: Linear insertable medium diffusion
Flicker Control/Hz Range: 2.4 kHz and 16 kHz

Control

Input Method: DMX (5-pin)
Protocols: DMX via RS-485
Modes (Footprint): Standard (31)
RDM Functions: Yes
UI Type: Simple text display with 4-button navigational control
Local Control: Yes
Dimming Performance: 16-bit, DMX-controlled

Electrical

Voltage Range: 100–240 V 50–60 Hz
Input Method: powerCON TRUE1 TOP
Listed Max Wattage: 450 W
Current (Max): 4.5 A @ 100 V
Inrush (First Half Cycle):
120 V: 26.8 A
230 V: 120.0 A
Fixtures per Circuit:
3 fixtures (15 A power thru connector)
4 fixtures (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)

Thermal

Ambient Operating Temp: -10°C–40°C (14°F–104°F)
Fan Mode: Standard, Studio, and Linear Continuous control channel

Physical

Pan and Tilt Range: 540° pan, 256° tilt
Max Pan/Tilt Speed: 360° in 1.70 s / 180° in 0.96 s
Materials: Steel and aluminium frame with molded plastic covers
Colour Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Weight: 16.2 kg (35.7 lb)
Included Accessories:
powerCON TRUE1 TOP to bare end fixture tail
Two (2) 107 mm, three-hole clamp brackets
Safety cable

Warranty

Fixture Warranty
Five (5) years for light engine
Two (2) years for complete fixture

Regulatory & Compliance

Approved regulatory standards:
cETLus Listed
Listed to UL 1573
Certified to CSA STD. C22.2 No: 166
CE Compliant
UKCA Compliant
Complies to the ROHS directive: Yes

Downloads

Data Sheet Download
