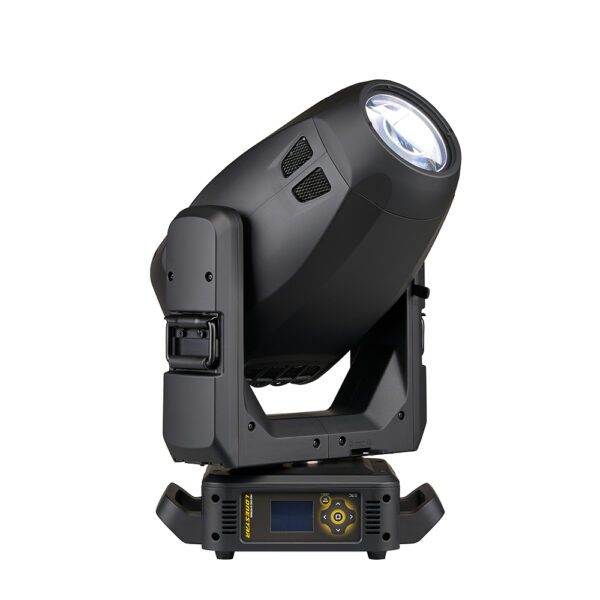

High end systems Lone star facing rightHigh end systems Lone star facing right

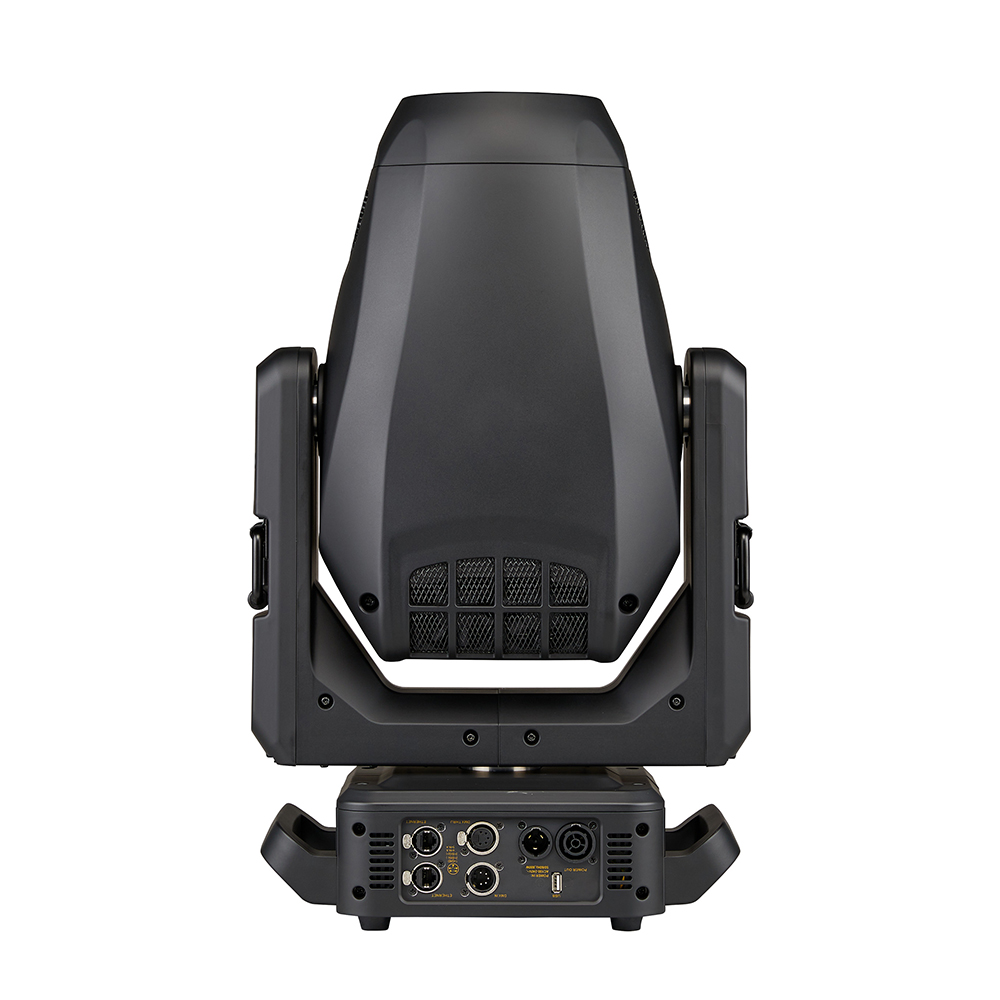

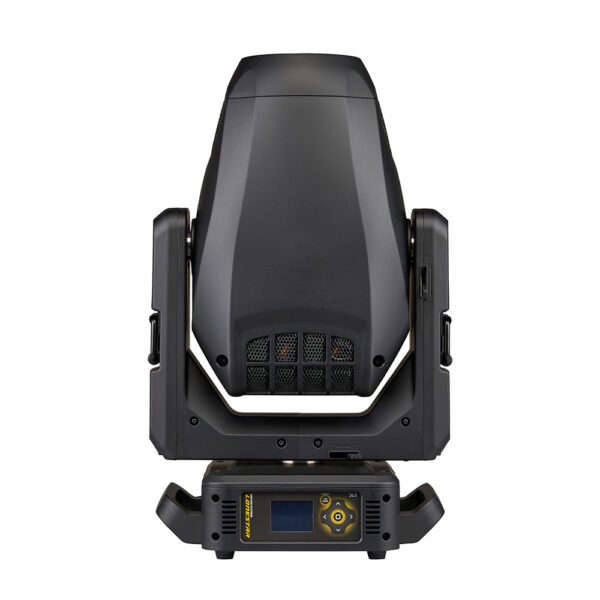

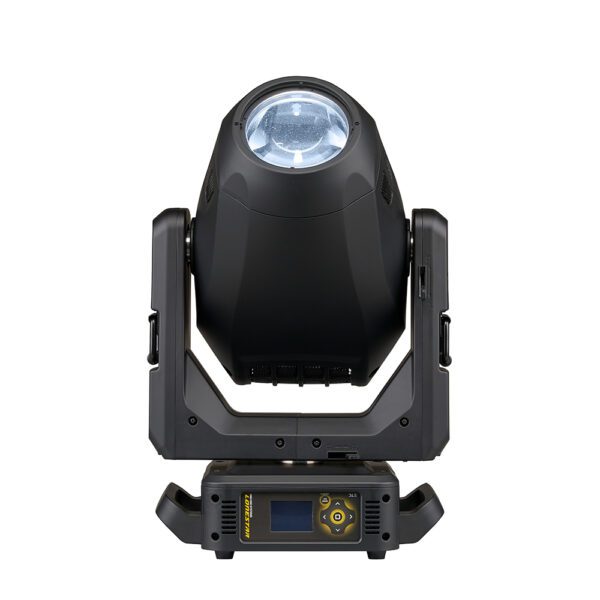

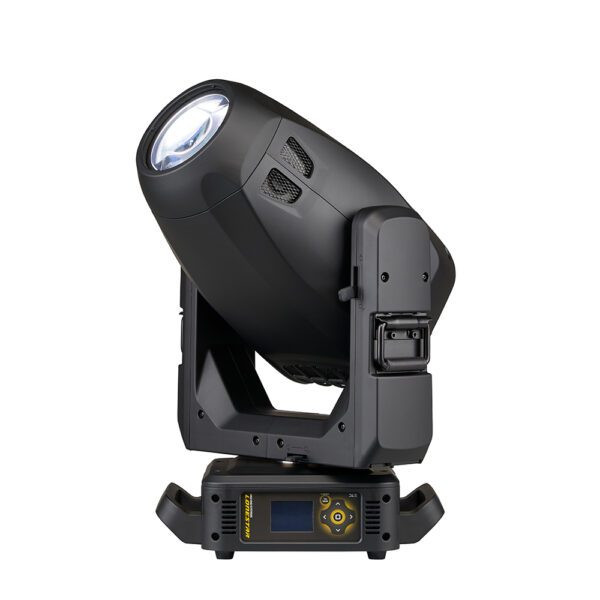

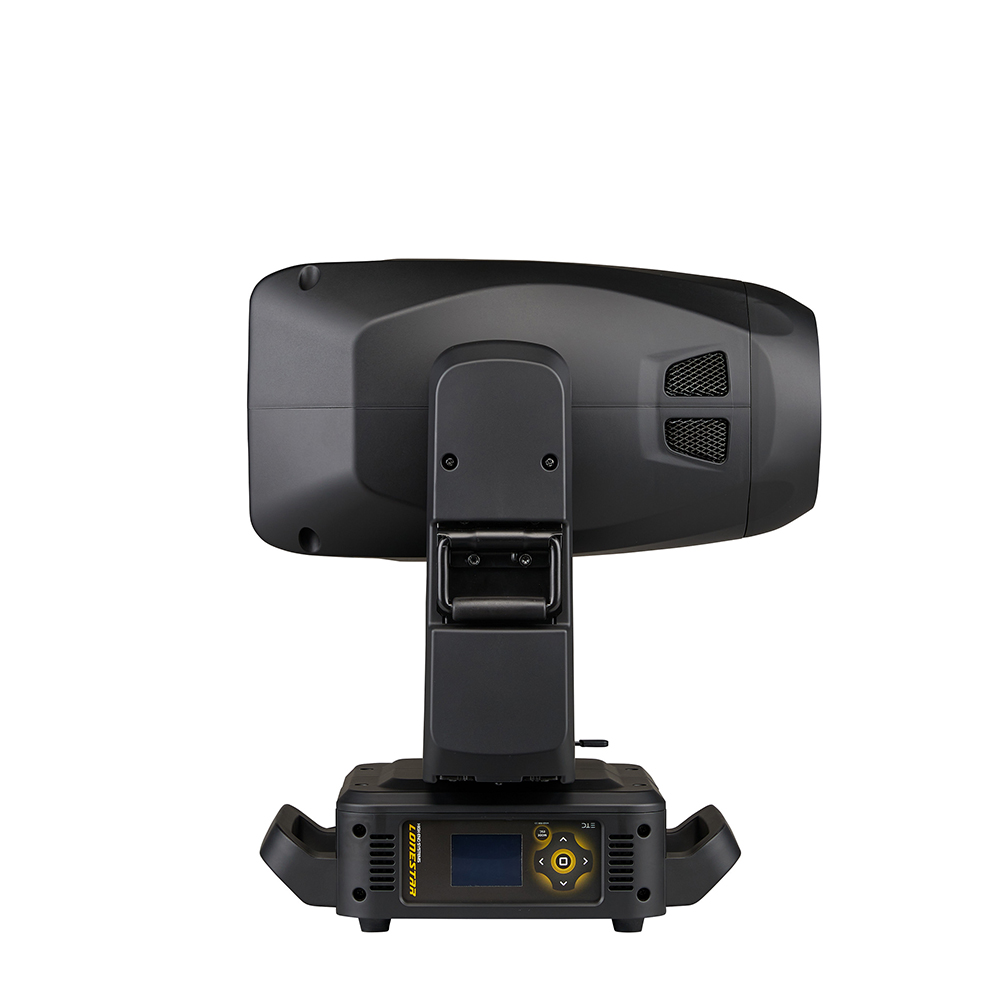

ETC – Lonestar – High End Systems

ETC

Renowned brightness, quality, and performance of ETC’s bright white LED framing fixtures in a more compact package.

Description

The High End Systems Lonestar brings the renowned brightness, quality, and performance of ETC’s bright white LED framing fixtures in a more compact package. With more than 15,400 lumens and a rich feature set, Lonestar is a perfect addition to lighting systems in theatres, television studios, cruiseships, and other small to mediumsized venues. The luminaire’s rich colours, powerful zoom, full curtain framing, diffusion, and prism effects make Lonestar a versatile and affordable tool for designers who want maximum performance from a compact-sized automated fixture.

Features

  • Colour: CMY + Colour Wheel + Linear Digital CTO
  • Gobos: 9 Rotating
  • LED Engine: 290W Ultra-Bright
  • Weight: 23Kg/50lb
  • Output: 15,400 Lumens
  • Zoom: 3.8°-55°
  • Diffusion: Light + medium + optical heavy frost
  • Prism: 5-facet star + 4-facet linear
  • Animation: Rotating

Video

ETC Lonestar

Lonestar brings the renowned brightness, quality and performance of High End Systems bright white LED framing fixtures in a more compact package. With 15,400 lumen output and a rich feature set, it is a perfect addition to any lighting system.. The rich colours, powerful zoom, full curtain framing, diffusion and prism effects make it a versatile and affordable tool for designers who want maximum performance from a mid-sized automated fixture.

Output

Offering punchy 15,400 lumen output from its Bright White LED engine, Lonestar delivers high brightness and visual impact to any stage.

Colour

With seamless CMY mixing, linear CTO plus fixed colour wheel for the purest saturated colours available, all your needs are covered.

Shaping

Lonestar’s full curtain framing shutters allow precise, repeatable beam shaping; put the light where you want it, and never where you don’t.

Patterns

Shape your stage with Lonestar’s nine rotating patterns. Animation wheel, plus dual frosts and prisms produce limitless morphing and texture layering options.

Beams

Build structure in the air with Lonestar’s beams. The 3.5 – 55 degree zoom range creates powerful narrow beams to wide washes and everything in between.

Additional information

Source

Engine: Ultra-Bright
LED Details: 290 W
Field Lumens: See photometrics on page 4
Max Integrating Sphere Lumens: 15,400 lumens
LPW: 53
LED Life: 50,000 hours
Native CCT: 7000 K

Colour

Color Mixing: Cyan, magenta, yellow, CTO-linear
Color Temperature: Variable down to 2200 K
Color Wheel: Ten (10) dichroic colors plus open

Optical

Beam Angle Range: 3.8°–55°
Gate Size: 15.8 mm
Aperture Size: 120 mm
Pattern Projection: Rotating and indexable wheel with nine (9) patterns plus open
Animation: Bi-directional animation wheel
Prism: Five facet star and four facet linear rotating prism with simultaneous insertion
Diffusion: Light and medium diffusion Optional heavy diffusion in prism slot
Iris: 16-blade iris
Framing: Four-plane, full-curtain framing system with 120° module rotation
Flicker Control/Hz Range: 2.4 kHz and 16 kHz

Control

Input Method: DMX (5-pin) or Ethernet
Protocols:
DMX via RS-485
Art-Net or sACN via Ethernet
Ethernet Pass-Thru: Passive Ethernet in and thru with and without power
Data Conversion:
Patented data conversion system for:
DMX to Ethernet
Ethernet to DMX
Modes (Footprint): Standard or Trifusion (48 channels)
RDM Functions: Yes
UI Type: Full color graphical UI with 6-button navigational control
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled

Electrical

Voltage Range 100–240 V 50–60 Hz
Input Method powerCON TRUE1 TOP
Wattage (Standard) 615 W
Current (Max) 6.2 A @ 100 V
Inrush (First Half Cycle) 120 V: 56.8 A
230 V: 78.0 A
Fixtures per Circuit
2 fixtures (15 A power thru connector)
3 fixtures (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)

Thermal

Ambient Operating Temp: -10°–40°C (14°–104°F)
Fan Mode:
Standard, Studio, and Linear Continuous control channel
Stationary Noise: TBD

Physical

Pan and Tilt Range: 540° pan, 251° tilt
Max Pan/Tilt Speed: 360° in 2.306 s/180° in 1.26 s
Materials: Steel and aluminum frame with molded plastic covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Weight: 22.7 kg (50 lb)
Included Accessories:
powerCON TRUE1 TOP to bare end fixture tail
Two (2) clamp brackets
Safety cable
