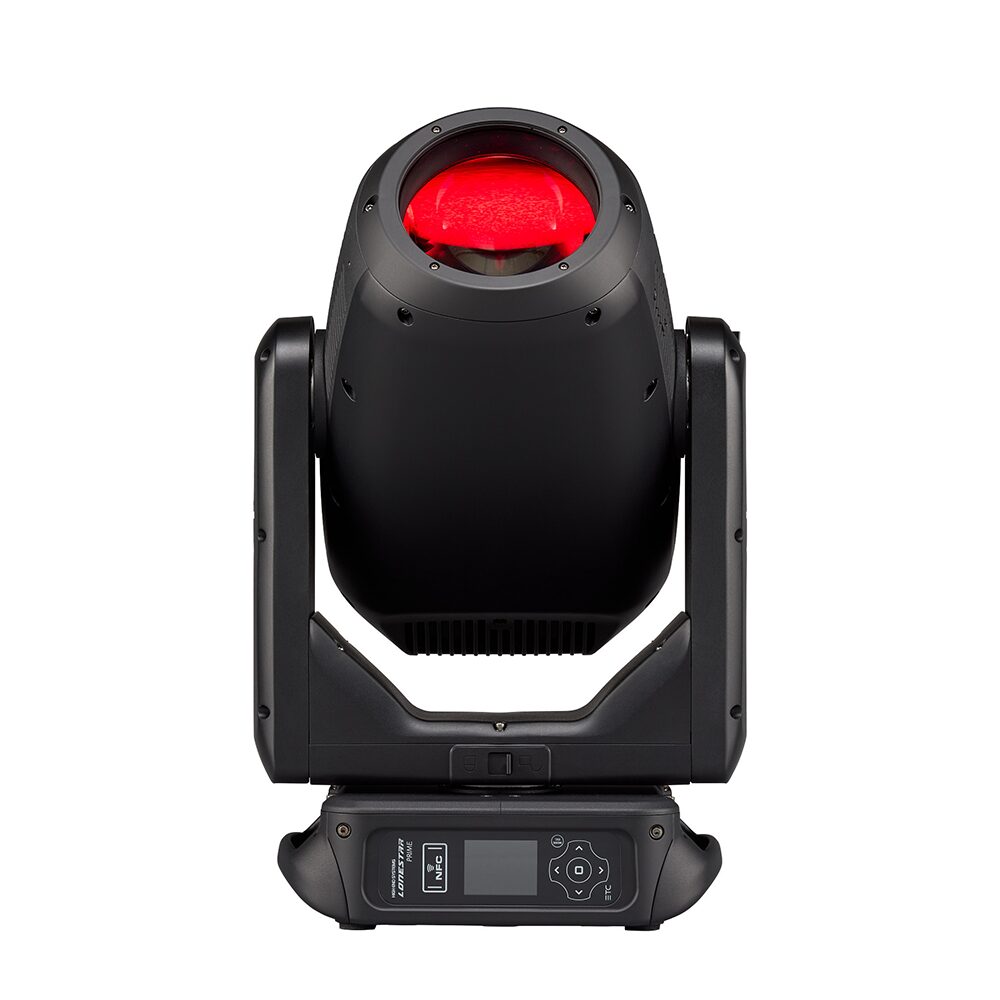

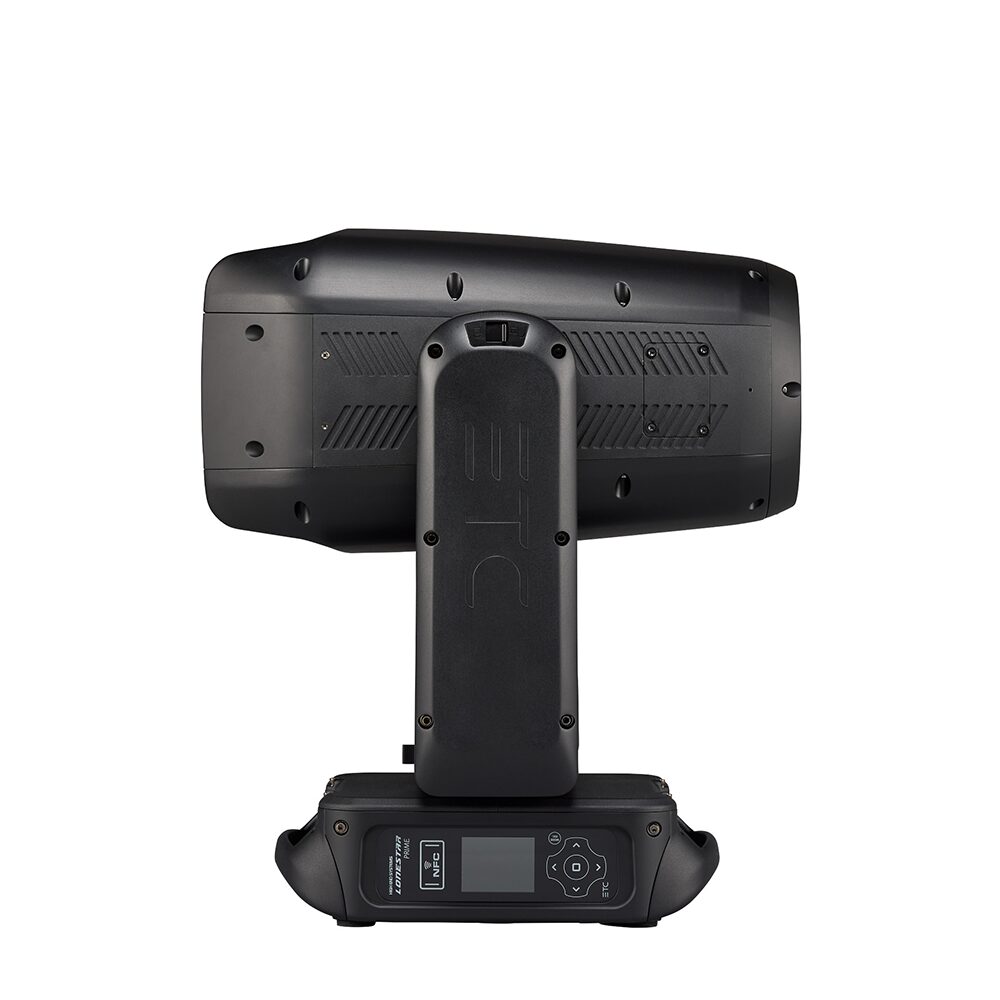

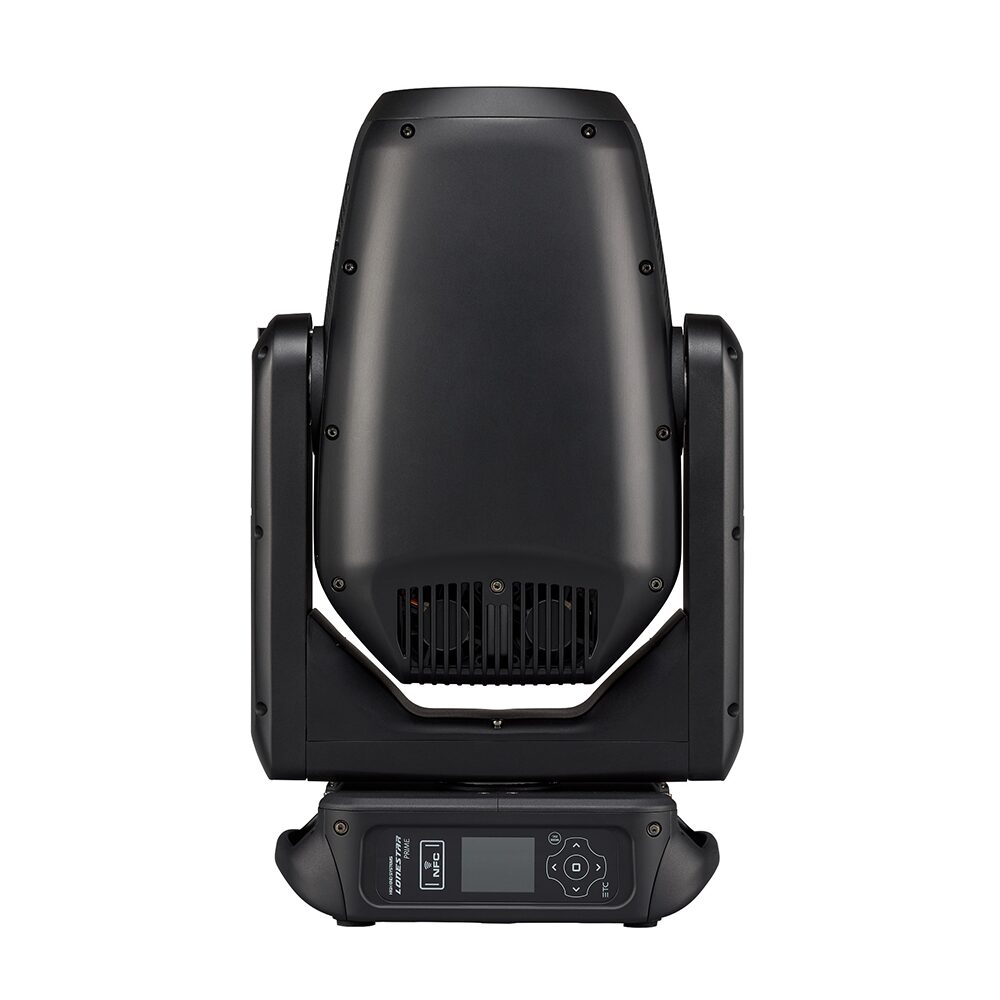

ETC – Lonestar Prime High End Systems

ETC

Lonestar Prime is 20% brighter than Lonestar, with an even more compact fixture body. An additional 10 fixed gobos along with a CTO flag further enhance design possibilities. Weather-rated with an IP54 rating, Lonestar Prime is an ideal automated framing fixture for indoor and outdoor events that expect the most out of a small sized fixture.

Features

  • Extra Bright Color Boost (EBCB) white LED engine
  • 350 W engine
  • Fixture output exceeding 17,000 lumens at native 80 CRI
  • High quality 13-lens optic system
  • Extremely powerful 3.8°–55° zoom
  • Dual Flag CMY color mixing system with CTO wheel
  • Ten-position plus open color wheel
  • Full-curtain framing system for total control of beam shaping
  • 16-blade iris for extremely tight beam effects
  • Two diffusion levels, light and medium, with variable insertion and no zoom or focus interference
  • Nine-position plus open Rotating Gobo Wheel
  • Ten-position plus open Fixed Gobo Wheel
  • Dual prisms with simultaneous insertion for beam and projection effects
  • Rotating Animation Wheel with linear positioning and angular control
  • Optional RigPOV camera kit provides livestream NDI feed from the fixture’s perspective

Now compatible with City Theatrical Multiverse

SKU: ETCLS-P Categories: , , ,

Description

Lonestar Prime is a framing fixture boasting exceptional brightness and professional features in a compact package. With its weatherproof design, Lonestar Prime is ideal for broad-purpose rental applications and venues that are working either inside or outside. Its 17,000+ lumen output, enhanced color rendering, dedicated CTO flag, robust gobo library, and more, make Lonestar Prime a high-impact tool for all kinds of live events.

Applications

  • Rental
  • Events
  • Award Shows
  • Outdoor Festivals
  • Schools
  • Theatres
  • Lecture Halls
  • TV Studios
  • House of Worship

Video

ETC Lonestar Prime

High End Systems Lonestar Prime takes the legendary qualities of Lonestar and improves them, while adding bonus features. Weather-rated with an IP54 rating, it’s an ideal automated framing fixture for indoor and outdoor events that expect the most out of a small sized fixture.

Additional information

Source

Engine: Extra Bright Color Boost white LED engine
LED Details: 350 W
Field Lumens: See photometrics on page 4
Max Integrating Sphere Lumens: 17,000
LPW: 48
LED Life: 50,000 hours
Native CCT: 6500 K
Color

Color Mixing: Cyan, magenta, yellow, and CTO
Color Temperature: Variable down to 2700K
Color Wheel: Ten (10) dichroic colors plus open
Optical

Beam Angle Range: 3.8°–55°
Gate Size: 16 mm
Aperture Size: 140 mm
Pattern Projection:
-Rotating and indexable wheel with nine (9)
interchangeable patterns plus open
-Fixed wheel with ten (10) fixed and stamped
patterns plus open
Animation: Bi-directional rotating animation wheel with
linear insertion, and variable angle
Prism: Five-facet star and four-facet linear rotating
prism with simultaneous insertion
Diffusion:
-Light and Medium diffusion with variable
insertion with no effect on focus or zoom
-Optional Heavy diffusion available for Prism slot
Iris 16-blade iris
Framing: Four-plane, full-curtain framing system with
180° module rotation
Flicker Control/Hz Range: 2.4 kHz, 16 kHz, and 25 kHz
Control

Input Method: DMX (5-pin) or Ethernet
Protocols: DMX via RS-485 Art-Net or sACN via Ethernet
Ethernet Pass-Thru: Passive Ethernet in and thru with and without power
Data Conversion: Patented data conversion system for Ethernet to DMX
Modes (Footprint): Standard (52 channels), Trifusion Protocol (52 channels)
RDM Functions: Yes
UI Type: Full-color graphical UI with 6-button navigational control NFC Configuration
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Wireless: Multiverse via optional MV-Mount Adaptor
and Multiverse Connect Module (CT-5914)
Electrical

Voltage Range: 100–240 V 50–60 Hz
Input Method: REAN® power X Series Connectors
Wattage 550 W
Current (Max):
5.9 A @ 100 V
2.3 A @ 240 V
Inrush (First Half Cycle):
120 V: 37 A
230 V: 51 A
Fixtures per Circuit:
3 fixture (R20 module or similar)

Note: REAN power X Series connector rated
for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
Thermal

Ambient Operating Temp: -10°C to 35°C (14°F to 95°F)
Fan Mode Standard, Studio, and Linear Continuous
control channel
Stationary Noise:
Standard – 36.6 dBA
Studio – 35.8 dBA
Lowest settable fan setting – 27.5 dBA
All tests at 18.4 dBA background noise
Physical

Pan and Tilt Range: 630/540° pan, 260° tilt
Max Pan/Tilt Speed: 360° in 1.62 s/180° in 0.88 s
Materials: Steel and aluminum frame with aluminum and molded plastic covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP54, for use both indoors and in temporary
outdoor installations
Weight: 23.1 kg (51 lb)
Included Accessories:
X Series IP65 to bare end fixture tail
Two (2) 107 mm single-hole Omega brackets
Safety cable
Warranty

Warranty Details: https://www.etcconnect.com/Warranty/
Regulatory & Compliance

Approved regulatory standards:
cETLus Listed
Listed to UL 1573
Certified to CSA STD. C22.2 No: 166
CE Compliant
UKCA Compliant
CB Certified
Complies to the ROHS directive: Yes
Safety

Minimum distance to illuminated
surface = 2.0 m (6.6 ft)
Minimum distance from fixture head to
combustible materials = 0.1 m (4.0 in)

Downloads

Data Sheet Download
