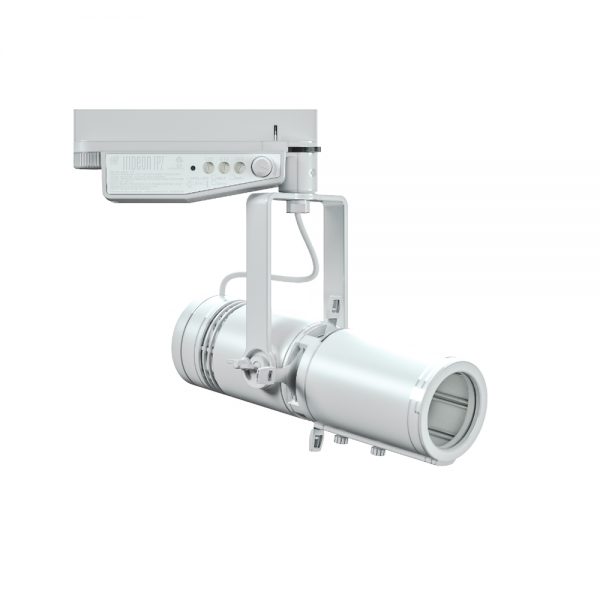

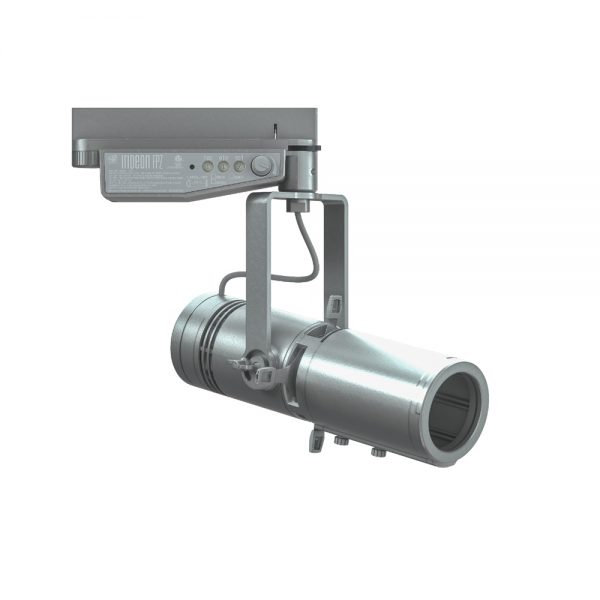

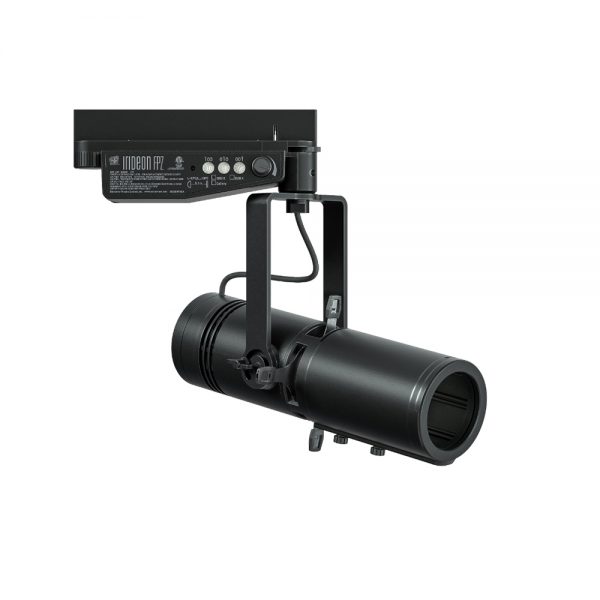

ETC – Irideon FPZ

ETC

LED framing projector with zoom optics that provides the highest quality beam.

SKU: N/A Categories: , , ,
Clear

Description

Irideon FPZ pairs the best of the Source Four Mini LED platform with exceptional output and a sleek industrial design to light your space with elegance and subtlety. Available for use with the ETC DataTrack system, the feature-rich design is perfect for museums, lobbies, and retail environments.

Truly a Source Four fixture at heart, Irideon FPZ boasts its own set of enhancements such as lockable 3-plane shutters, zoom optics, and the ability to dim using either DMX or a local dimming knob located on the DataTrack adapter. But the beam is still everything you expect and more; Irideon FPZ puts out over 800 lumens, 33% brighter than Source Four Mini LED and every bit as pleasing to the eye with a wide selection of color temperatures.

FPZ gives you the versatility you need to create the beautiful light you want from an integrated, unassuming design that won’t dominate your space.

Features

  • Rugged fixture body
  • 25–50 degree zoom optics
  • Uniquely efficient optical system
  • Three-plane shutters
  • DMX control with built-in intensity trim feature
  • DALI or 0–10 V control option availabe for canopy version
  • Dimming to less than 1% of maximum output
  • Available in black, white and silver
    • Custom paint colors available; contact ETC

Aplications

  • Museums
  • Retail stores
  • Restaurants
  • Hospitality/Lobbies
  • Theatres

Video

ETC Irideon® FPZ – Lighting with distinction

Join ETC fixture product manager Jim Uphoff for a tour of the Irideon® FPZ, a sleek, powerful architectural LED fixture from ETC.

Additional information

Weight 2.5 kg
Source

LED details: Cree XLamp® MT-G2 EasyWhite® LED
Max field lumens: 904
Lumens per watt: 45.2
L70 rating (hours to 70% output): 46,000 hours
Array/Temperature

Colors used: White
Color temperature options: 2700K / 3000K / 4000K / 5000K
Calibrated array: No
Red shift: No
Optical

Beam angle range: 25°–50°
Pattern projection: Yes
Pattern size E: (37.5 mm with a 25.4 mm image area)
Front magnetic media holder: Accommodates 66 mm (2.6 in) diameter color media, diffusion or glass with a maximum thickness of 1.75 mm
Camera flicker control/Hz range:
1.2 kHz (standard)
25 kHz (DMX version only-set via RDM)
Notes: Projector-quality, high-contrast lenses Beam edge is continually adjustable hard to soft
Electrical

Voltage range:
100–120 V 50/60 Hz (Portable/Track)
230–240 V 50/60 Hz (Portable/Track)
120–277 V 50/60 Hz (Canopy)
Power cord length (portable variant only): 190 cm (75 in)
Control input options:
DMX – Portable, Track, Canopy
0–10 V – Canopy only
DALI – Canopy only
Track Adaptor (Track variant only):
120 V – Datatrack
240 V – EUTRAC 3-circuit + Data bus
Wattage Typical/Standby: 20 W typical, 24 W max
Inrush (first half-cycle) with DMX variant:
120 V – 11 A
240 V – 24 A
277 V – 28 A
Inrush (first half-cycle) with 0–10V or DALI variant:
120 V – 2 A
240 V – 5 A
277 V – 6 A
Fixtures per circuit with
DMX variant
45 fixtures (R20 module or similar)
Fixtures per circuit with
0-10V or DALI variant
90 fixtures (R20 module or similar)
Controls

Protocols:
DMX – Portable, Track, Canopy
0–10 V – Canopy only
DALI – Canopy only
RDM configuration: Yes (DMX version only)
UI type: Rotary pots
Local control: Yes
Thermal

Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): No fan
dB range: N/A
BTUs/hour: 68.24 typical, 81.88 max
Physical

Materials: Die-cast aluminum (A380 grade)
Color options: Black, white, silver, or custom color
Mounting options: Track, Portable, Canopy
IP rating: IP20
Weight:
Track Mount: 1.93 kg (4.25 lb)
Portable: 2.55 kg (5.62 lb)
Canopy: 2.58 kg (5.70 lb)
Included accessories (portable only):
Steel yoke, C-clamp (not included with CE version)
Included accessories (DMX canopy only):
Screw-terminal DMX connector kit
Notes:
Tool-free beam adjustment
Locking, full hard shutters in a triplane assembly
Accessory slot for E-size holder
Thermally insulated knobs and shutter handles
Magnetically held media holder

Downloads

Data Sheet Download
