ETC – Ion Xe 20 Console

ETC

Expanded hands-on control

SKU: N/A Categories: , , ,
Clear

Description

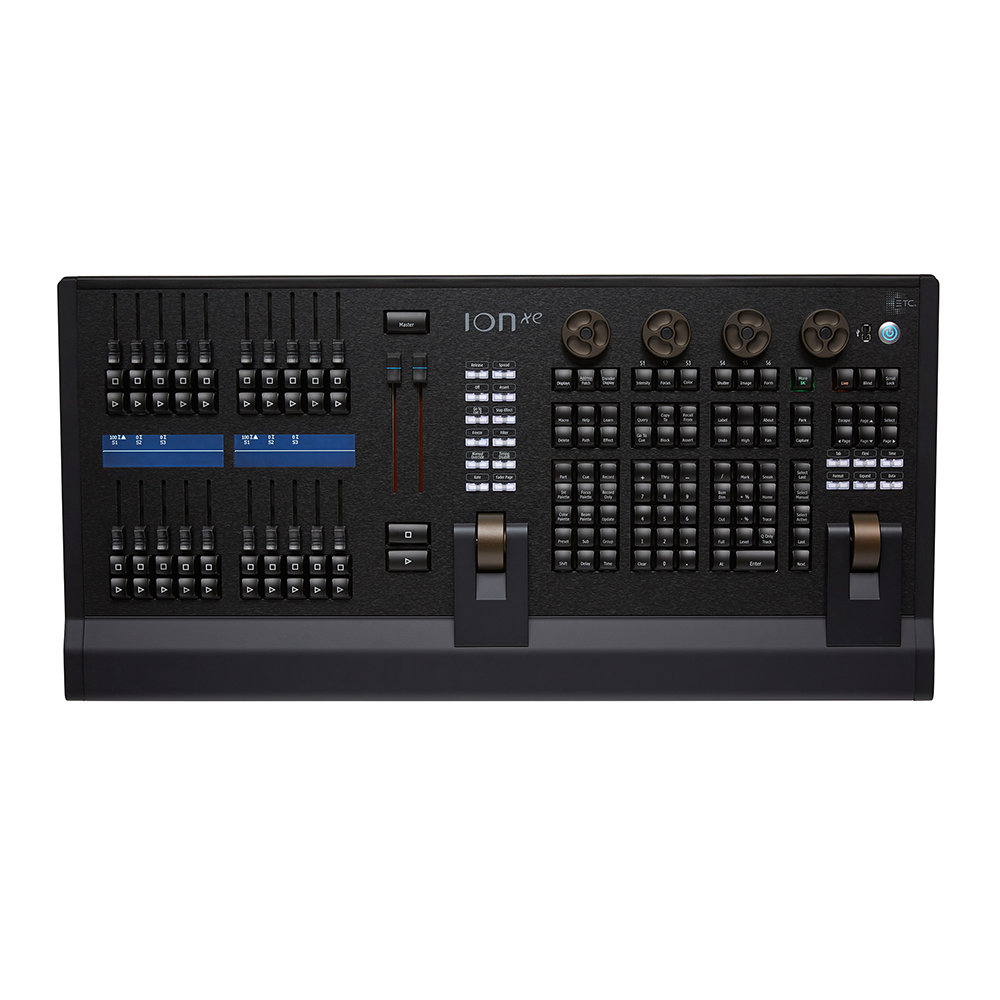

Ion Xe 20 is a compact console that includes programming and playback controls. In addition to the backlit keyboard and full-featured software that are a part of other Eos Family consoles, Ion Xe 20 also has twenty non-motorized faders and dedicated displays to easily run control manually.

Features

  • Approachable yet powerful syntax for programmers of every level
  • Industry-leading color control tools
  • Magic Sheets for custom programming and displays
  • Augment3d 3D programming and visualization environment
  • Virtual Media Server function for pixel-mapping
  • Timecode and automation integration
  • Multi-user and multi-programmer working environment

Additional information

Hardware & Interfaces

Supports two external display port monitors (1920×1080 minimum, 3840×2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
20 45mm standard faders, 100 10-fader pages configurable as channels, submasters, palettes/presets, timing and effect rate/speed playback control
Two internal monochromatic LCD displays for fader content
Main Playback with two 100mm standard faders
Four encoders for non-intensity parameter control
Dedicated high-resolution intensity level wheel
Backlit Eos keypad
Included USB keyboard
Solid-state hard drive
IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
Two individually configurable Gigabit Ethernet ports, RJ45 connectors
One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
sACN and Art-Net network output protocols
Four DMX-512 / RDM 5-pin XLR ports
Contact closure triggers via D-Sub connector
USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
One Littlite XLR port
One Kensington lock port
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
Electrical and Thermal

Power consumption approximately 2 amps at 120V or 230/240V
Ambient room temperature 0°-35° C (32°-95° F)
Ambient humidity up to 90% non-condensing
Regulatory and Compliance

CE Compliant
cETLus listed
UKCA marked
FCC compliant
RoHS compliant
WEEE
